Products Description

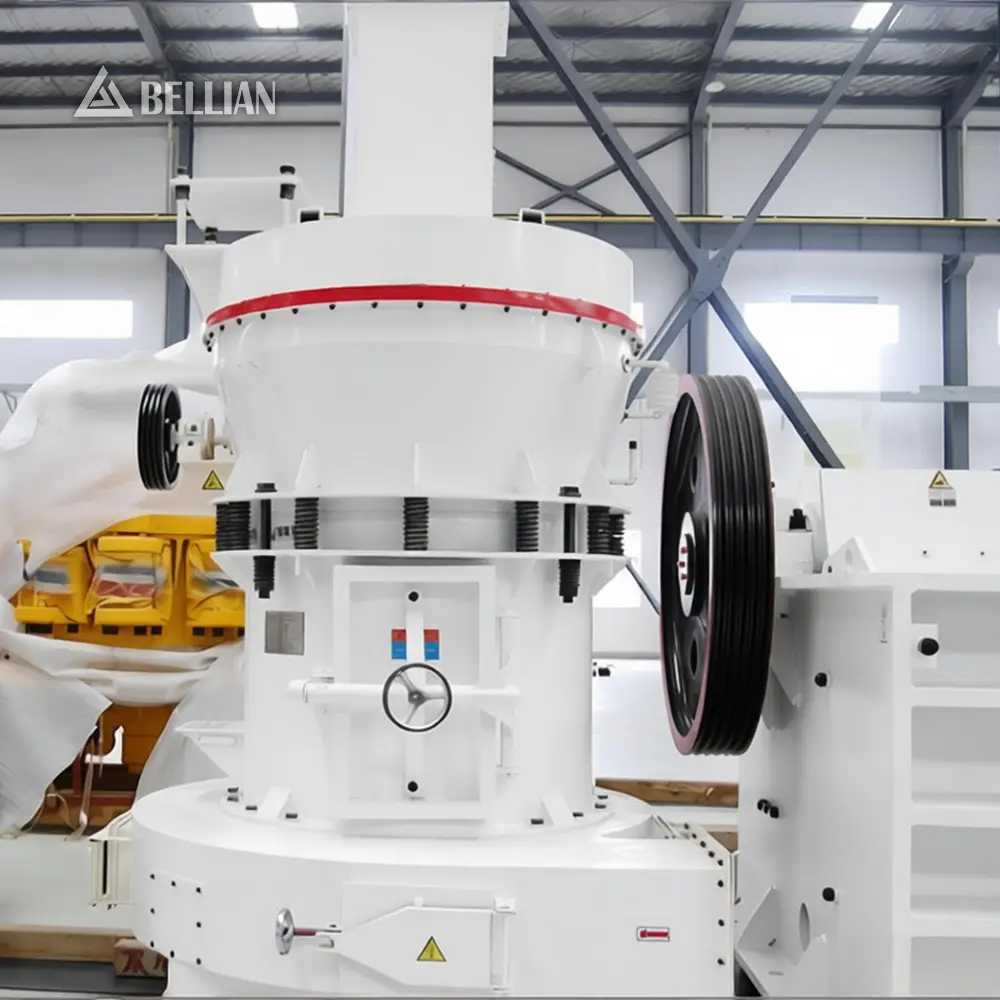

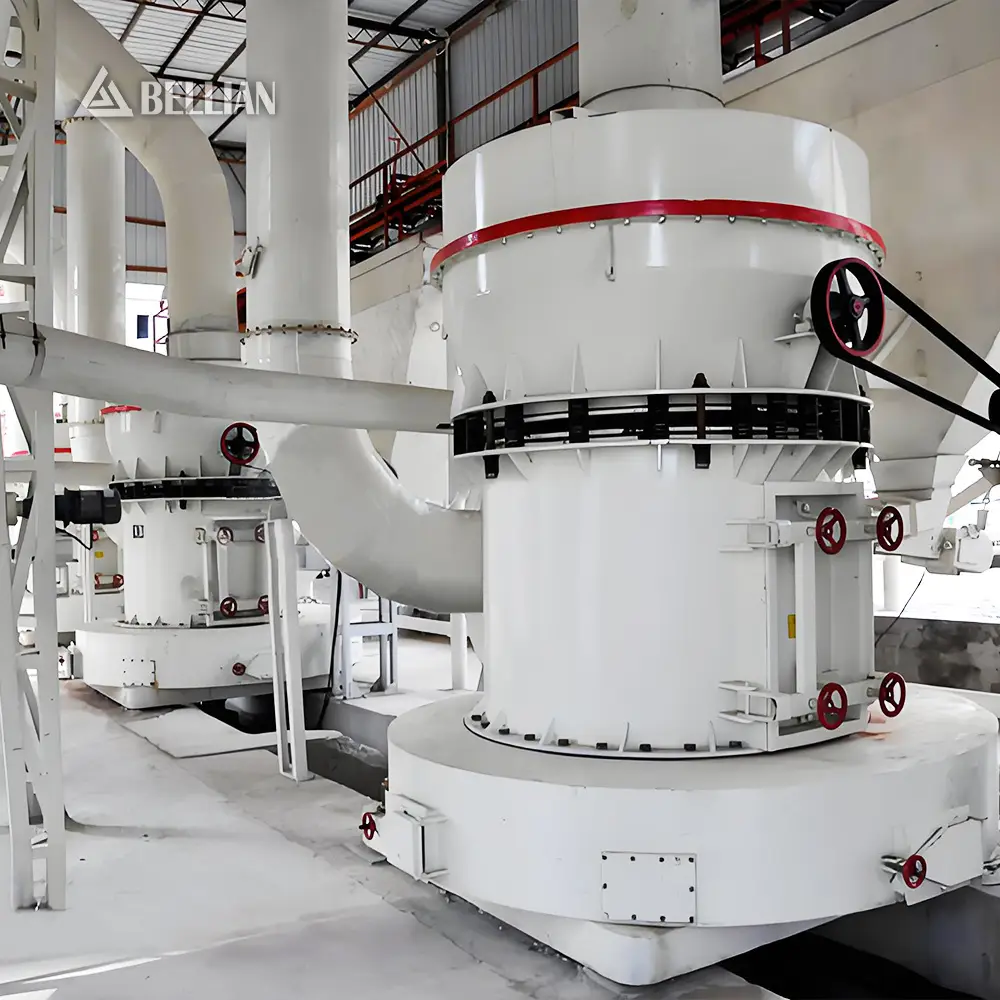

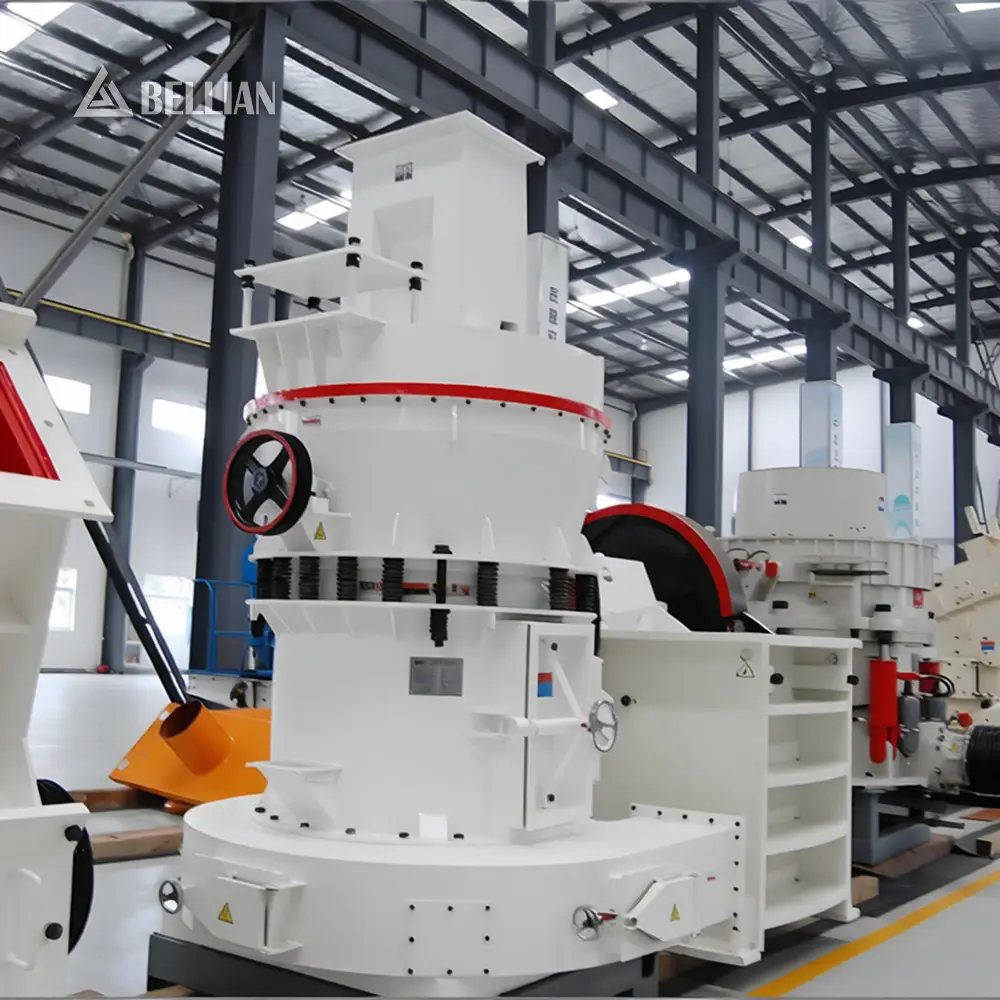

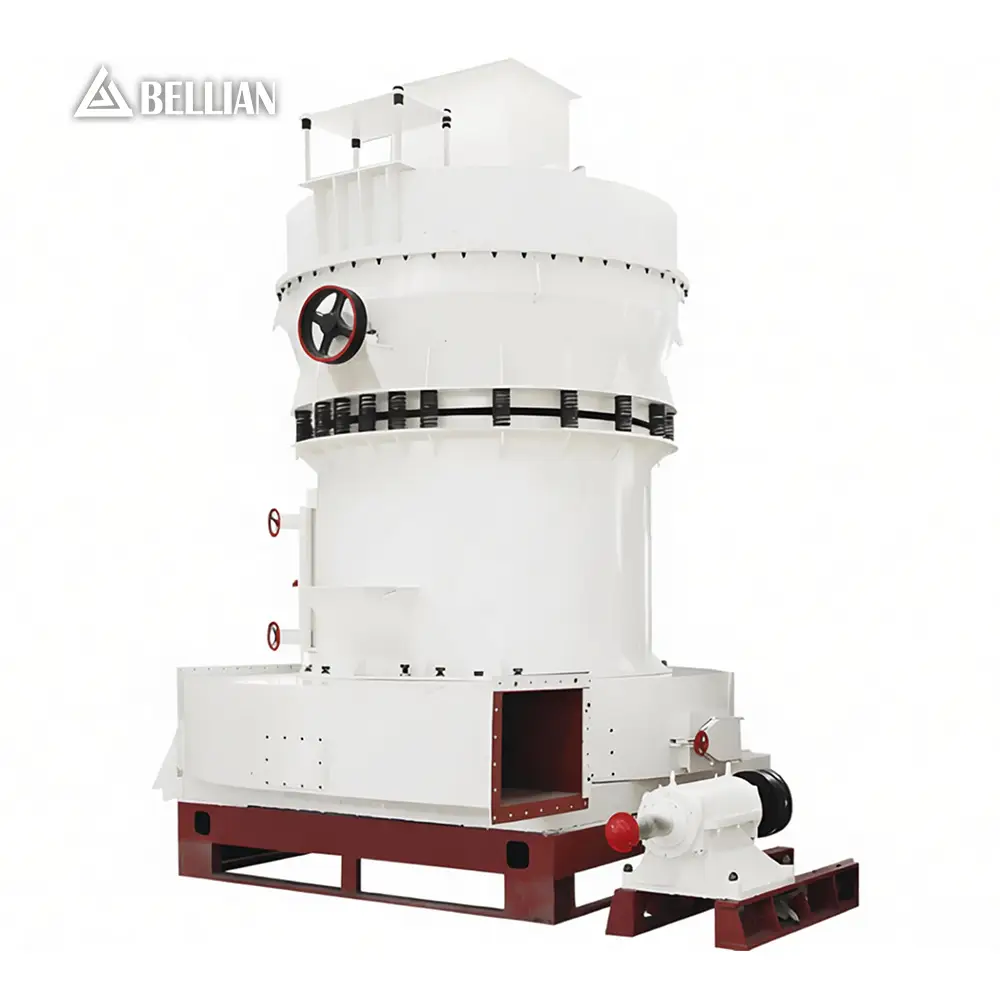

Bellian YGM High Pressure Suspension Mill is an improved version of traditional Raymond Mill, which adds high pressure spring device to increase the grinding pressure by 800-1200kg. It can grind harder materials that traditional Raymond Mill cannot grind, and the output is increased by 20-30% under the same power. It is widely used in mining, metallurgy, chemical industry, building materials and other industries for grinding various medium-hard and hard materials.
Working Principle
The working principle of YGM High Pressure Suspension Mill is similar to that of traditional Raymond Mill, but with the addition of high pressure spring device. When the machine works, the grinding rollers rotate around the central axis and also rotate around the grinding ring under the action of centrifugal force and high pressure spring. The grinding pressure is increased by 800-1200kg compared with traditional Raymond Mill, which can grind harder materials. The ground powder is blown up by the blower and classified by the analyzer, and the qualified powder is collected.
Performance Features
High pressure spring device, grinding pressure is increased by 800-1200kg, can grind materials with Mohs hardness up to 9
Compared with traditional Raymond Mill, the output is increased by 20-30% under the same power, improving production efficiency
Wear-resistant parts are made of high manganese steel, strong wear resistance, long service life
Equipped with high-efficiency pulse dust collector, no dust pollution, meeting international environmental protection standards
The fineness of finished products can be adjusted freely between 80-400 mesh, and the product quality is stable
Simple structure, easy operation and maintenance, low operation cost
Technical Specifications
| Model | Number of Grinding Rollers | Inner Diameter of Grinding Ring (mm) | Power of Main Motor (kW) | Capacity (t/h) | Finished Size (mesh) |
|---|---|---|---|---|---|
| YGM75 | 3 | 750 | 18.5 | 1-3 | 80-325 |
| YGM85 | 3 | 850 | 22 | 2-5 | 80-325 |
| YGM95 | 4 | 950 | 37 | 3-8 | 80-400 |
| YGM130 | 4 | 1300 | 75 | 8-15 | 80-400 |
| YGM160 | 5 | 1600 | 132 | 15-25 | 80-400 |
Application Scenarios

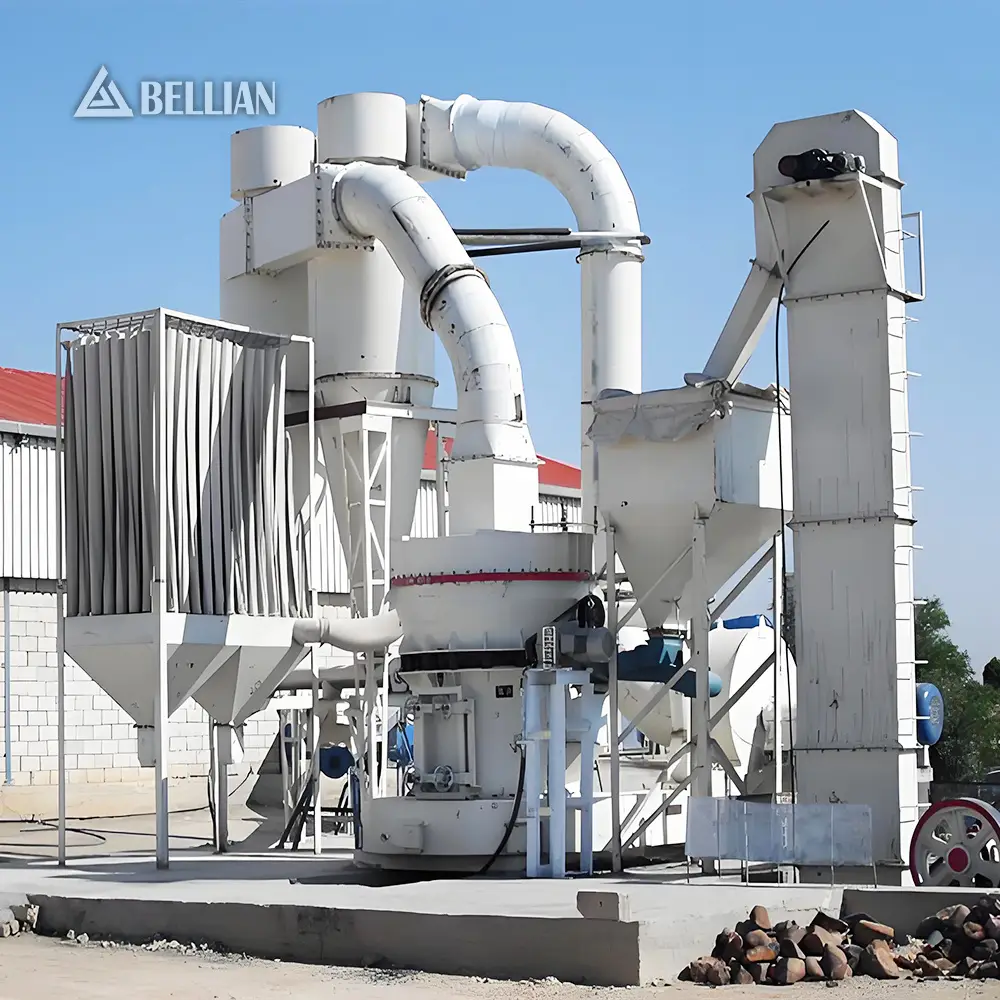

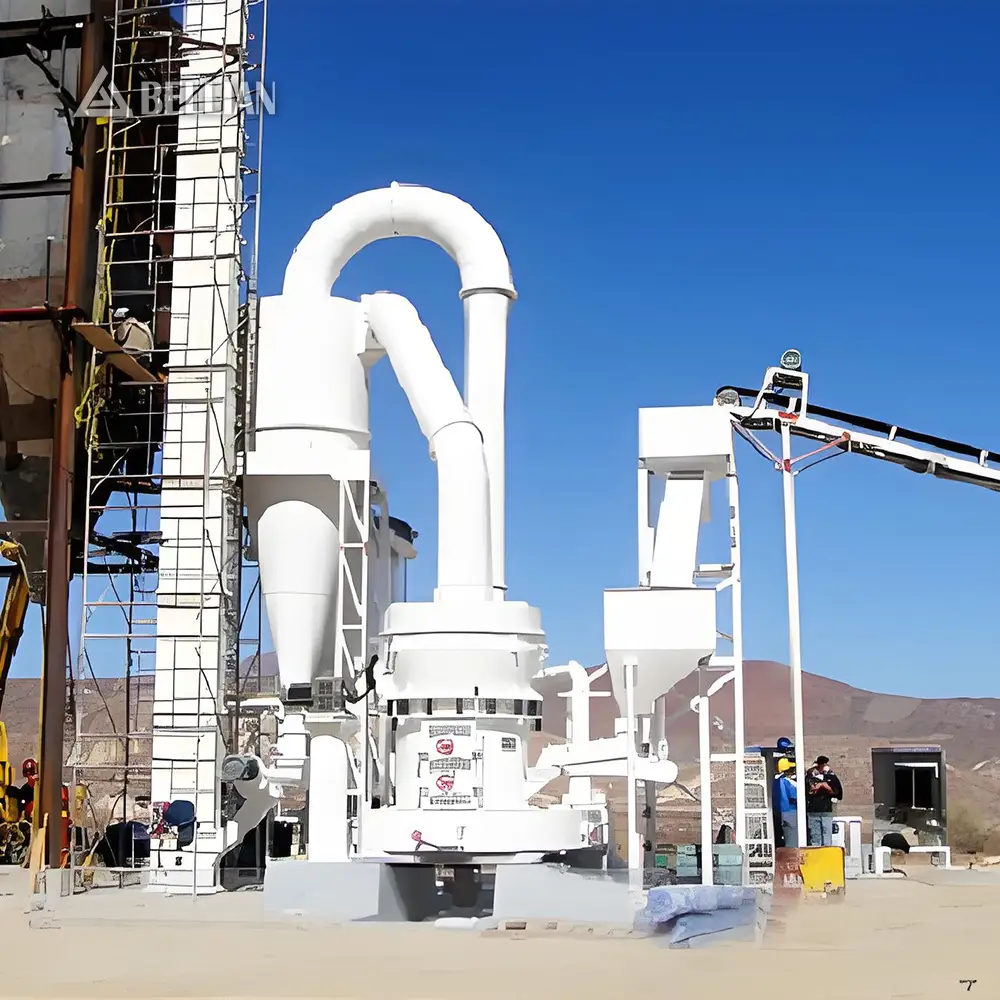

Widely used in mining, metallurgy, chemical industry, building materials and other industries. Suitable for grinding various medium-hard and hard materials with Mohs hardness below 9 and moisture content below 6%, such as granite, basalt, iron ore, copper ore, limestone, barite, feldspar, quartz, etc.
FAQ
What is the difference between YGM High Pressure Mill and Raymond Mill?
YGM High Pressure Mill adds high pressure spring device to increase the grinding pressure by 800-1200kg. It can grind harder materials that traditional Raymond Mill cannot grind, and the output is increased by 20-30% under the same power. It is suitable for grinding medium-hard and hard materials.
Can YGM High Pressure Mill grind iron ore?
Yes, YGM High Pressure Mill can grind iron ore with Mohs hardness up to 9. It is widely used in small and medium-sized iron ore beneficiation lines for grinding iron ore to required fineness.
How to adjust the grinding pressure?
The grinding pressure can be adjusted by adjusting the compression of the high pressure spring. We will set the optimal grinding pressure for you according to your material properties and required fineness before delivery. You can also adjust it according to actual production needs.
Do you provide wearing parts for YGM High Pressure Mill?
Yes, we provide all kinds of wearing parts for YGM High Pressure Mill, including grinding rollers, grinding rings, blades, etc. All wearing parts are made of high-quality materials with strong wear resistance and long service life. We can deliver them to you within 7-15 days.
