Custom Slag Vertical Grinding Station For Local Cement Manufacturer In Vietnam
This integrated vertical roller mill slag fine powder production station is a complete turnkey solution we delivered to a large cement manufacturing group located in southern Vietnam. The local steel industry generates massive quantity of steel slag waste every year, while domestic cement plants and precast component factories face long-term raw material shortages of high-activity mineral blending powder. Previously most local cement producers purchased finished slag powder from outside regions with high transportation cost, so this client planned to build an independent full-process grinding station nearby steel mills to reuse industrial waste and cut raw material expenditure.
After analyzing the grindability, activity index and moisture content of local steel slag samples in our factory lab, we selected heavy-duty vertical roller mill as core grinding equipment. Instead of running the mill at its maximum 42 tons per hour overload limit, we set the daily stable running capacity at 23 tons per hour. Balanced mild load operation can effectively reduce abrasion of grinding rollers, grinding table and wear-resistant lining plates, extending the service cycle of core vulnerable parts and lowering annual factory maintenance cost significantly.
The factory adopts dual-shift working mode widely used by local large industrial manufacturers. Two separate 8-hour production shifts operate each working day, with one hour reserved for equipment heat dissipation, inner cavity residue cleaning and overall safety inspection. Under steady 23t/h continuous production state, roughly 368 tons of high-activity qualified slag fine powder can be produced every single day. Powder fineness can be freely adjusted between 120 mesh and 400 mesh to meet different activity standards required by cement production, wall panel and road base material factories.
On-Site Station Layout And Complete Equipment Matching Information

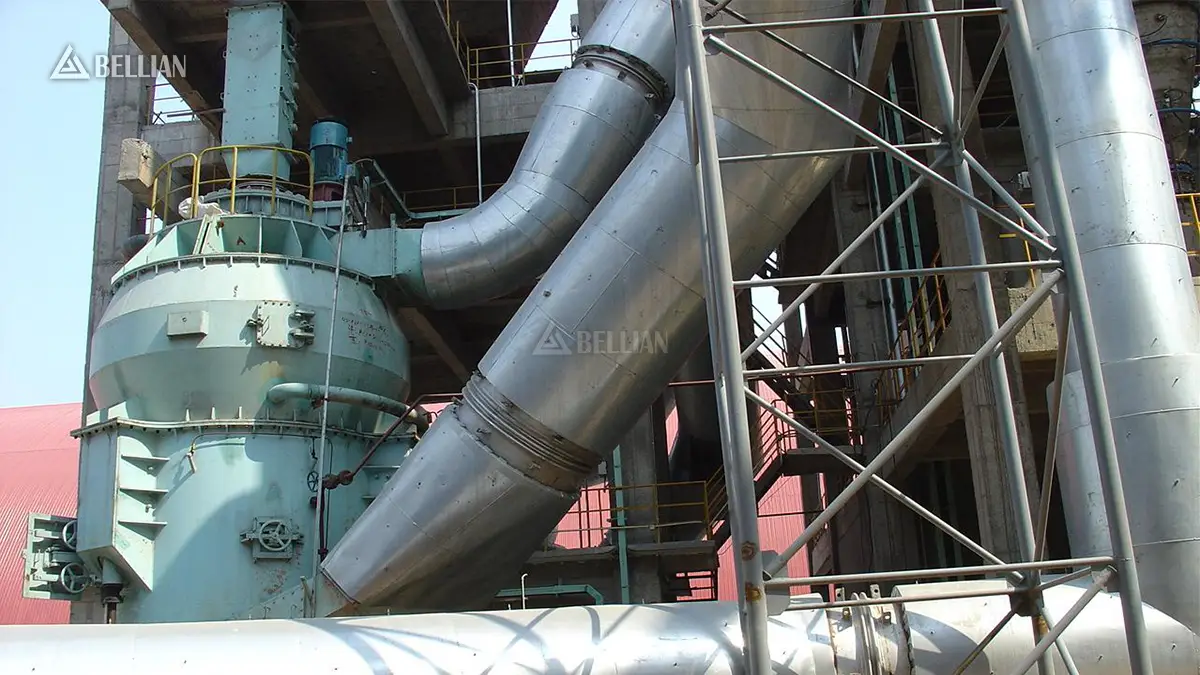

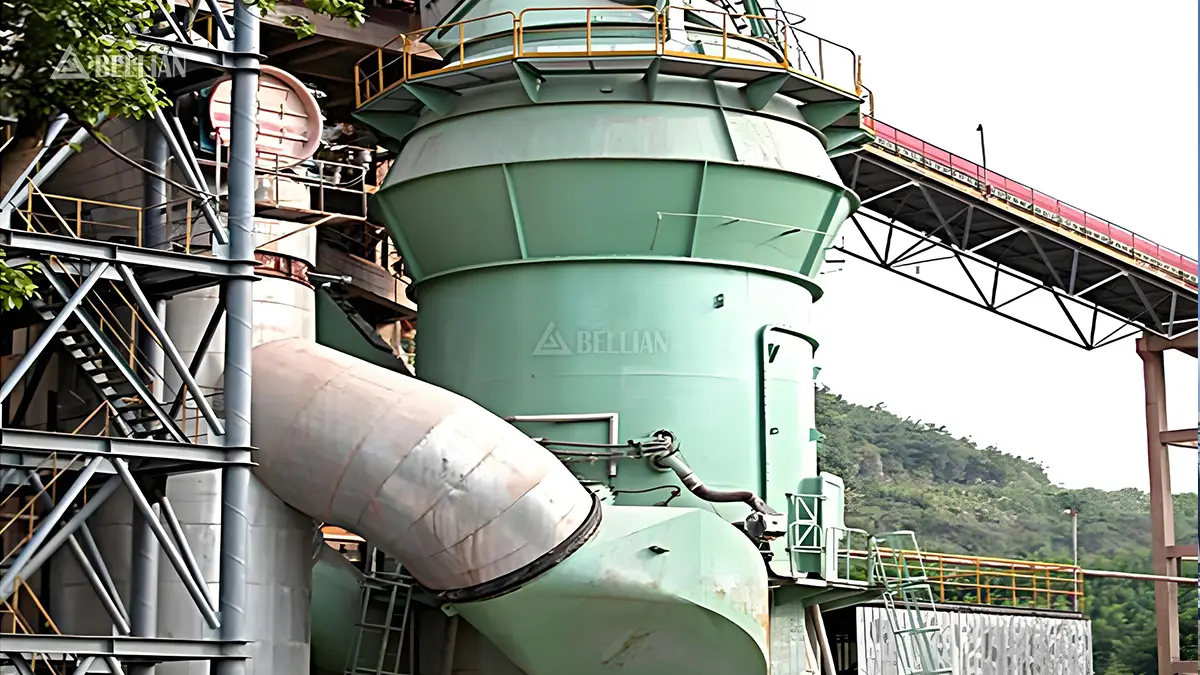

The whole slag grinding station adopts compact multi-layer steel frame integrated layout, matched with independent raw slag feeding silo and fully sealed finished powder storage silo to realize automatic closed-loop production without manual material transfer links. All main grinding equipment, conveying pipelines, sealing fittings, pulse dust removal unit and intelligent PLC control system are delivered as one complete package, so the client does not need to source any auxiliary matching parts separately on site. Two experienced senior technical engineers from our team traveled to the project site to supervise steel frame assembly, mill hoisting, pipeline docking and full-line stable commissioning, and the whole station reached formal profitable production within 27 days after all goods arrived at the port.
A full closed-loop processing workflow covers raw slag feeding, vertical roller fine grinding, powder classification, pulse bag dust collection and sealed finished powder storage, forming an uninterrupted production chain without processing dead zones. Detailed equipment configuration and practical running indicators are listed below:

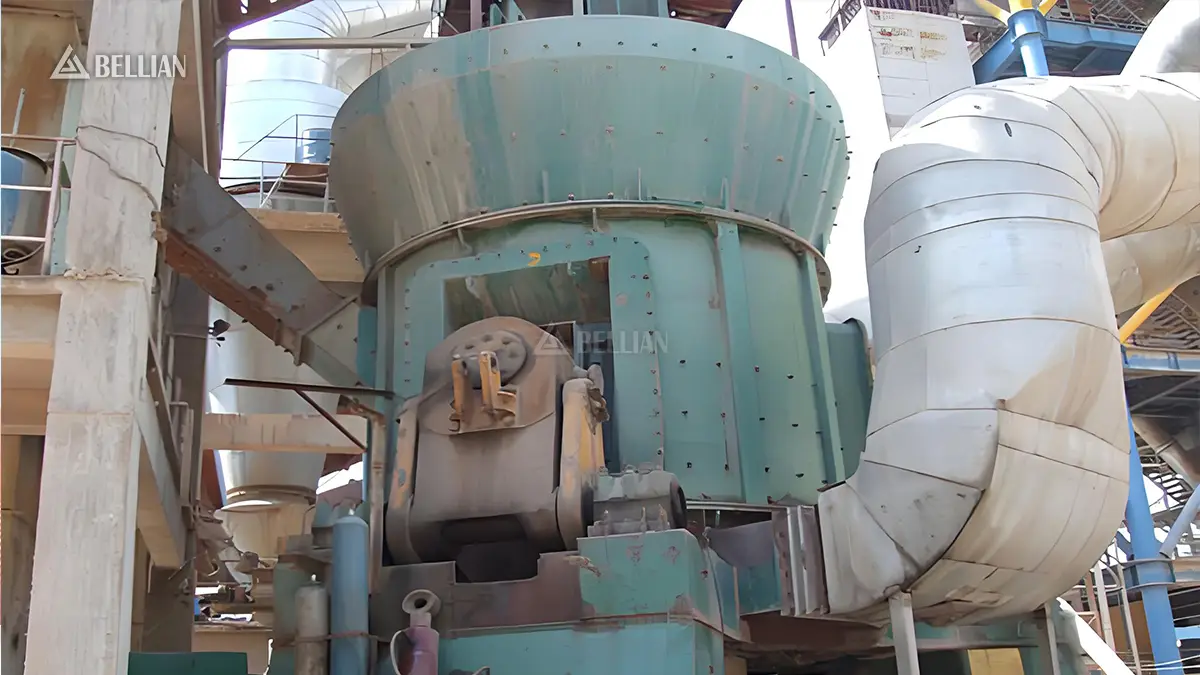

Core Grinding Equipment: Heavy-duty industrial vertical roller mill equipped with three groups of thickened wear-resistant grinding roller assemblies
Stable Hourly Production Capacity: 23 tons/hour, adjustable range 13–42t/h, changes with steel slag hardness, moisture and target powder mesh number
Daily Output Of Qualified High-Activity Slag Fine Powder: Around 368 tons, 16 hours of effective production under two shifts
Adjustable Finished Powder Mesh Range: 120–400 mesh, real-time online adjustment without shutting down the entire grinding station
Maximum Permitted Feed Particle Size: Steel slag blocks ≤40mm after primary crushing and drying pretreatment
Production Operation Mode: Fully sealed negative pressure circulating grinding, ultra-low dust overflow inside the whole workshop space

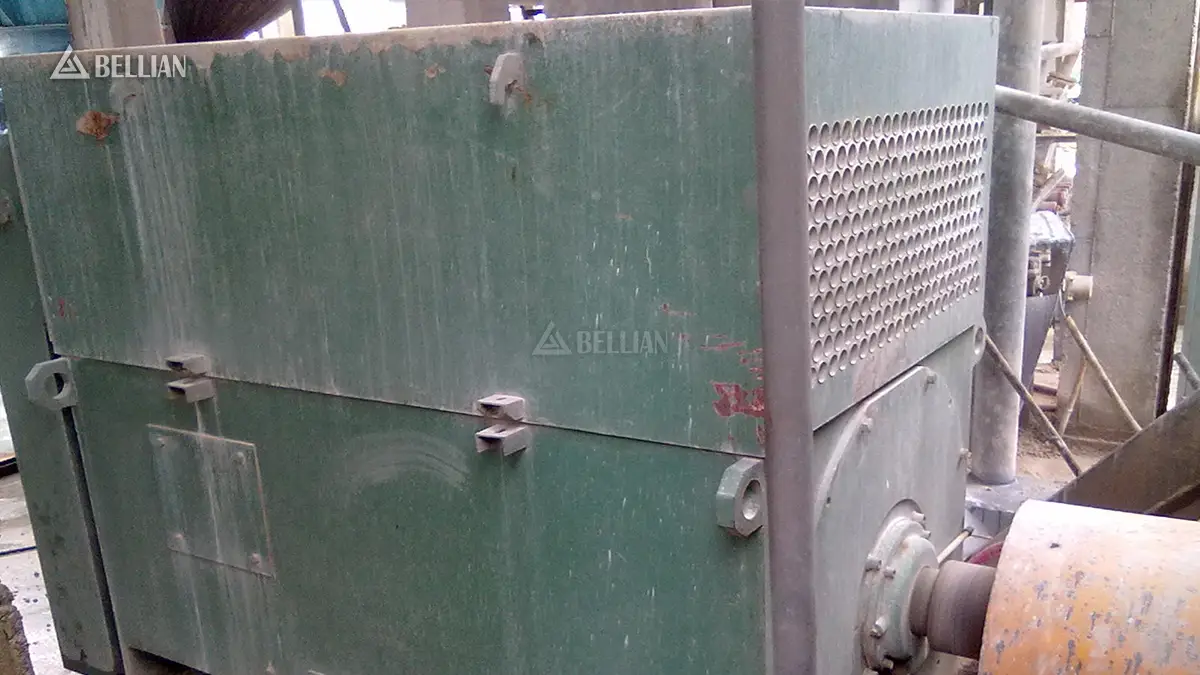

Full Supporting Equipment: Raw slag storage silo, constant quantitative belt feeder, heavy-duty vertical roller mill, high precision powder classifier, large area pulse bag dust collector, centrifugal induced draft fan, PLC touch screen intelligent control cabinet, sealed finished slag powder silos, multi-layer safety operation steel platform
Core Practical Advantages Of This Slag Specialized Vertical Mill Scheme
Balanced Load Operation Extends Service Life Of Heavy Wear Parts
Steel slag has high hardness and strong abrasiveness, which brings severe wear to vertical mill core components during long-term continuous production. For overseas cement grinding stations, frequent replacement of grinding rollers and table liners will generate heavy international shipping cost and long-time production halt losses. By limiting daily stable output to 23t/h instead of continuous full-load overload operation, we effectively slow down the abrasion rate of all key vulnerable components. The replacement cycle of core wear-resistant spare parts can be extended by nearly 35%, avoiding unexpected production suspension triggered by mechanical aging and overload damage.
Full Set Integrated Shipment Eliminates Local Parts Matching Trouble
All steel frame components, conveying pipelines, connecting flanges, sealing gaskets, driving motors and auxiliary machinery are pre-assembled and fully tested inside our factory before shipment, with unified standard connecting ports. Local construction crews can complete frame assembly and equipment docking directly without extra cutting, welding or on-site modification work, greatly compressing overall construction cycle and enabling the client to launch formal slag powder sales much faster.
Matched Large Bag Dust Removal System Complies With Local Industrial Emission Supervision Rules
Vietnam enforces strict regulatory standards for industrial solid waste and dust emissions. We upgraded the matched large pulse bag dust collector to fully match the air volume demand of heavy-duty vertical roller mill unit, enabling the entire grinding station to operate under fully enclosed negative pressure circulation. Almost no floating dust can be observed during normal production, and the project smoothly passed local environmental compliance inspection on the first post-commissioning audit.
Simplified Touch Screen Central Control Reduces Operator Training Difficulty
The matched PLC control cabinet adopts streamlined intuitive touch operation panel, which clearly displays real-time running data including raw slag feeding speed, finished powder fineness, main motor load and equipment operating current. We provided three full days of hands-on on-site operation training for the client’s on-site operators; ordinary factory staff can independently monitor and regulate the whole vertical mill grinding station without advanced professional industrial technical background.
Main Application Fields Of Produced High-Activity Slag Fine Powder
The high activity slag micro powder manufactured by this grinding station is supplied to dozens of cement plants, precast component factories and road construction enterprises distributed across Vietnam, covering multiple core industrial application sectors:
High-activity blending additive raw material for ordinary portland cement production
Lightweight inorganic filler for interior wall panels, precast concrete building components
Stabilizing base raw material for municipal highway and rural road construction projects
Low-cost mineral filler for water-based architectural coating and waterproof material manufacturing
Global Full-Cycle Turnkey Service Support For Mineral Vertical Mill Grinding Station Projects
We have delivered dozens of vertical roller mill full grinding station cooperation projects to various regions across the globe, accumulating abundant practical experience to adjust production line supporting schemes according to local climate conditions, environmental protection policies and daily factory production operation customs.
For every overseas mineral processing project, we complete full pre-assembly and no-load aging testing inside our factory before shipment to guarantee perfect matching of all main equipment and spare parts. Professional overseas technical engineers can be dispatched to provide full-cycle on-site installation guidance and operator hands-on training services. Original factory wear-resistant spare parts for vertical mills are supplied all year round at factory direct prices, with flexible global sea freight logistics solutions to shorten spare parts delivery waiting period.
