1. Project Background: Large Limestone Powder Line For Johannesburg Building Material Supplier

This large-capacity limestone grinding line is a turnkey project we delivered last year for a local building material enterprise in Johannesburg. The client originally ran a small outdated grinding unit, which could not satisfy the surging demand brought by local infrastructure construction. They needed a stable high-output production line to supply local ready-mix concrete stations, dry mortar manufacturers and coal-fired power plant desulfurization projects.

After analyzing their daily raw ore reserves and downstream order volume, we matched the 6R4525 large pendulum grinding mill as core equipment. Instead of pushing the unit to its 18 tons per hour maximum limit, we set the daily stable output at 10 tons per hour. Maintaining a mild operating load can effectively slow down abrasion of grinding rollers, rings and main bearings, cutting annual spare parts replacement expenditure and avoiding unexpected production shutdowns caused by overloaded operation.

Consistent with the production schedule adopted by most medium and large mineral processing factories in the region, the client arranges two 8-hour shifts every working day, reserving one hour daily for equipment cooling, internal chamber cleaning and full inspection. Based on the steady 10t/h running data, the plant can produce around 160 tons of qualified limestone fine powder per day. The finished powder fineness can be adjusted freely between 80 mesh and 325 mesh, fully covering all mainstream raw material standards required by local downstream buyers.

2. On-Site Installation & Full Equipment Configuration

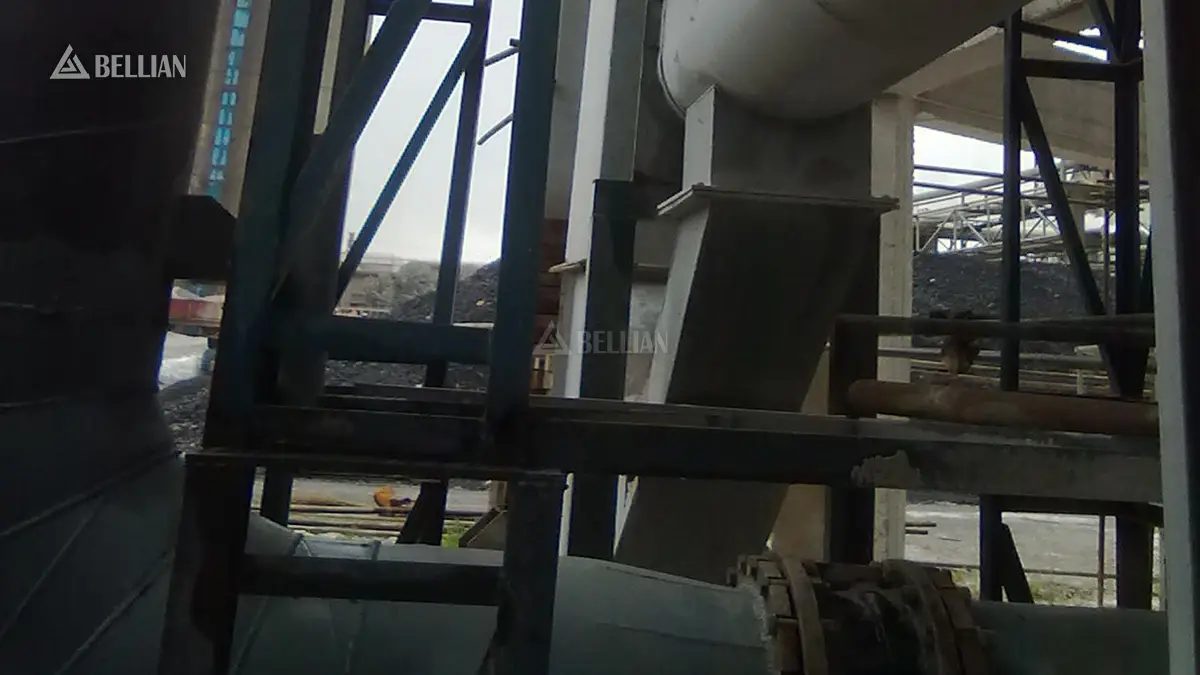

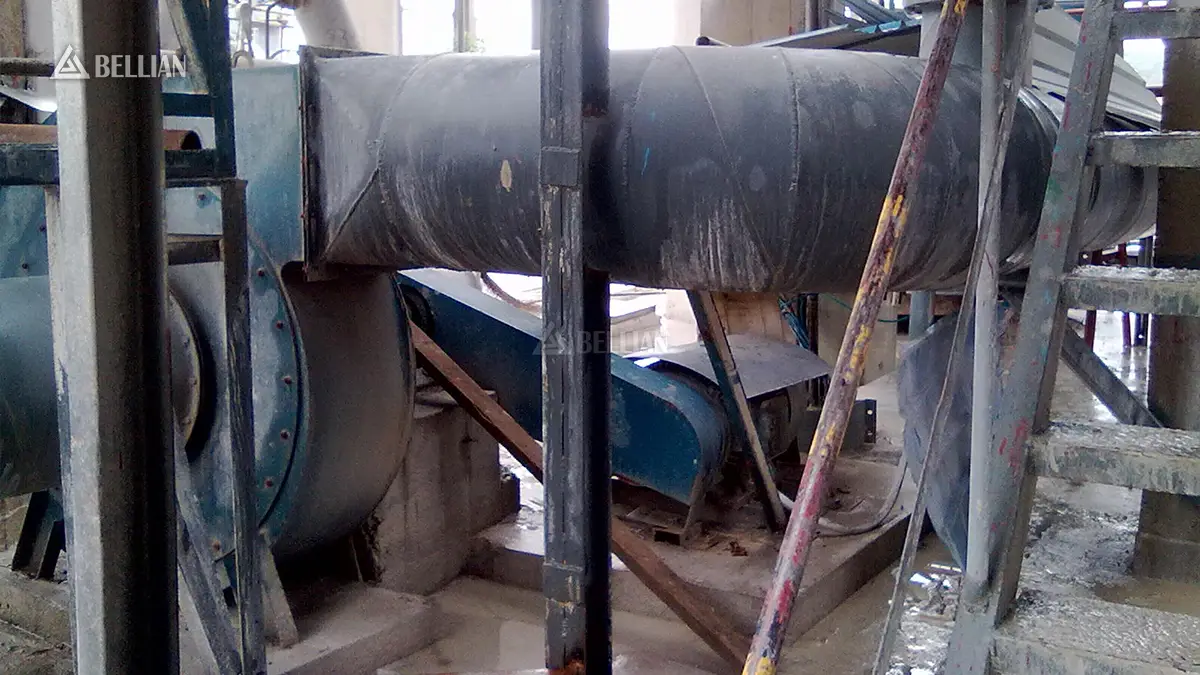

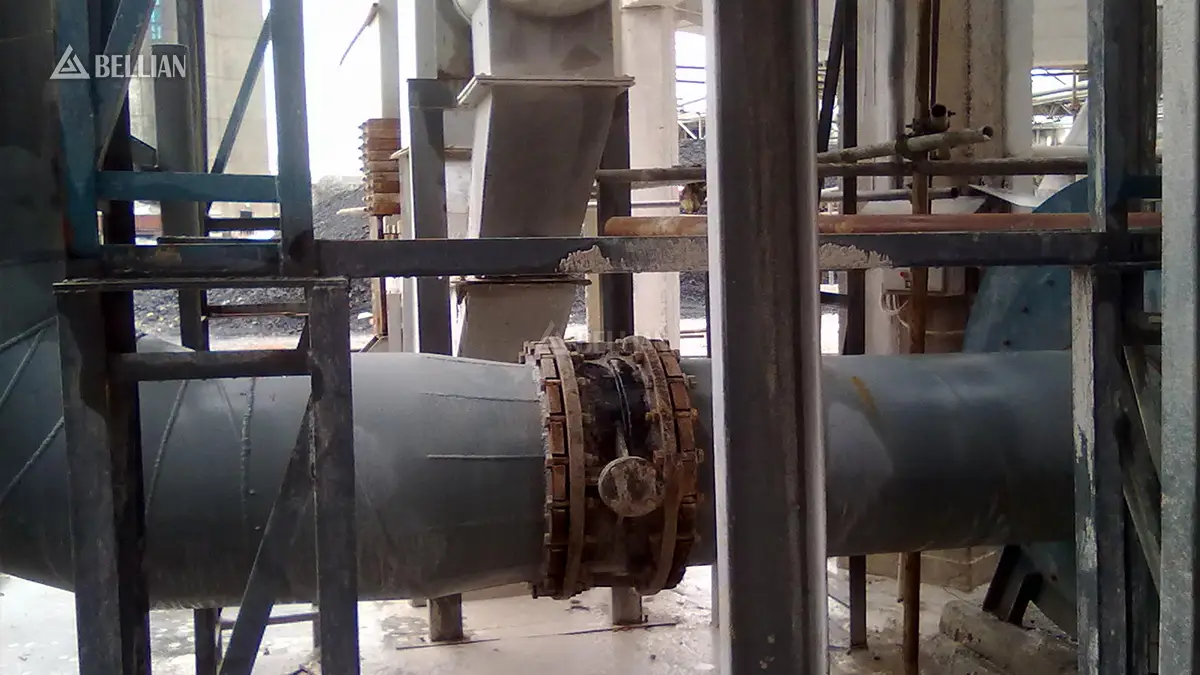

We dispatched two experienced technical engineers to provide full on-site installation guidance, while the client arranged local construction crews to complete foundation pouring, equipment hoisting and pipeline welding work. The whole installation and commissioning cycle took roughly 20 days. All pipeline sections, connecting flanges and sealing components were prefabricated and tested inside our factory before shipment, which greatly reduced on-site modification work and shortened the whole construction period.

This is a complete one-stop supporting set covering all production links from raw ore feeding to finished powder packaging. Customers do not need to separately purchase any auxiliary equipment or matching parts:

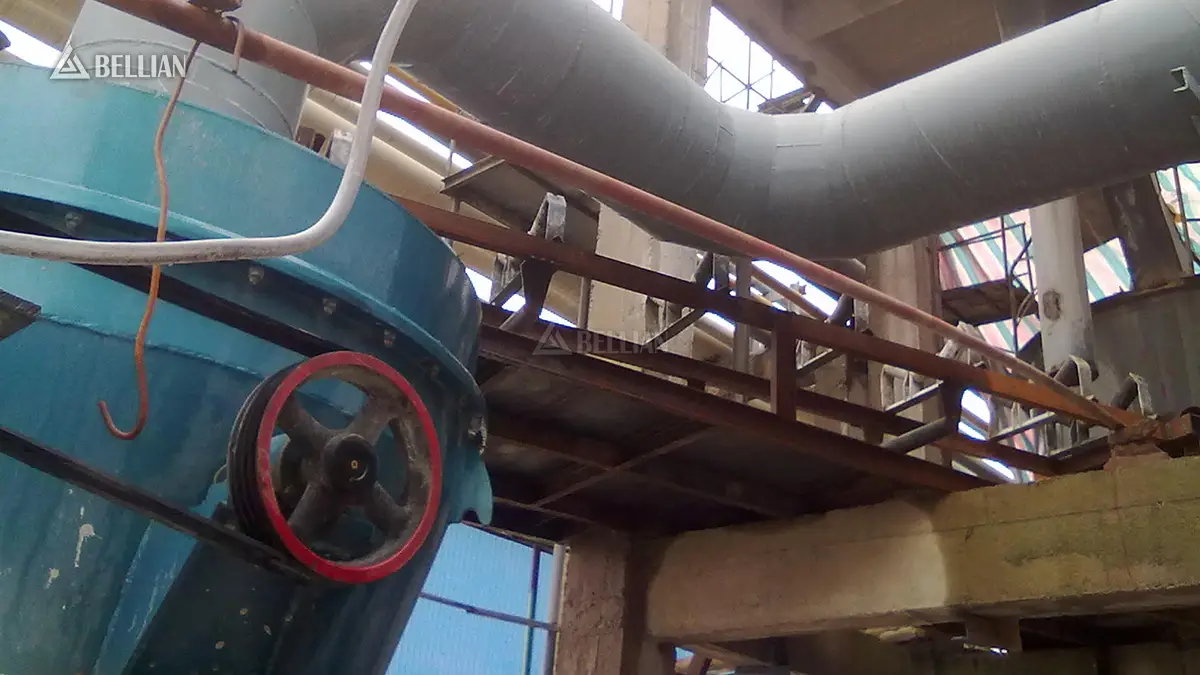

• Core Grinding Host: 6R4525 large pendulum Raymond mill (6 grinding rollers)

• Stable Hourly Output: 10 tons/hour (adjustable range 6-18t/h, fluctuates with ore hardness and target mesh)

• Daily Qualified Powder Output: Around 160 tons (16 hours effective production under two 8-hour shifts)

• Finished Powder Fineness: 80-325 mesh adjustable, no full-line shutdown required during adjustment

• Max Allowable Feed Size: Limestone ore ≤35mm after primary jaw crushing

• Operation Mode: Fully closed negative pressure circulation grinding, almost no visible dust overflow in production workshop

• Complete Supporting Equipment: Bucket elevator, quantitative vibrating feeder, 6R4525 grinding host, high-efficiency powder classifier, double cyclone collectors, large-area pulse dust remover, centrifugal induced draft fan, PLC centralized control cabinet

3. Core Advantages Of This 6R Large-Scale Grinding Scheme

3.1 Mild Load Design Extends Service Life Of Core Large Equipment

Maintenance and downtime losses of large grinding equipment will bring huge cost pressure to manufacturers. By controlling the stable output at 10t/h instead of running at full capacity, we effectively reduce the wear rate of all core vulnerable parts. The client can greatly reduce the annual replacement frequency of grinding rollers and rings, and avoid delivery delays caused by sudden equipment faults.

3.2 Full-Set Shipment Eliminates Local Parts Matching Troubles

All components ranging from tiny sealing gaskets to the main mill body are delivered together as a complete set. Customers do not need to spend extra time searching for matching pipes, motors and dust removal accessories locally. All connecting interfaces adopt unified standard sizes, making installation work simple and efficient even for local construction teams.

3.3 Upgraded Dust Removal System Complies With Local Environmental Standards

Local industrial environmental protection supervision on dust emission is strict. We upgraded the matched pulse dust remover to match the air volume demand of 6R large mill, enabling the whole production line to run under fully sealed negative pressure. There is barely any floating dust inside the workshop during operation, and the plant successfully passed local environmental acceptance after one inspection.

3.4 Simplified Centralized Control Reduces Operator Training Threshold

The supporting PLC control cabinet adopts an optimized operation interface, which clearly displays real-time data such as feeding speed, powder fineness and equipment operating current. We provided three days of on-site operation training for the client’s staff, and operators can independently manage the whole production line without professional industrial technical background.

4. Main Downstream Application Fields Of Finished Limestone Powder

The limestone fine powder produced by this plant is supplied to multiple industrial sectors across local provinces:

• Raw filler for ready-mix concrete, dry mortar and interior wall putty

• Flue gas desulfurization absorbent for local thermal power plants and waste incineration factories

• Base raw material for road construction and civil engineering projects

• Inorganic filling additive for paint, rubber and plastic processing industry

5. Global One-Stop Project Service Support

We have delivered dozens of mineral grinding plant projects to various regions all over the world, accumulating rich practical experience in adapting equipment schemes to different local climate, environmental policies and production habits.

For every overseas mineral processing project, we complete full pre-assembly and no-load aging test inside our factory before shipment to ensure all parts fit perfectly. We can arrange professional overseas engineers to provide on-site installation guidance and operator training services. Original factory vulnerable spare parts are supplied all year round at factory direct prices with flexible global shipping arrangements.
