Products Description

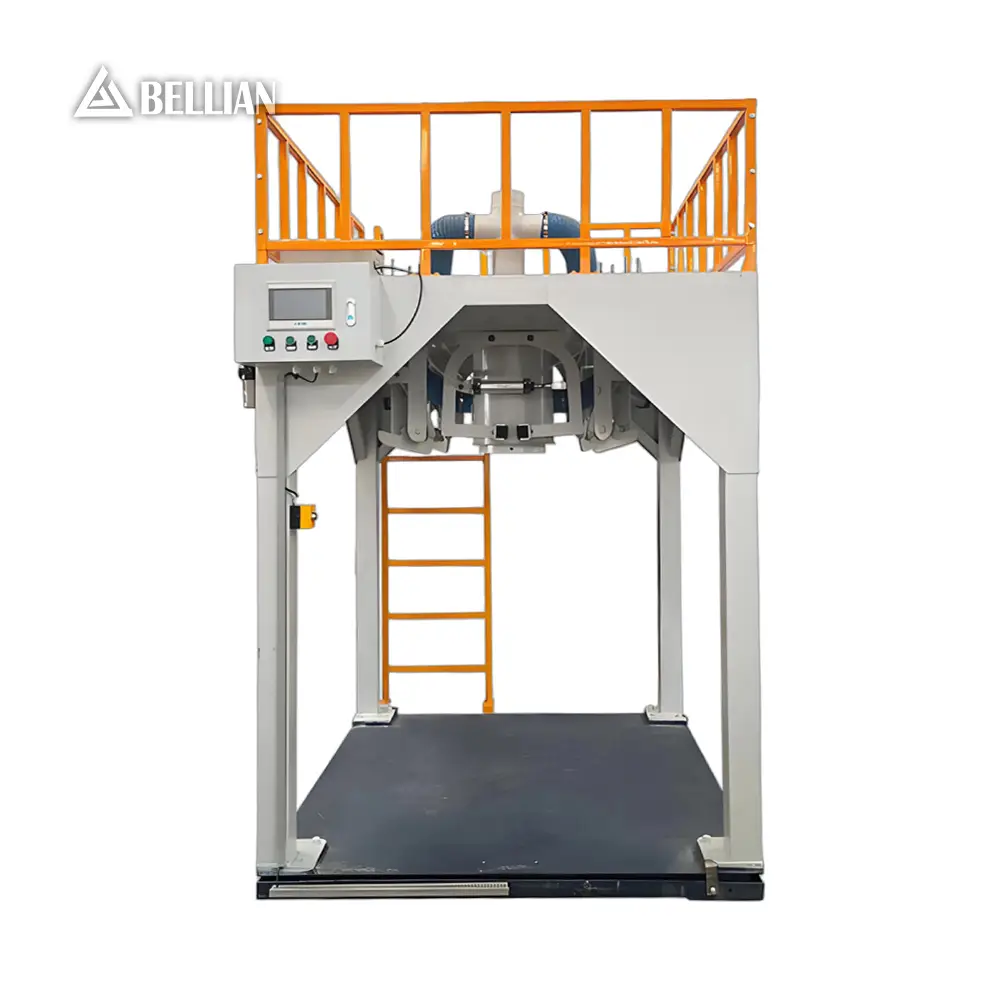

Bellian DCS Series Ton Bag Packing Machine is a special equipment for packaging bulk materials into 500-2000kg FIBC (Flexible Intermediate Bulk Container) bags. It is widely used in cement plants, power plants, mines and chemical plants for bulk material transportation. Our ton bag packing machine adopts advanced weighing technology and hydraulic lifting system, which has high weighing accuracy and high efficiency. It can greatly reduce packaging cost and improve transportation efficiency.
Working Principle
The ton bag packing machine mainly consists of frame, lifting system, weighing system, filling system and control system. The operator hangs an empty ton bag on the hooks and presses the start button. The machine lifts the bag and starts filling materials into it while weighing. When the weight reaches the set value, the filling stops automatically. The bag is then lowered onto the pallet or ground, and the hooks are released automatically. The whole process is fully automated.
Performance Features
High weighing accuracy with error within ±0.2% of the bag weight
Hydraulic lifting system, stable operation, easy bag hanging and removing
Automatic filling, weighing and bag releasing, reducing labor intensity
Sealed filling system, no dust leakage, meeting environmental protection requirements
Can pack 500-2000kg ton bags, suitable for bulk material transportation
Simple structure, reliable operation, easy maintenance
Technical Specifications
| Model | Bag Weight Range (kg) | Capacity (bags/h) | Power (kW) | Weighing Accuracy | Air Pressure (MPa) |
|---|---|---|---|---|---|
| DCS-1T | 500-1000 | 20-30 | 5.5 | ±0.2% | 0.4-0.6 |
| DCS-1.5T | 1000-1500 | 25-40 | 7.5 | ±0.2% | 0.4-0.6 |
| DCS-2T | 1500-2000 | 30-50 | 11 | ±0.2% | 0.4-0.6 |
| DCS-2.5T | 2000-2500 | 40-60 | 15 | ±0.2% | 0.4-0.6 |
Application Scenarios

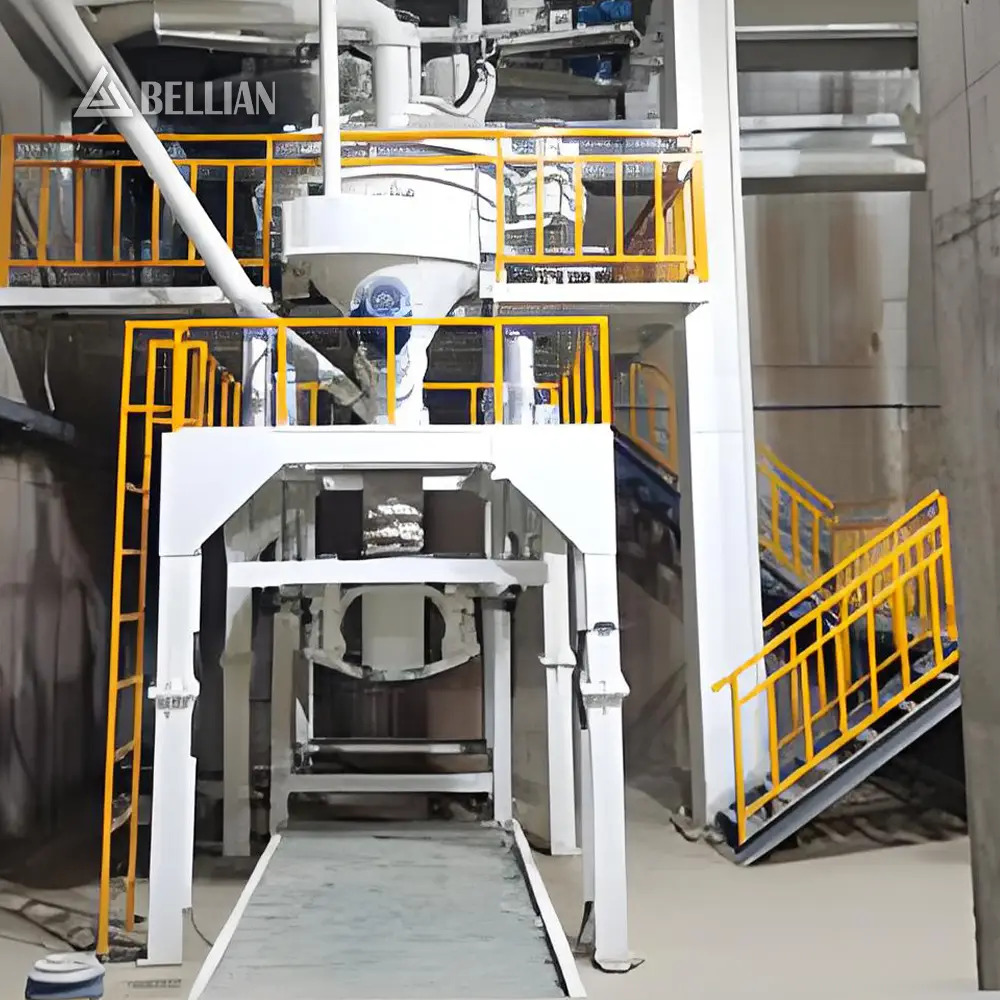

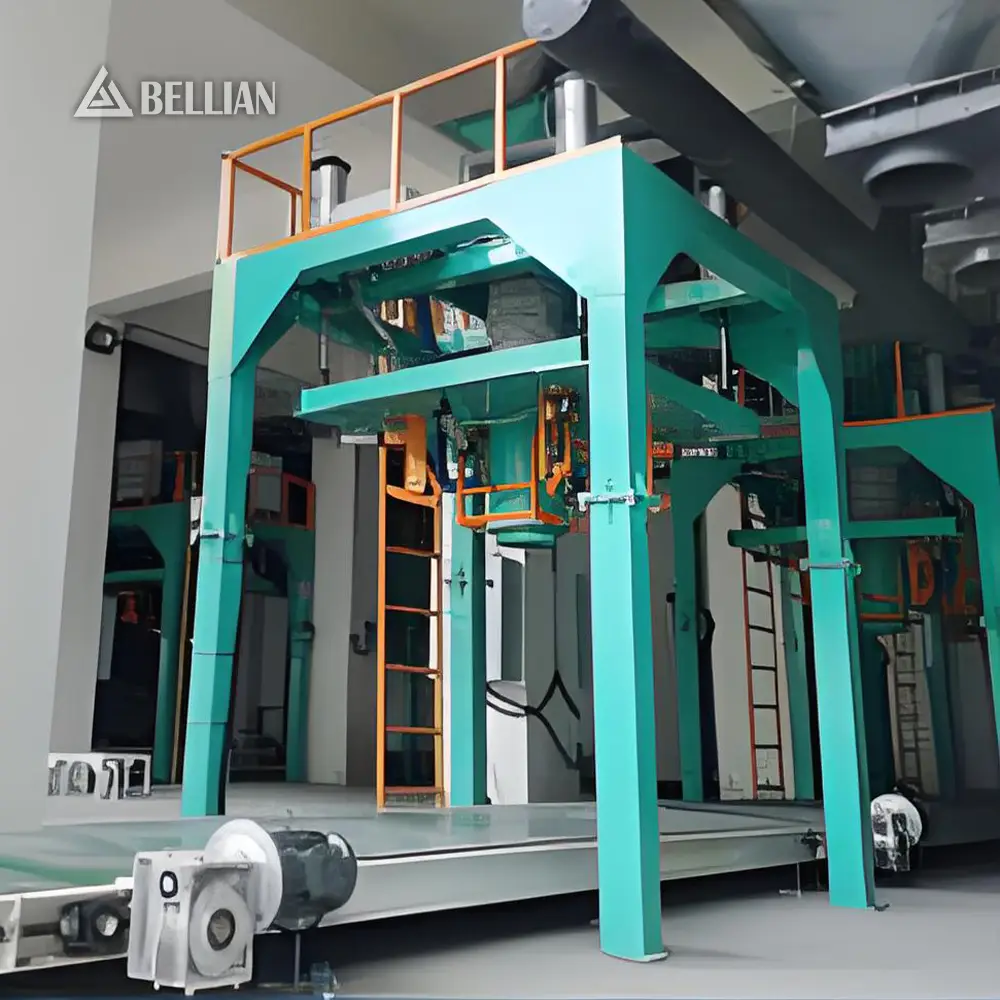

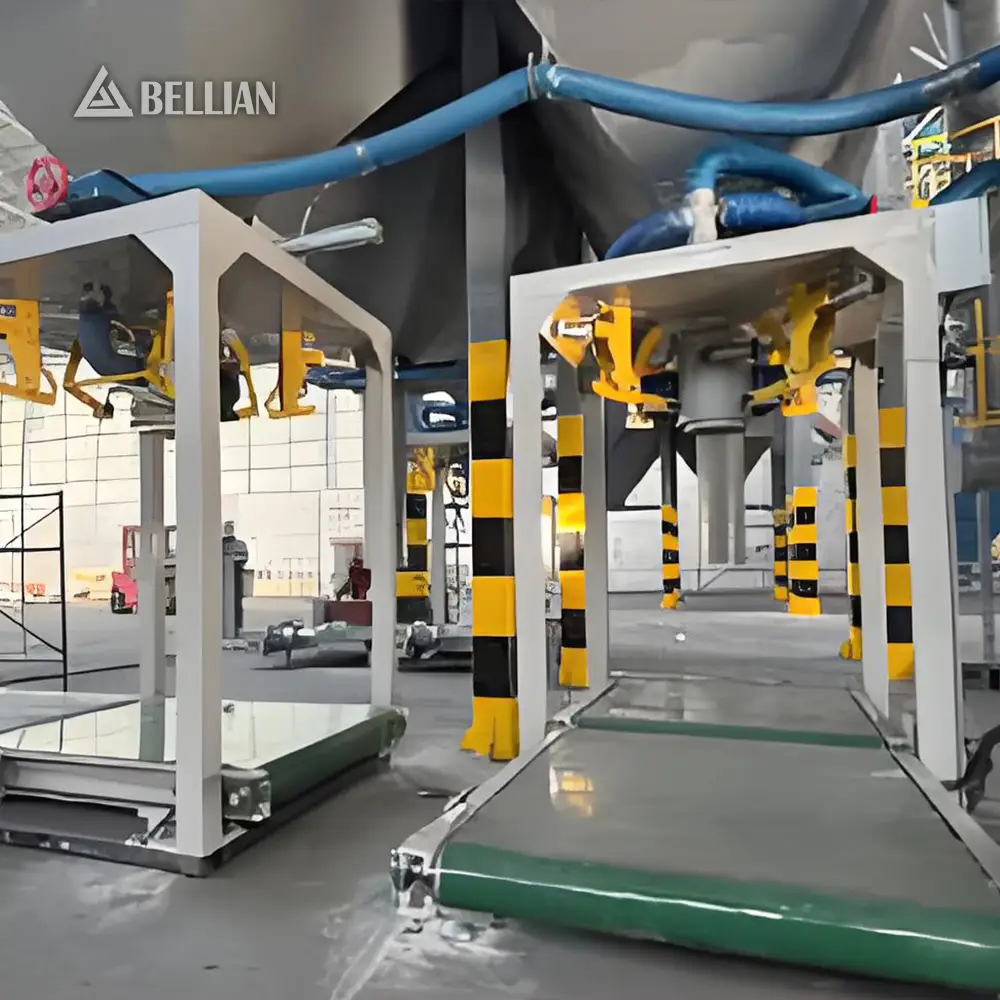

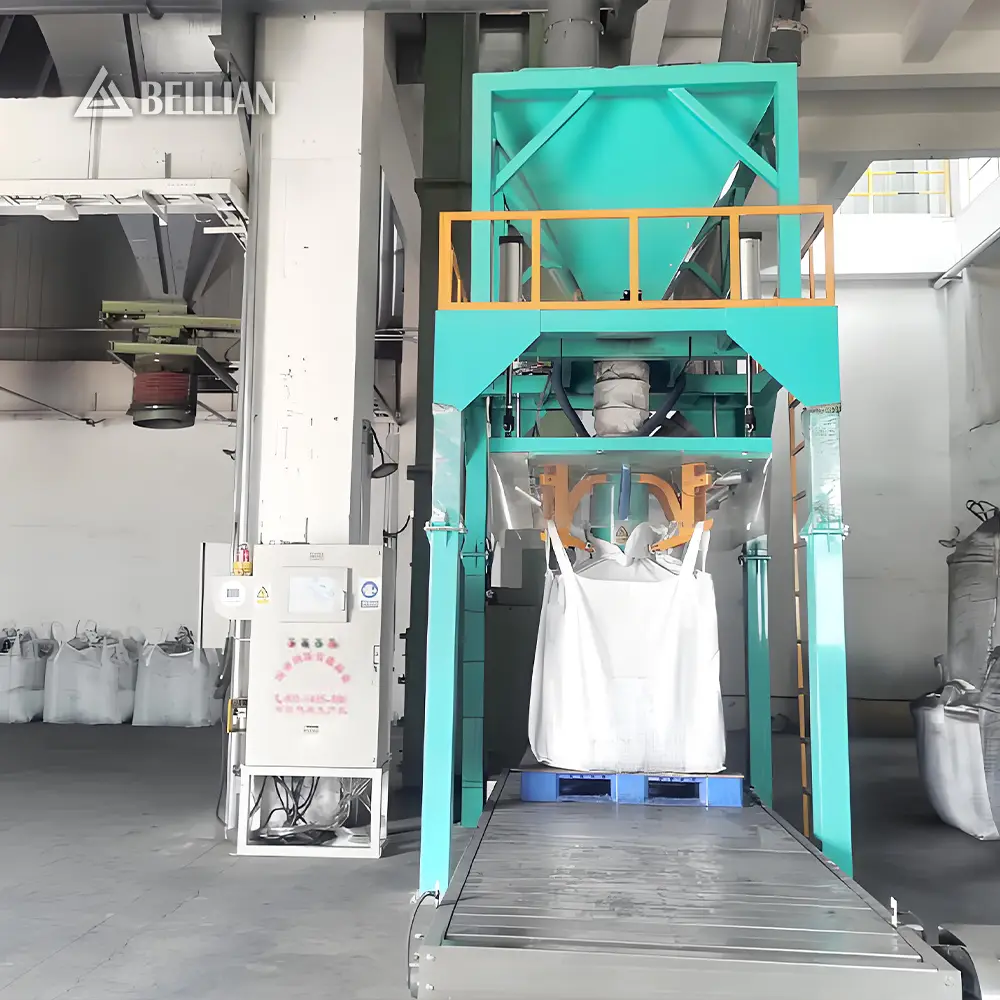

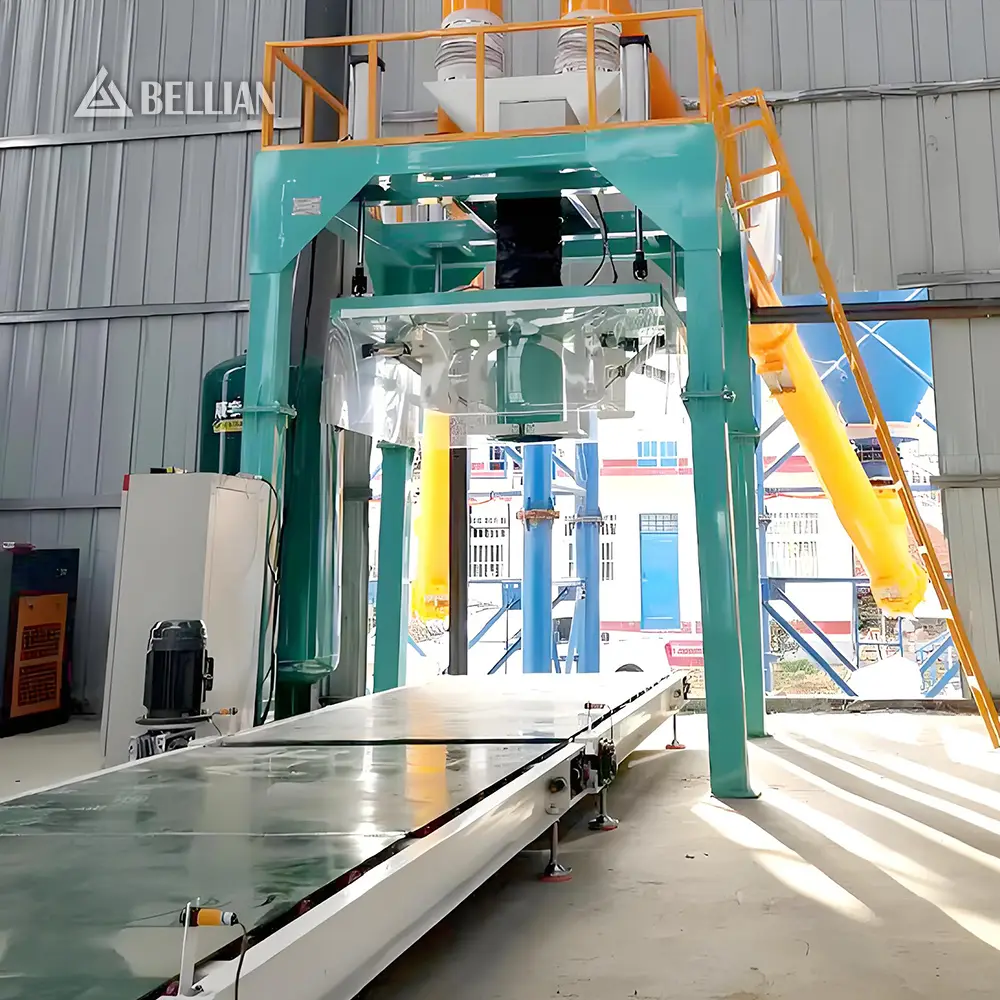

Widely used in cement plants, power plants, mines, chemical plants, grain depots and other industries. Suitable for packaging various bulk materials such as cement, fly ash, slag powder, ore powder, grain, chemical powder, etc. It is especially suitable for long-distance bulk transportation of materials.
Buying Guide
When choosing a ton bag packing machine, you should consider: 1. The required bag weight range; 2. The required production capacity; 3. The type of materials to be packed; 4. The available air source. We will recommend the most suitable model according to your specific requirements.
FAQ
What is the maximum bag weight that the machine can pack?
Our standard ton bag packing machine can pack bags up to 2500kg. We can also customize the machine to pack heavier bags according to your requirements.
How many operators are needed?
Only one operator is needed to operate the ton bag packing machine. The operator only needs to hang empty bags on the hooks and remove the filled bags.
Can the machine pack different sizes of ton bags?
Yes, the machine can be adjusted to pack different sizes of ton bags. We can also customize the machine according to your specific bag size.
Is the machine equipped with a dust removal system?
Yes, our ton bag packing machine is equipped with a dust removal interface, which can be connected to your existing dust removal system to prevent dust leakage during the filling process.
