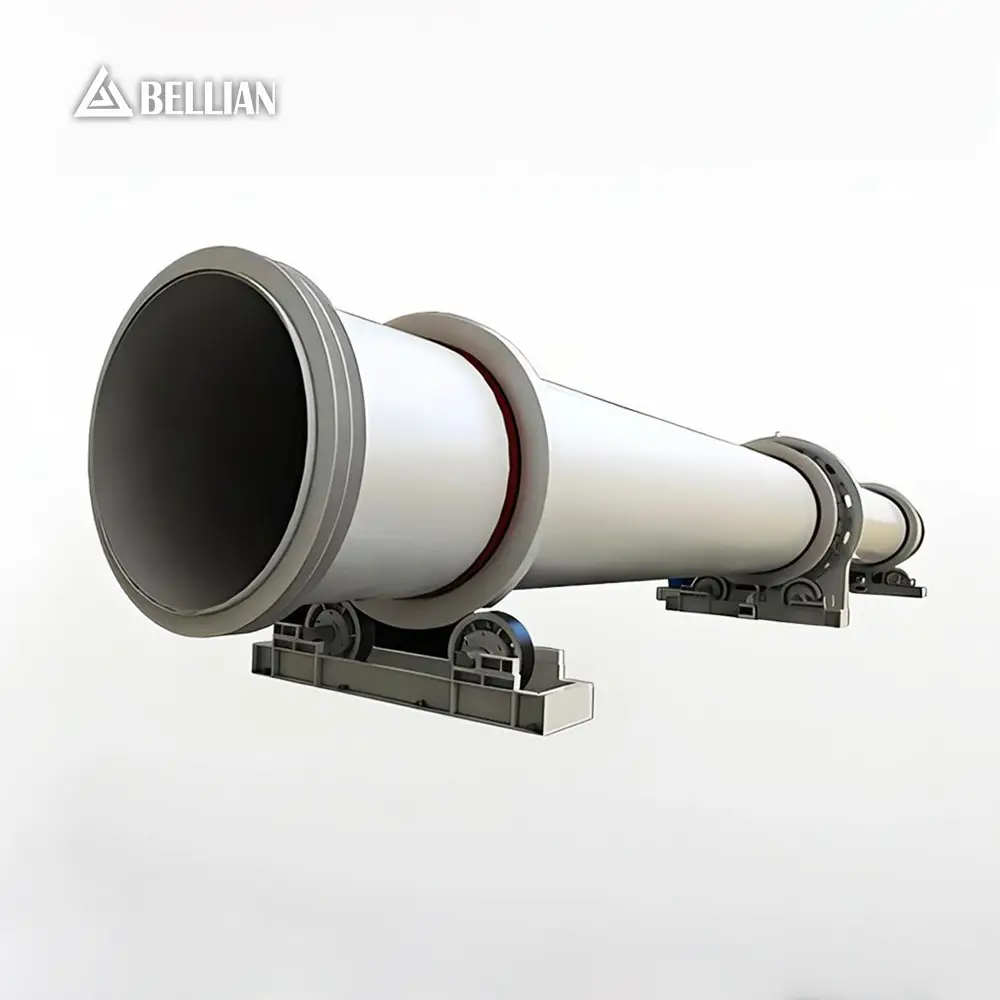

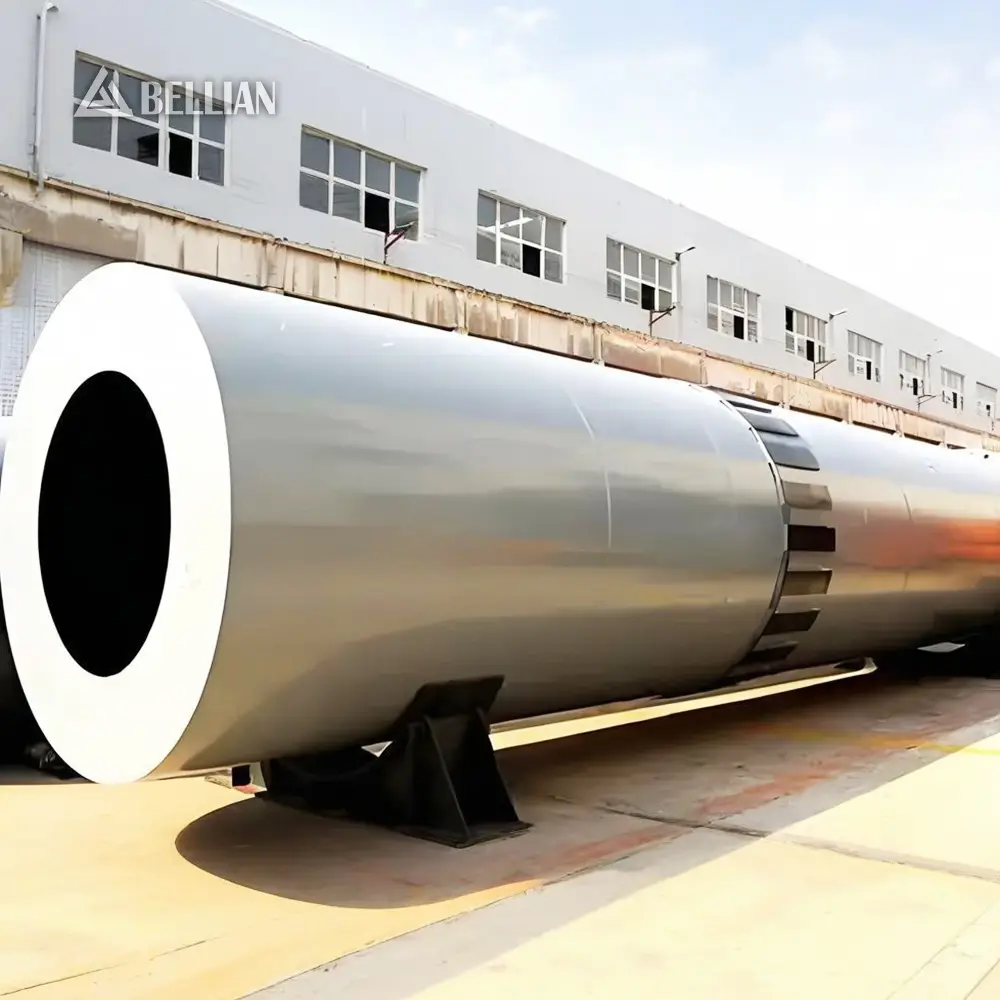

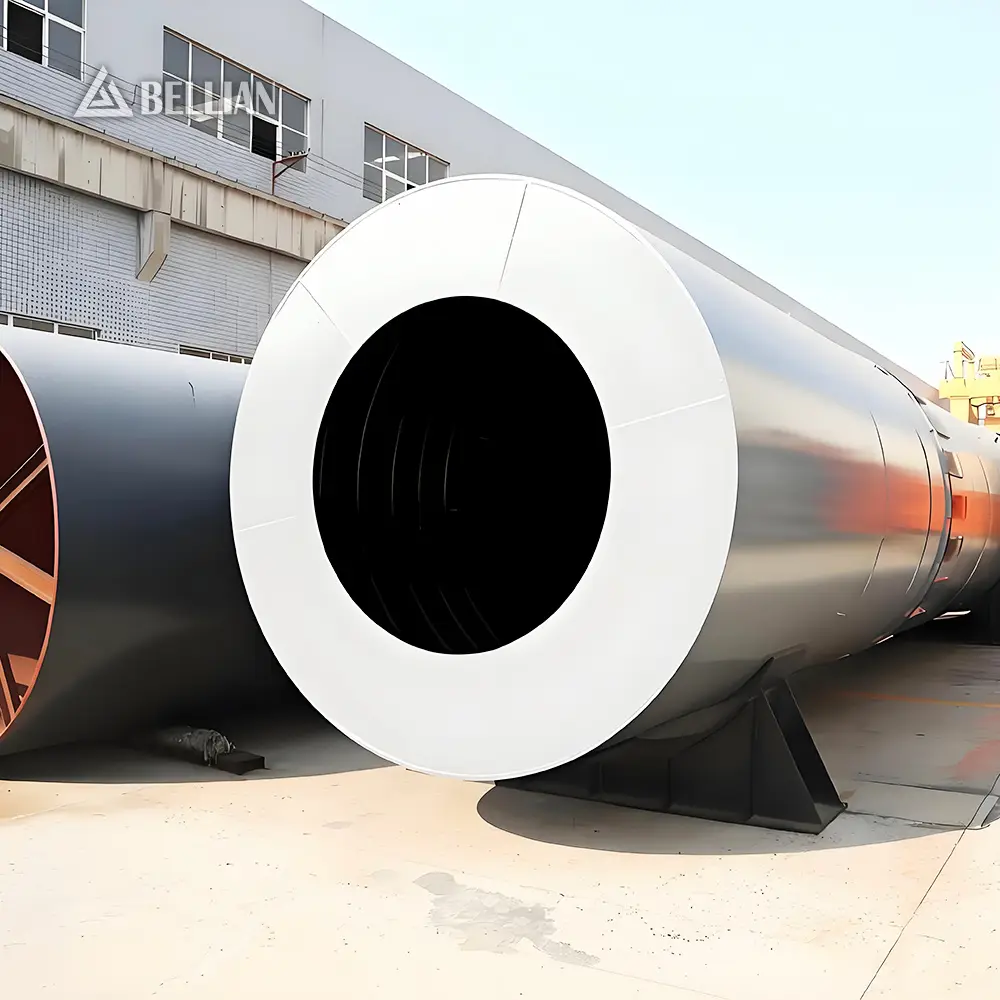

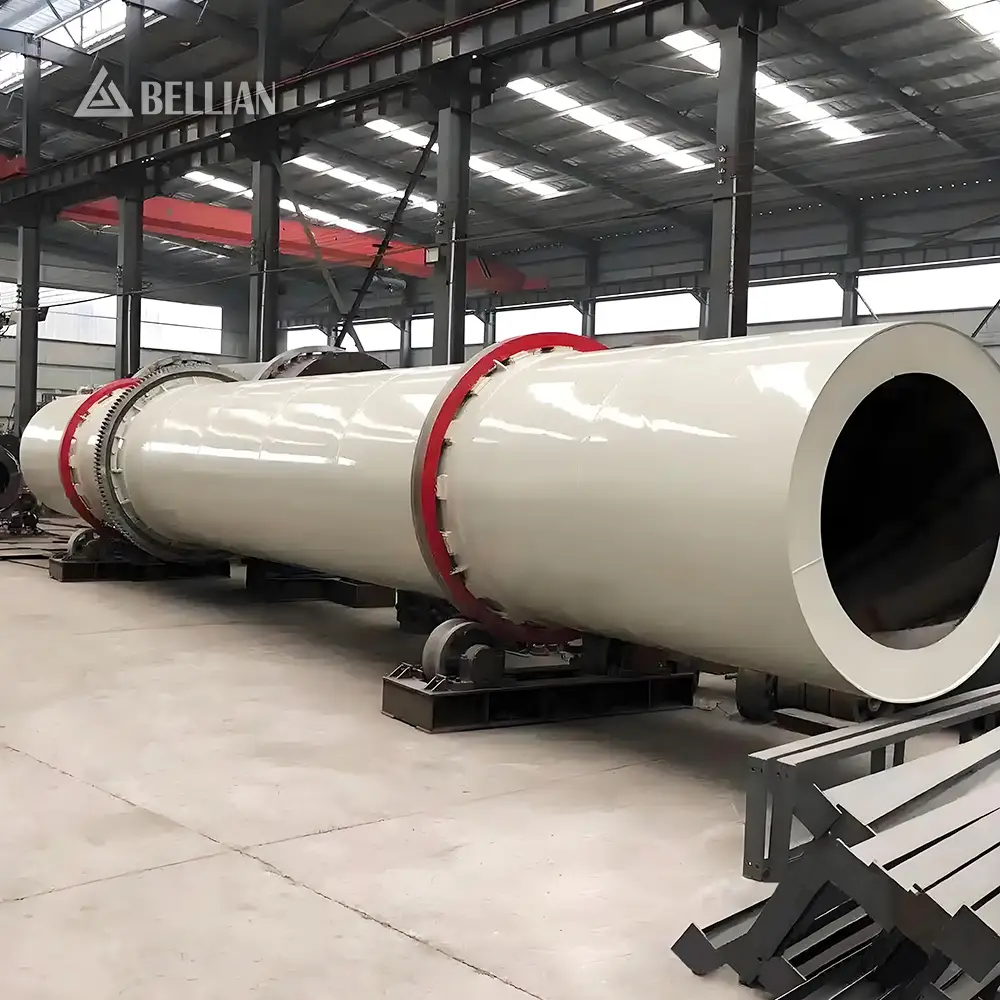

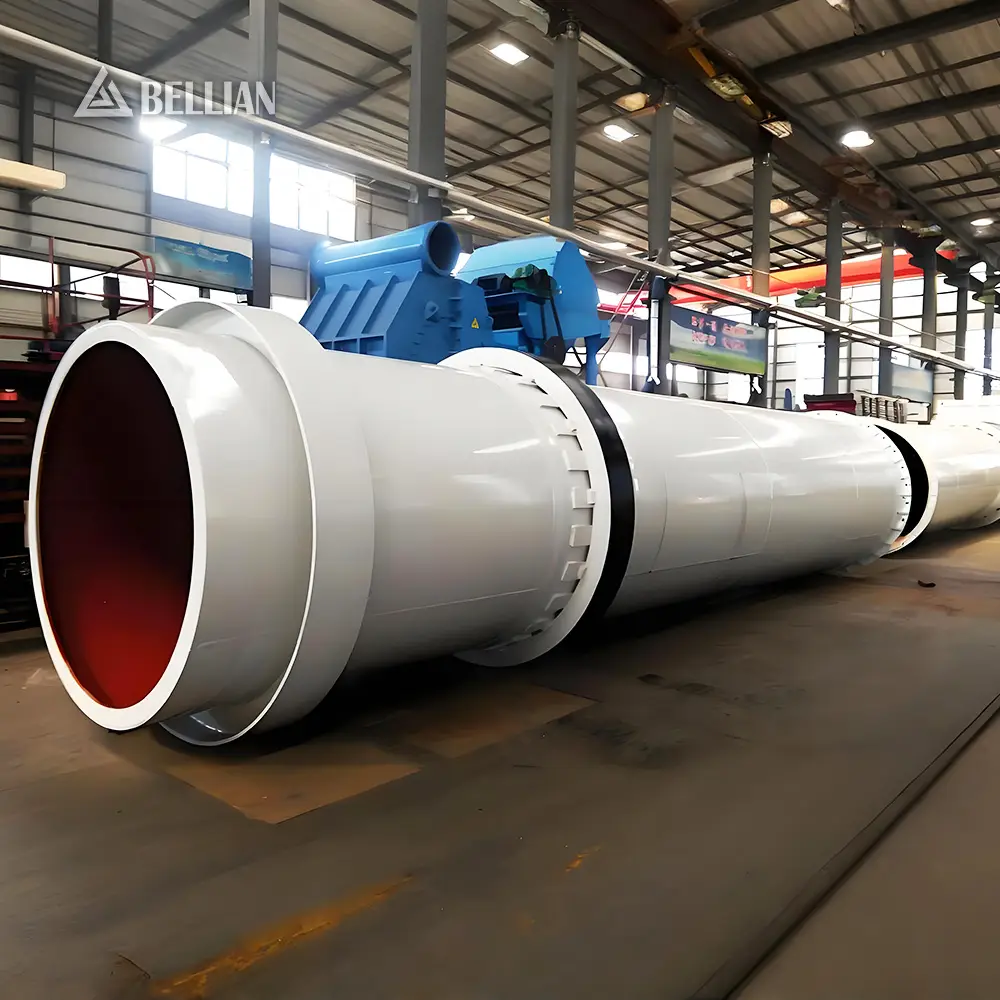

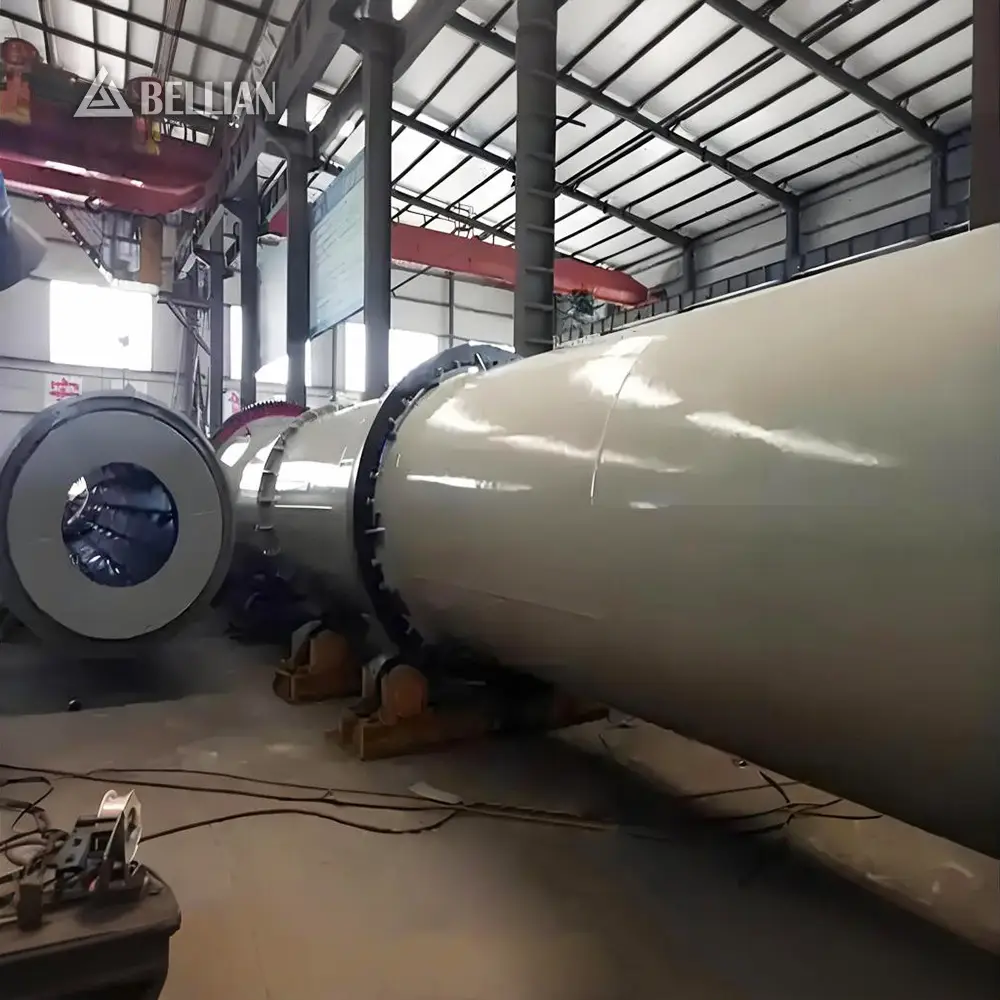

Products Description
Single‑tube rotary cooler is a key supporting equipment matched with rotary kiln, mainly used to cool high‑temperature clinker discharged from rotary kiln. The high‑temperature material (about 1000‑1200℃) enters the cooler and moves slowly with the rotation of the cylinder, realizing sufficient heat exchange with natural air, so as to reduce the material temperature below 200℃.
Compared with grate cooler, single‑tube rotary cooler features simple structure, low failure rate, low investment cost and convenient maintenance, which is widely used in small and medium‑sized cement, active lime, mineral processing and metallurgical production lines. It can effectively recover waste heat, improve clinker quality and reduce energy consumption of the whole production line.
Working Principle

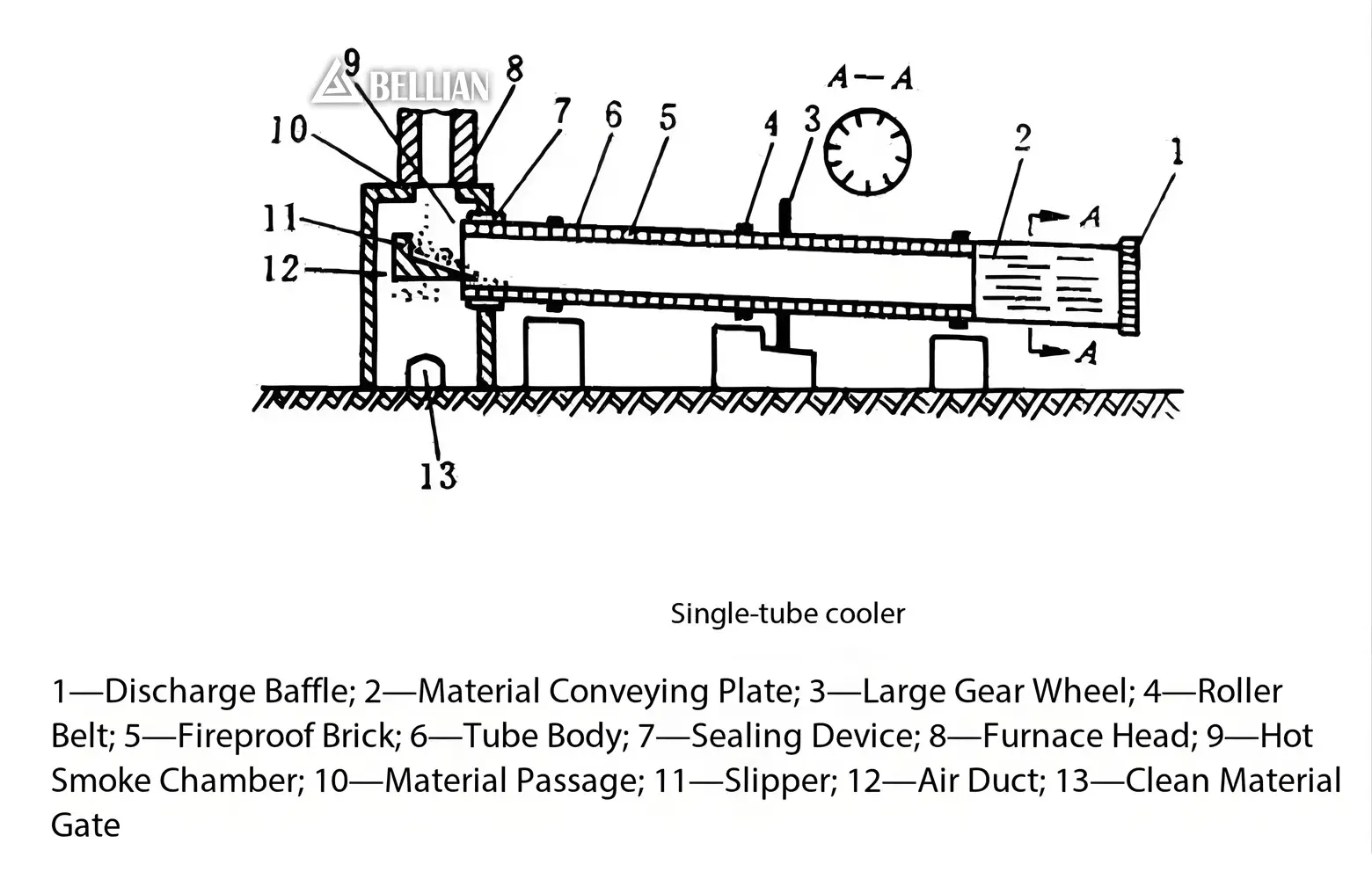

The single‑tube rotary cooler is installed with a small inclination angle. Driven by the motor and reducer, the cylinder rotates slowly. High‑temperature clinker enters the cylinder from the feed end, moves to the discharge end under the action of gravity and rotation. Natural air enters from the discharge end and flows opposite to the material. After full counter‑current heat exchange, the clinker is cooled to low temperature, and the hot air after heat exchange returns to the rotary kiln for combustion supporting, realizing waste heat recycling.
Key Features
Simple & Durable Structure: Integral thick‑wall cylinder with refractory lining, stable operation, long service life.
Low Operating Cost: Few vulnerable parts, low maintenance workload, greatly saving later‑stage investment.
High Heat Recovery Efficiency: Recover waste heat of high‑temperature clinker to improve overall thermal efficiency of the kiln system.
Wide Application: Suitable for cement clinker, lime, mineral slag, chemical material cooling and other industries.
Customizable Service: Various specifications available, can be customized according to customer production line capacity.
Technical Parameters
| Spec (m) | Cylinder | Motor | Reducer Model | Overall Size(L×W×H)(mm) | Weight (t) | |||
| Volume (m³) | Speed (rpm) | Inclination (%) | Model | Power(kW) | ||||
| Φ1x15 | 11.8 | 5 | 5 | YCT200-4B | 7.5 | ZQ400 | 15000x1876x2069 | 9.5 |
| Φ1.2x12 | 13.57 | 5 | 5 | YCT225-4A | 11 | ZQ500 | 12000x2159x2475 | 10.3 |
| Φ1.2x15 | 17 | 4-5 | 5 | YCT225-4B | 15 | ZQ500 | 15000x2294x2475 | 12.8 |
| Φ1.2x20 | 22.6 | 4-5 | 5 | YCT225-4B | 15 | ZQ500 | 20000x2294x2475 | 16.8 |
| Φ1.5x10 | 17.67 | 3-5 | 5 | YCT225-4B | 15 | ZQ650 | 10000x2655x2895 | 16.5 |
| Φ1.5x14 | 24.9 | 3-5 | 5 | YCT225-4B | 15 | ZQ650 | 14000x2655x2895 | 19.2 |
| Φ1.5x18 | 31.8 | 3-5 | 5 | YCT250-4A | 18.5 | ZQ650 | 18000x2655x2895 | 22.9 |
| Φ1.5x20 | 35.3 | 3-5 | 5 | YCT250-4A | 18.5 | ZQ650 | 20000x2655x2895 | 25.4 |
| Φ1.8x16 | 30.5 | 3-5 | 4 | YCT250-4B | 22 | ZQ750 | 16000x3060x2980 | 35.4 |
| Φ1.8x18 | 45.8 | 3-5 | 4 | YCT250-4B | 22 | ZQ750 | 18000x3060x2980 | 32.3 |
| Φ1.8x20 | 50.9 | 3-5 | 4 | YCT250-4B | 22 | ZQ750 | 20000x3060x2980 | 39.2 |
| Φ2.0x16 | 50.3 | 3-5 | 3.5 | YCT250-4B | 22 | ZQ750 | 16000x3340x3420 | 38.6 |
| Φ2.0x20 | 62.8 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 | 20000x3340x3420 | 42.8 |
| Φ2.2x14 | 53.2 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 | 14000x3620x3570 | 45.3 |
| Φ2.2x18 | 68.4 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 | 18000x3620x3570 | 49.4 |
| Φ2.2x20 | 76 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 | 20000x3620x3570 | 51.8 |
| Φ2.4x16 | 72.3 | 3-4 | 3.5 | YCT280-4A | 30 | ZQ850 | 16000x3860x3760 | 58.8 |
| Φ2.4x20 | 90.4 | 3-4 | 3.5 | YCT280-4A | 30 | ZQ850 | 20000x3860x3760 | 63.9 |
| Φ2.8x28 | 172 | 2.5 | 3.5 | Y280M-6 | 55 | ZQ1000 | 28000x4350x4200 | 130 |
| Φ3x30 | 212 | 1-2 | 3.5 | Y315S-6 | 75 | ZL115 | 30000x4860x4630 | 169 |
Application Scenarios
Single tube rotary cooler is widely matched with rotary kiln in cement, active lime, metallurgical and chemical industries. It is specially used for cooling high-temperature calcined materials discharged from the rotary kiln. The equipment can effectively cool high-temperature clinker and lime while recycling waste heat, helping enterprises reduce production energy consumption and improve material quality.
Buying Guide
When choosing a single-tube rotary cooler, you should consider: 1. The daily output of the supporting rotary kiln; 2. The maximum material temperature and cooling range; 3. On-site installation space and terrain conditions; 4. Requirements for waste heat recovery. We will provide professional model selection and customized solutions according to your production conditions.
FAQ
What is the cooling temperature range of the rotary cooler?
Our single-tube rotary cooler can cool high-temperature materials of 1000-1200℃ down to below 200℃, fully meeting the requirements of subsequent conveying, storage and processing.
What are the advantages compared with grate cooler?
Compared with grate cooler, the single-tube rotary cooler has simpler structure, lower failure rate, lower investment cost and less maintenance cost. It is more suitable for small and medium production lines with stable operation and long service life.
What materials can the rotary cooler process?
It is mainly used for cement clinker, active lime, calcined ore and other high-temperature granular materials. It is widely applicable to cement plants, lime plants, metallurgical and chemical production lines.
Is the rotary cooler easy to maintain?
Yes. The whole machine has few vulnerable parts, stable transmission system and thickened refractory lining inside. It features low noise, stable operation and convenient daily maintenance, greatly reducing later operating costs.
Can you customize different models?
We support full customization of diameter, length, power and special lining materials. According to your output and site conditions, we can design exclusive rotary cooler solutions for you.
