Products Description

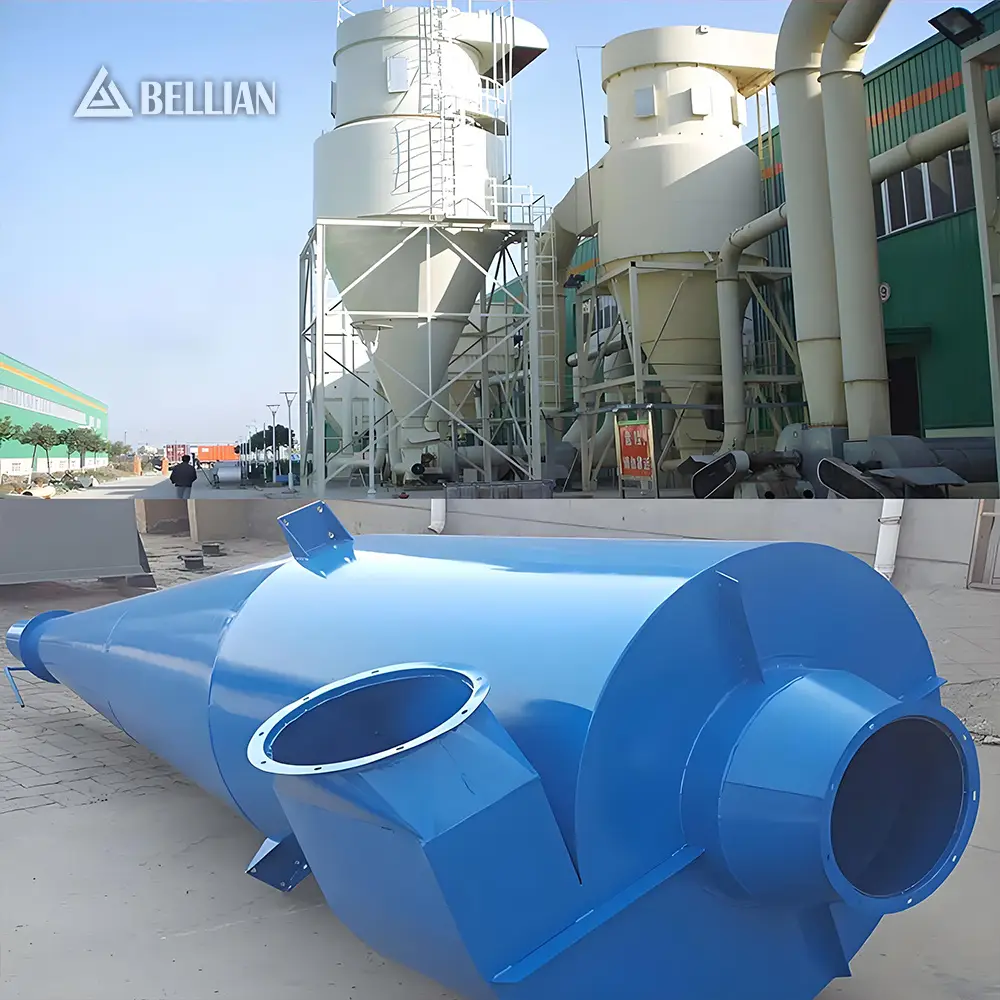

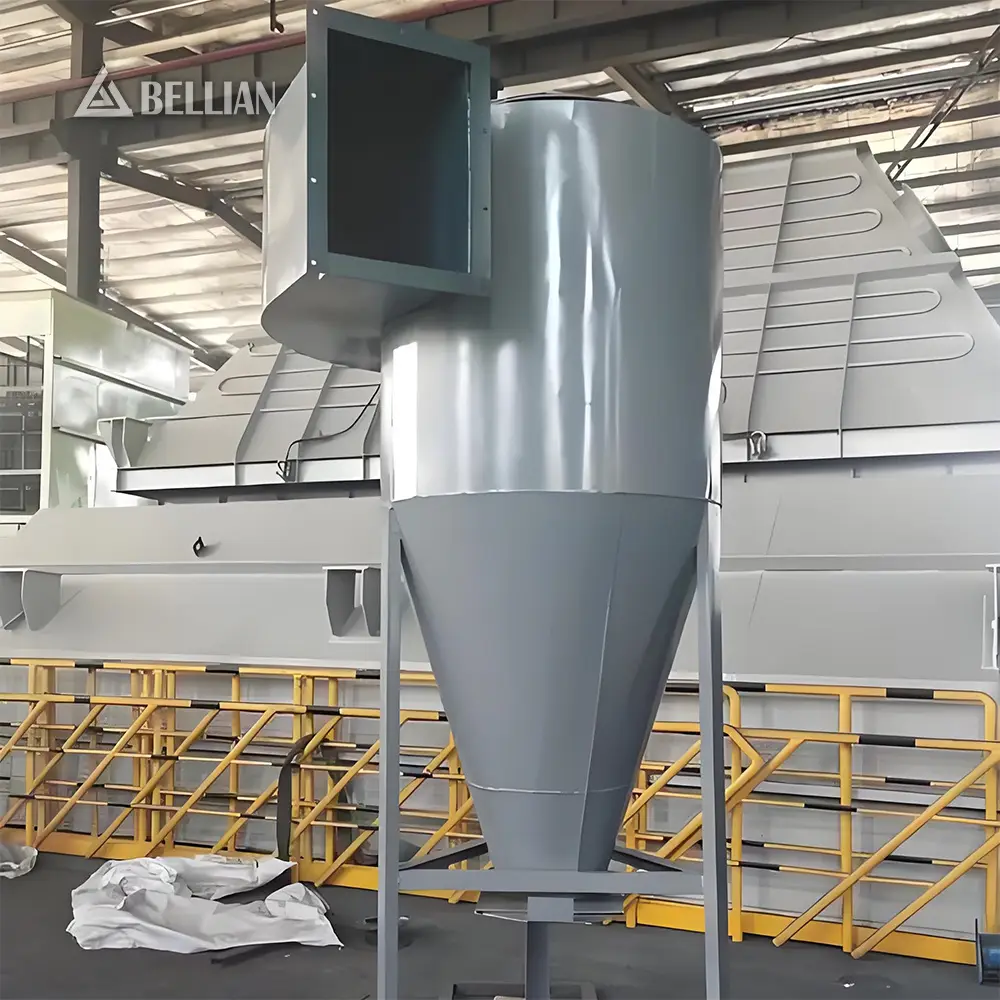

Bellian CLK Series Cyclone Dust Collector is a simple and efficient primary dust separation equipment. It uses centrifugal force to separate dust particles from the gas stream. It is widely used as pre-treatment equipment in dust removal systems to remove large and heavy dust particles, reducing the load on subsequent baghouse dust collectors. Our cyclone dust collector has no moving parts, which means low maintenance cost and long service life. It is the most economical solution for primary dust removal.
Working Principle

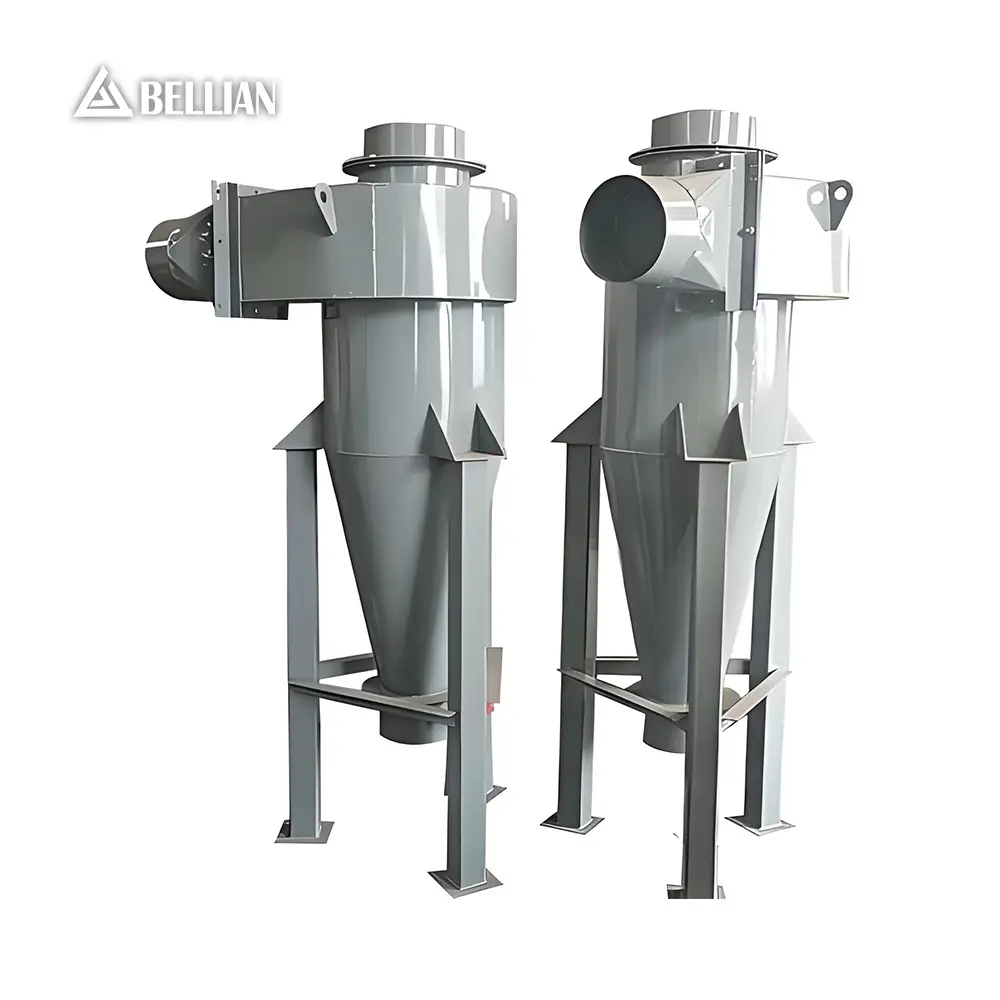

The cyclone dust collector mainly consists of inlet, cylinder, cone, outlet and dust hopper. Dust-laden gas enters the cyclone tangentially at high speed, forming a rotating spiral flow. Under the action of centrifugal force, the dust particles are thrown to the inner wall of the cylinder and fall down into the dust hopper. The clean gas rotates upward and is discharged from the central outlet. The separation efficiency is higher for larger and heavier dust particles.
Performance Features
Simple structure, no moving parts, reliable operation, almost no maintenance
Low investment cost, high cost performance
High separation efficiency for coarse dust particles above 10μm
Can handle high temperature gas up to 400℃ with special material
Small floor area, easy installation and operation
Can be used alone or in combination with other dust removal equipment
Technical Specifications
| Model | Cylinder Diameter (mm) | Air Volume (m³/h) | Pressure Loss (Pa) | Separation Efficiency (%) | Weight (kg) |
|---|---|---|---|---|---|
| CLK200 | 200 | 1,000-2,000 | 800-1200 | ≥85 | 50 |
| CLK300 | 300 | 2,000-4,000 | 800-1200 | ≥85 | 80 |
| CLK400 | 400 | 4,000-7,000 | 800-1200 | ≥85 | 120 |
| CLK500 | 500 | 7,000-11,000 | 800-1200 | ≥85 | 180 |
| CLK600 | 600 | 11,000-16,000 | 800-1200 | ≥85 | 250 |
| CLK800 | 800 | 16,000-28,000 | 800-1200 | ≥85 | 450 |
| CLK1000 | 1000 | 28,000-40,000 | 800-1200 | ≥85 | 700 |
| CLK1200 | 1200 | 40,000-50,000 | 800-1200 | ≥85 | 1000 |
Application Scenarios

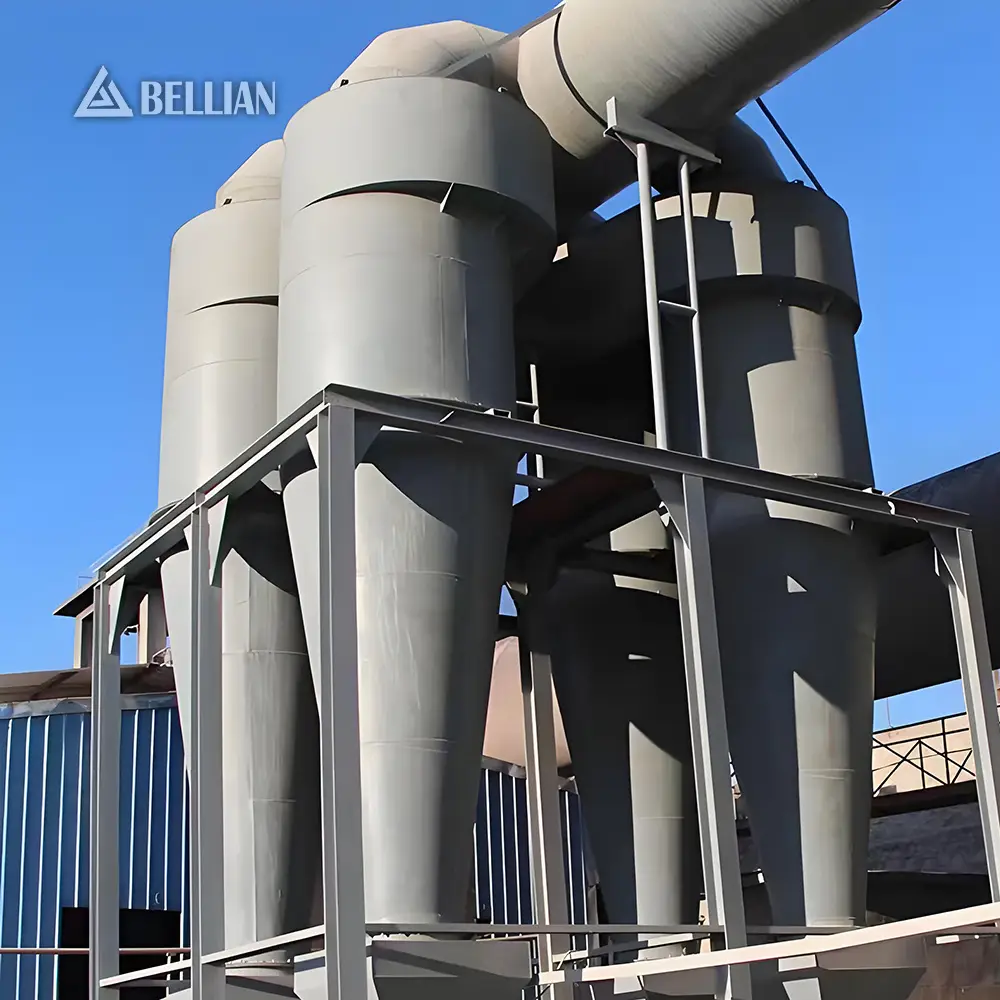

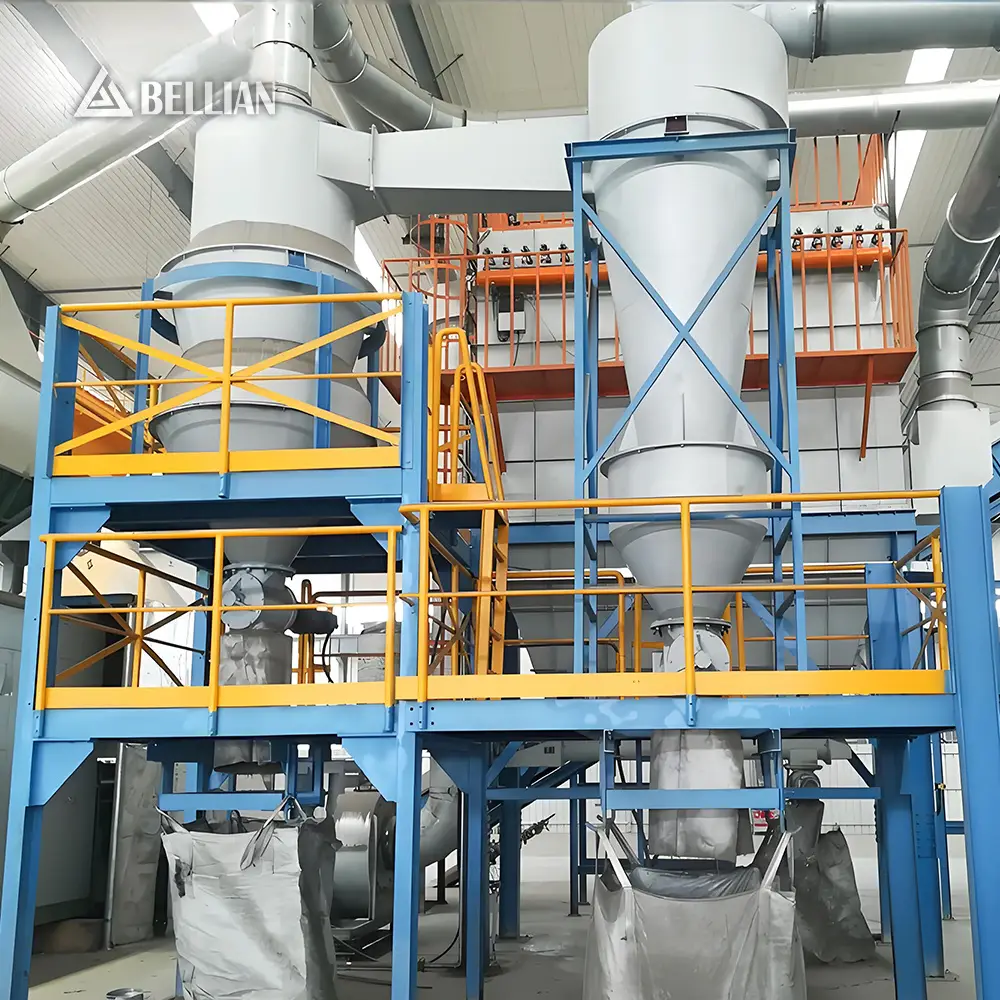

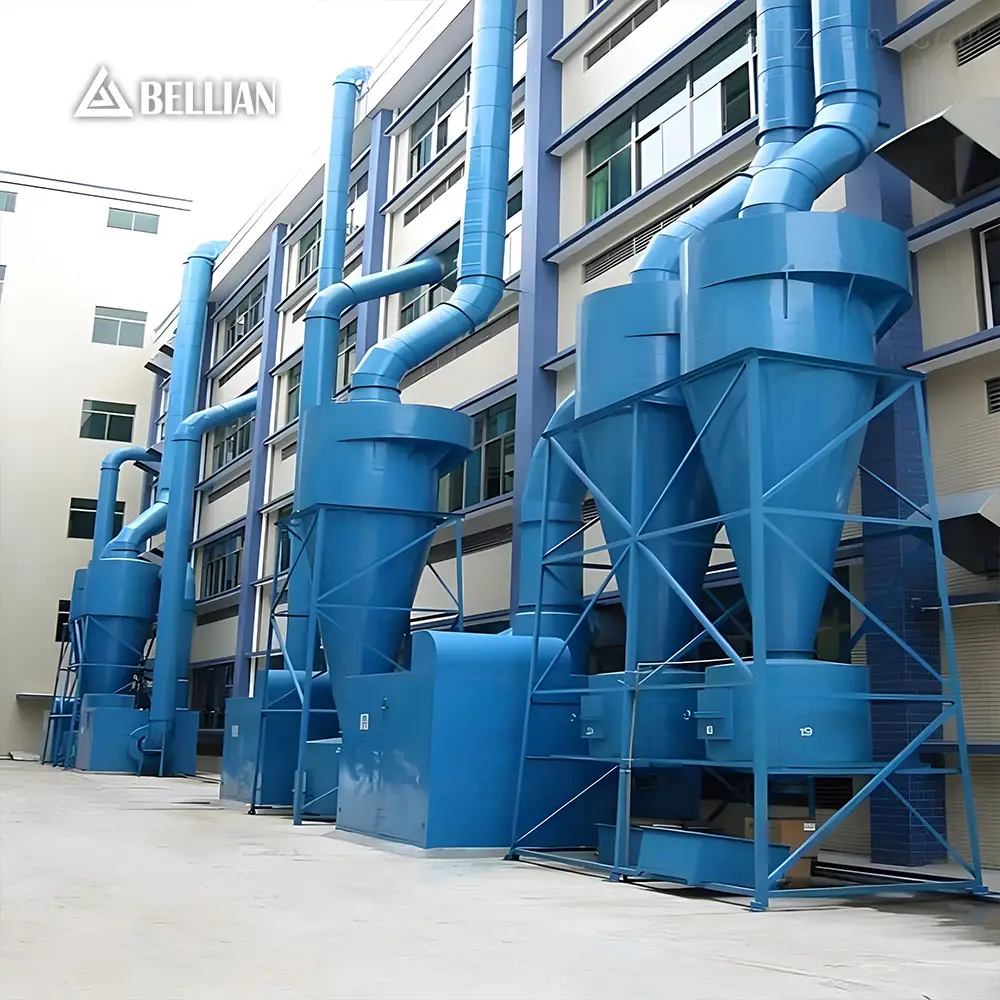

Widely used in mining, quarry, cement plant, power plant, wood processing plant, grain processing plant and other industries. Suitable for primary separation of various coarse dust particles such as ore dust, coal dust, wood dust, grain dust, etc. It is usually used as pre-treatment equipment before baghouse dust collectors to extend their service life.
Buying Guide
When choosing a cyclone dust collector, you should consider: 1. The required air volume; 2. The dust particle size distribution; 3. The temperature and humidity of the gas; 4. The required separation efficiency. We will recommend the most suitable model according to your specific requirements.
FAQ
What is the separation efficiency of the cyclone dust collector?
Our cyclone dust collector has a separation efficiency of more than 85% for dust particles above 10μm. For larger particles above 20μm, the separation efficiency can reach more than 95%. It is not suitable for separating fine dust particles below 5μm.
Can the cyclone dust collector be used alone?
Yes, the cyclone dust collector can be used alone for applications where only coarse dust removal is required. For applications requiring high dust removal efficiency, it should be used in combination with a baghouse dust collector.
What is the maximum temperature that the cyclone can handle?
Our standard carbon steel cyclone can handle gas temperature up to 250℃. For higher temperature gas up to 400℃, we can provide stainless steel cyclone with high temperature resistant coating.
How to prevent dust blockage in the cyclone?
To prevent dust blockage, you should ensure that the dust hopper is emptied regularly. We can also provide a vibrator or air cannon at the dust hopper to help discharge the dust smoothly.
