Products Description

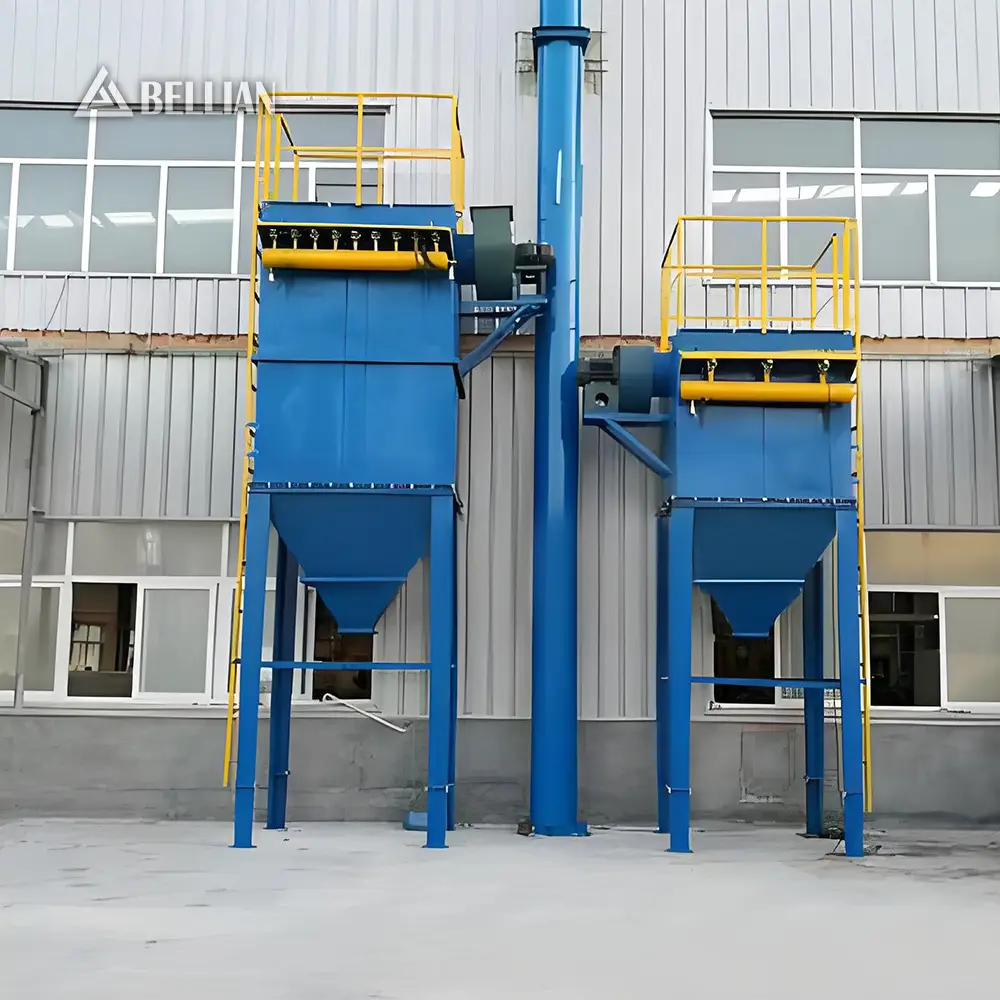

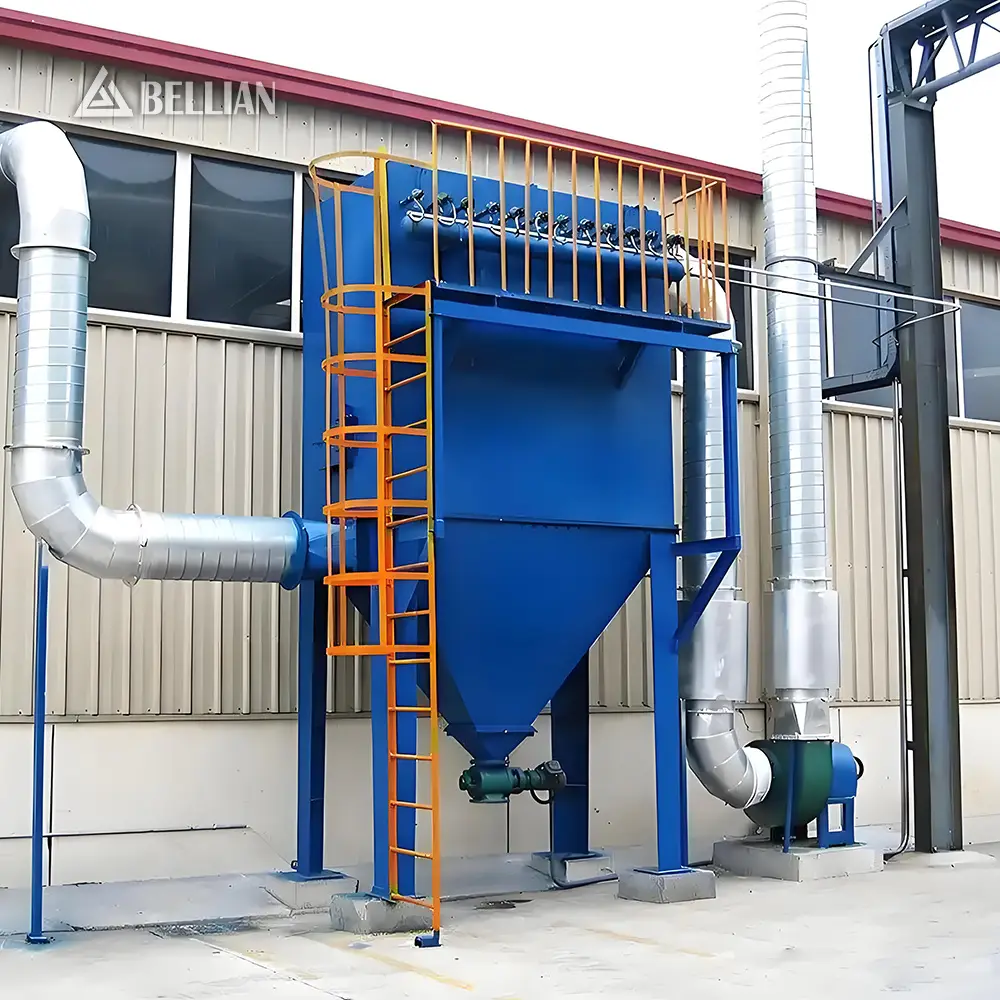

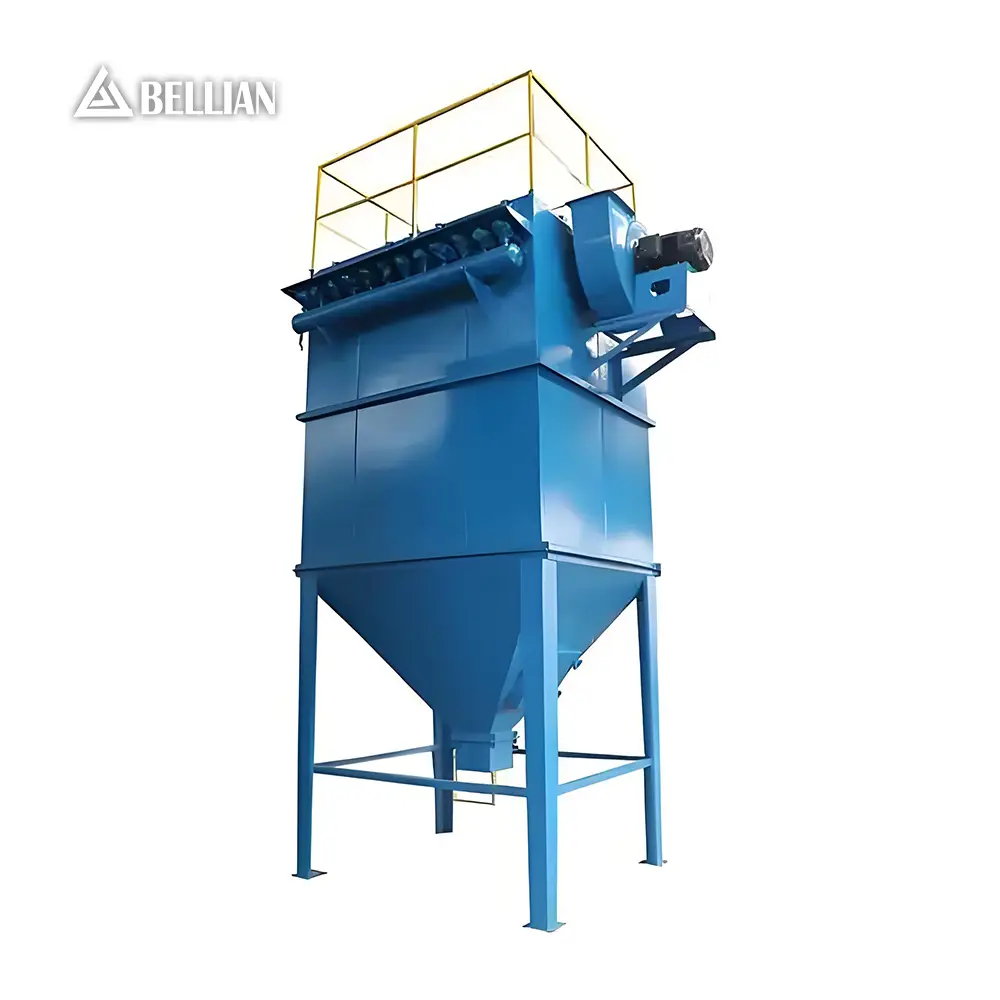

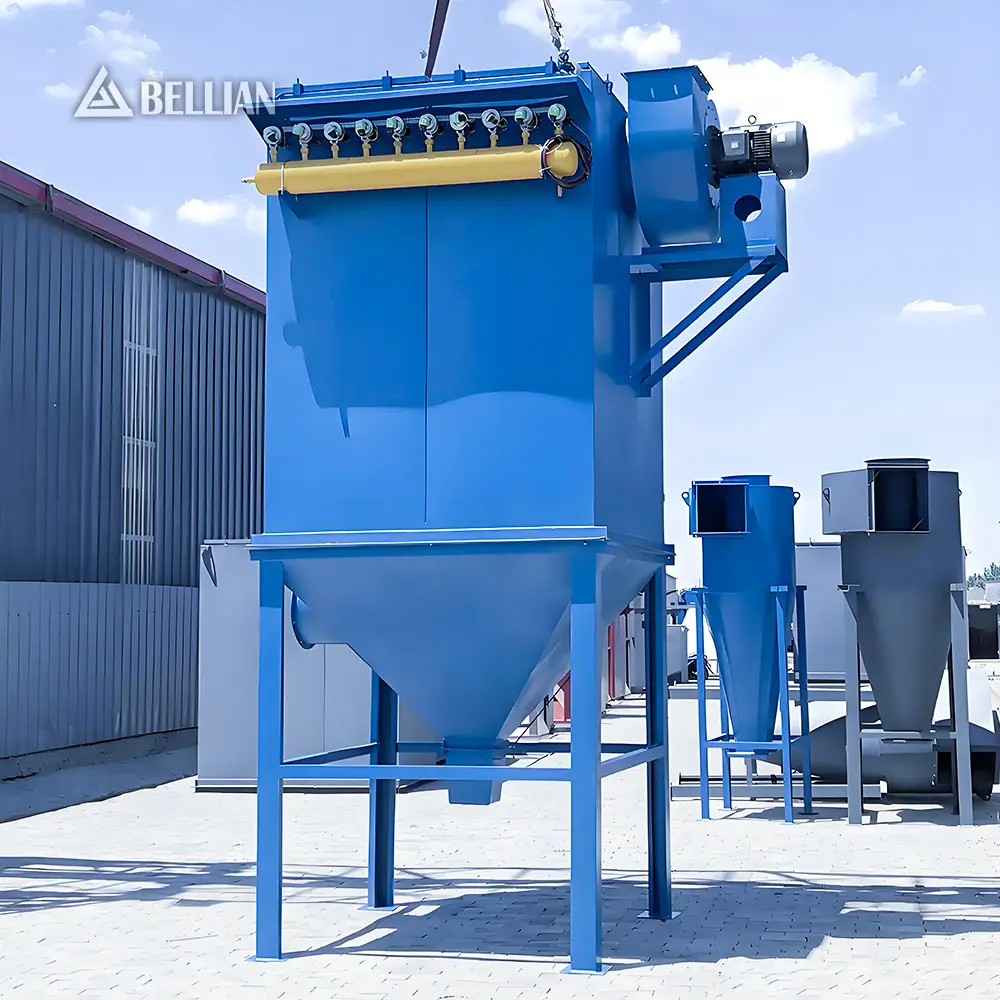

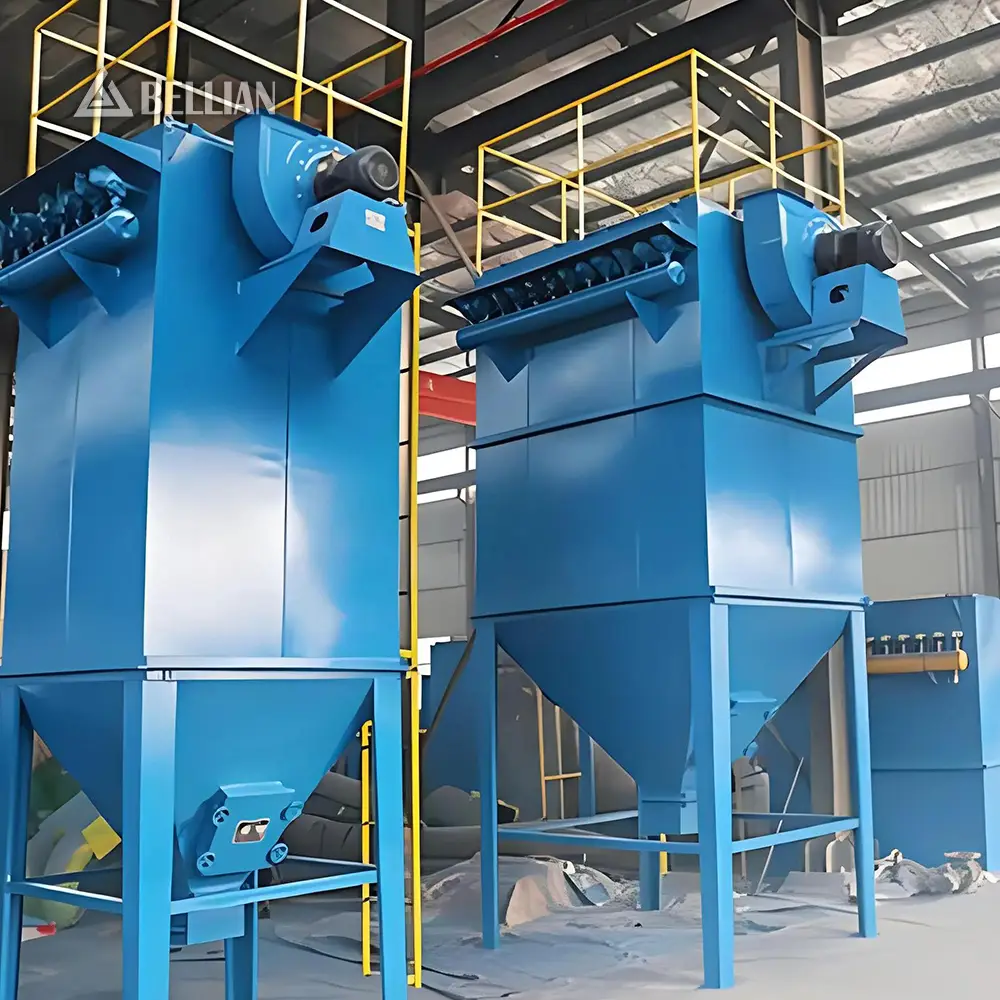

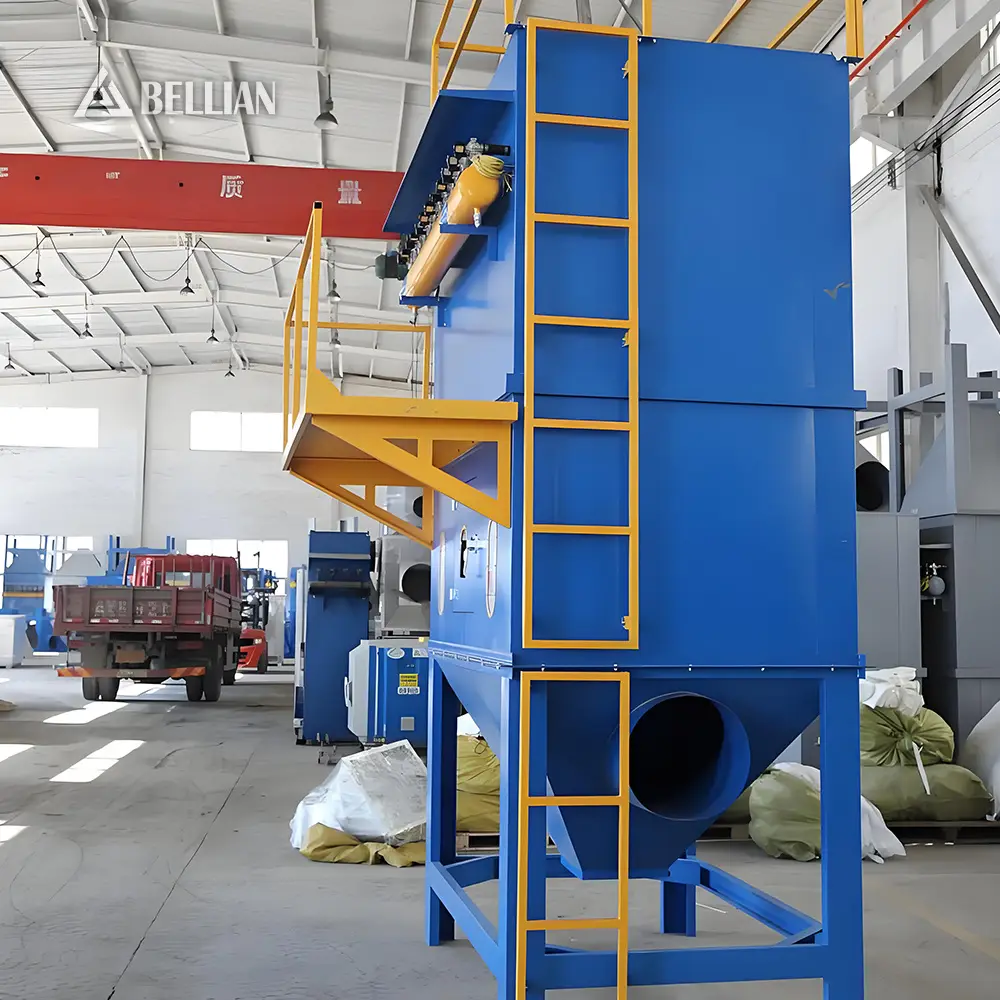

Bellian DMC Series Single Unit Pulse Dust Collector is a compact and portable dust removal equipment specially designed for small and medium-sized equipment and workshops. It integrates fan, filter and cleaning system in one unit, which can be directly installed on the top of the equipment or placed beside it. Our single unit dust collector adopts pulse jet cleaning technology, which has high dust removal efficiency and low noise. It is the ideal solution for local dust removal in workshops.
Working Principle
The single unit pulse dust collector mainly consists of filter cartridges, pulse valves, fan, cleaning system and control box. Dust-laden gas is sucked into the dust collector by the fan. The dust particles are captured on the outer surface of the filter cartridges, while the clean gas passes through the filter cartridges and is discharged. When the dust layer reaches a certain thickness, the pulse valve opens automatically to clean the filter cartridges. The dust falls into the dust drawer at the bottom, which can be easily removed and cleaned.
Performance Features
Integrated design, compact structure, small floor area
Easy installation, no need for complex pipeline, plug-and-play operation
High-quality filter cartridges, large filtration area, long service life
Low noise operation, below 75dB, suitable for workshop environment
Automatic pulse cleaning system, no manual cleaning required
Equipped with casters for easy movement between different workstations
Technical Specifications
| Model | Number of Cartridges | Filtration Area (m²) | Air Volume (m³/h) | Power (kW) | Noise (dB) |
|---|---|---|---|---|---|
| DMC-24 | 4 | 24 | 1,000-2,000 | 2.2 | ≤72 |
| DMC-36 | 6 | 36 | 2,000-3,500 | 3 | ≤72 |
| DMC-48 | 8 | 48 | 3,500-5,000 | 4 | ≤75 |
| DMC-64 | 10 | 64 | 5,000-7,000 | 5.5 | ≤75 |
| DMC-80 | 12 | 80 | 7,000-9,000 | 7.5 | ≤75 |
| DMC-96 | 16 | 96 | 9,000-12,000 | 11 | ≤78 |
| DMC-120 | 20 | 120 | 12,000-15,000 | 15 | ≤78 |
Application Scenarios
Widely used in workshops for local dust removal of small and medium-sized equipment such as grinders, mixers, packaging machines, welding stations, etc. Suitable for collecting various dry dust particles such as workshop dust, welding fume, grinding dust, packaging dust, etc. It is especially suitable for factories that cannot install large central dust removal systems.
Buying Guide
When choosing a single unit pulse dust collector, you should consider: 1. The required air volume; 2. The type and concentration of dust; 3. The installation space; 4. The noise requirements. We will recommend the most suitable model according to your specific requirements.
FAQ
Can the single unit dust collector be moved?
Yes, our single unit dust collector is equipped with casters, which can be easily moved between different workstations. This is very convenient for workshops with multiple dust sources that need to be treated alternately.
How often do the filter cartridges need to be replaced?
The service life of the filter cartridges depends on the dust concentration and properties. For general workshop dust, the service life is about 6-12 months. For high concentration or abrasive dust, the service life is about 3-6 months. We provide high-quality filter cartridges with preferential prices.
Is the dust collector easy to maintain?
Yes, the dust collector is very easy to maintain. The dust drawer at the bottom can be easily pulled out for cleaning. The filter cartridges can be replaced quickly without any special tools. We will provide detailed maintenance instructions for your operators.
Can the dust collector handle welding fume?
Yes, our single unit dust collector can handle welding fume. We can provide special filter cartridges with activated carbon layer to absorb harmful gases in welding fume, providing a healthier working environment.
