Products Description

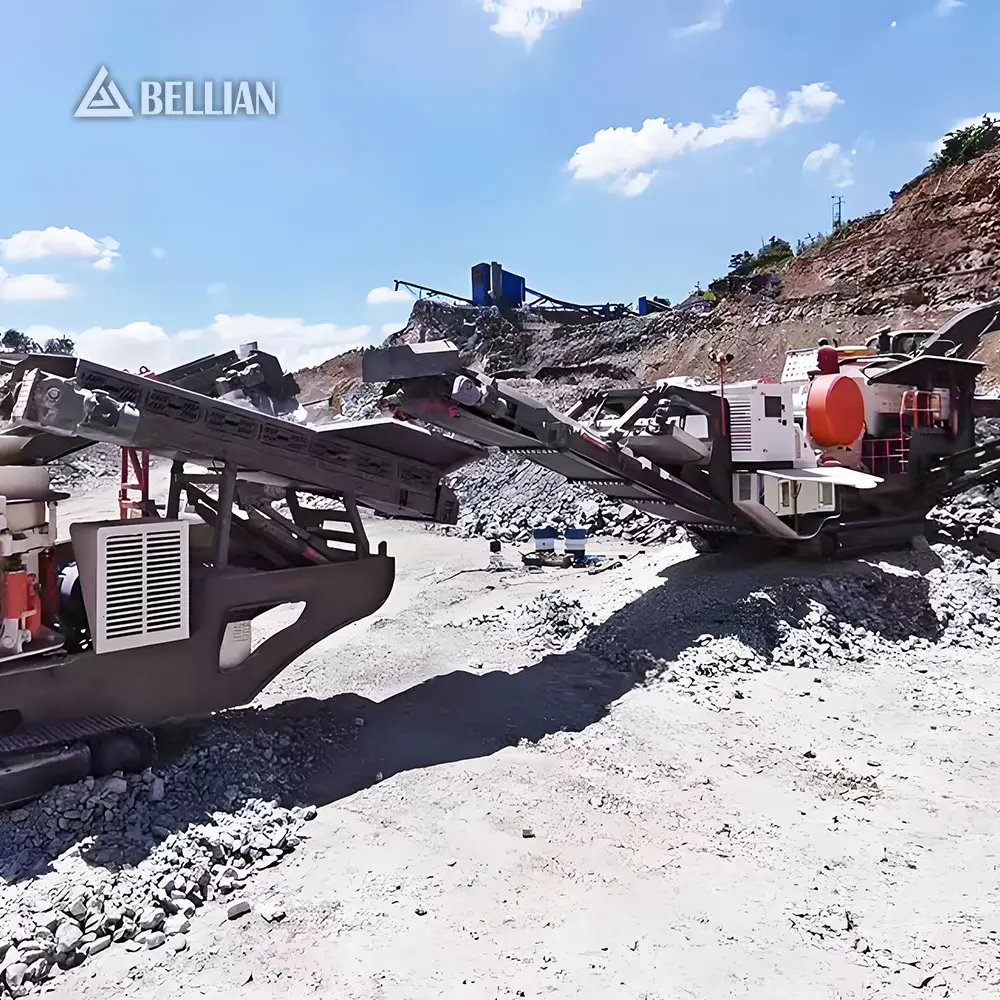

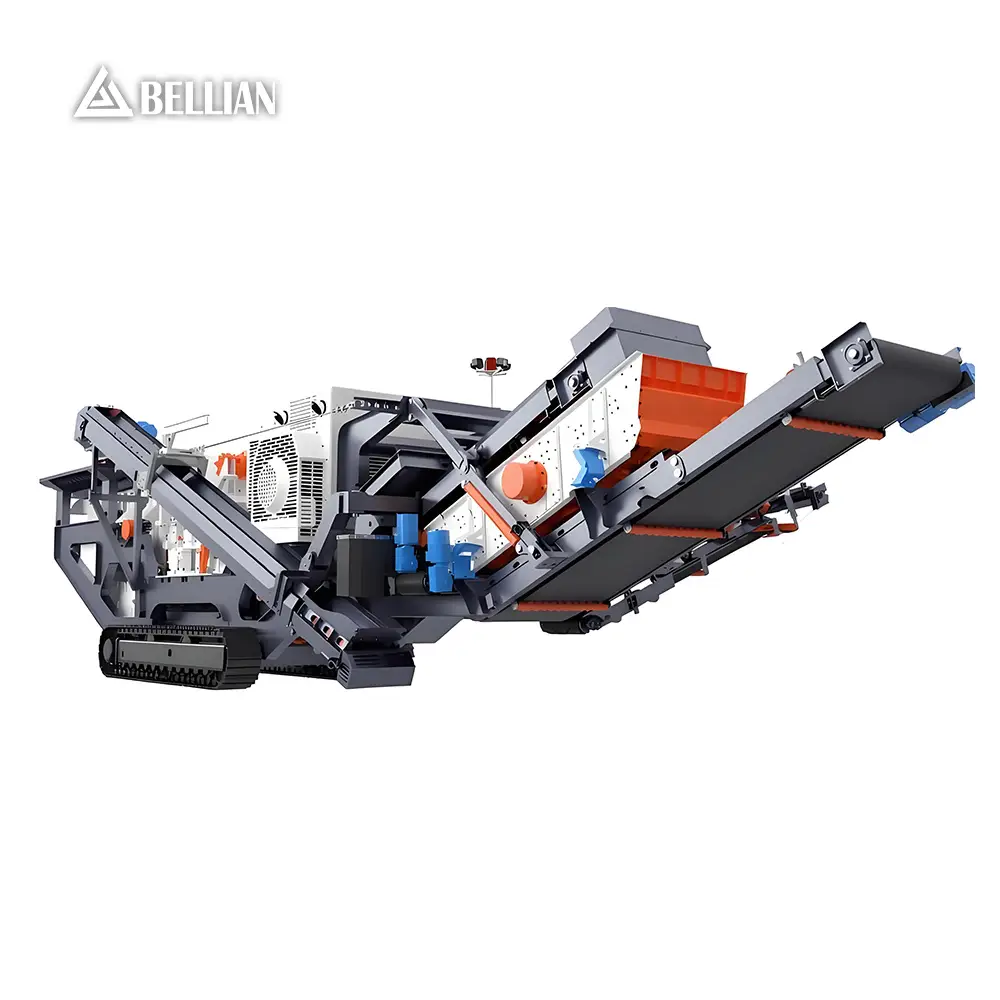

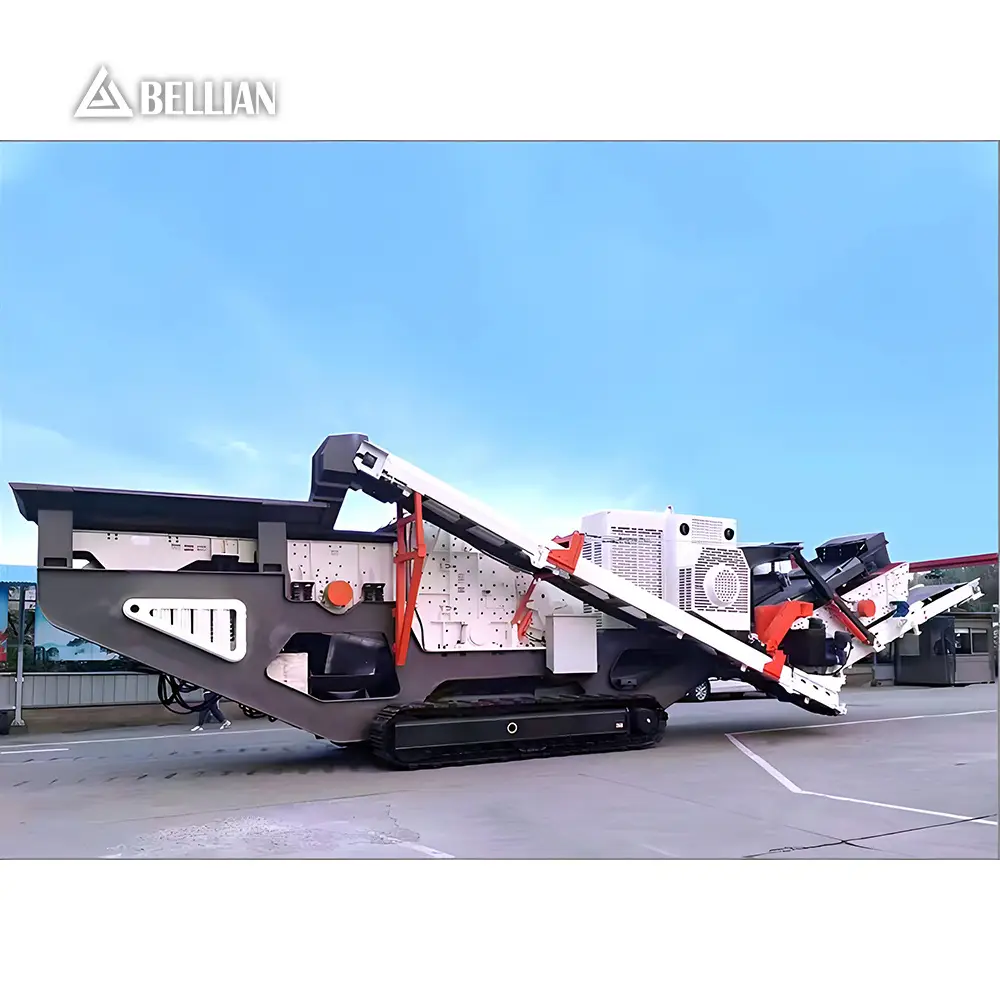

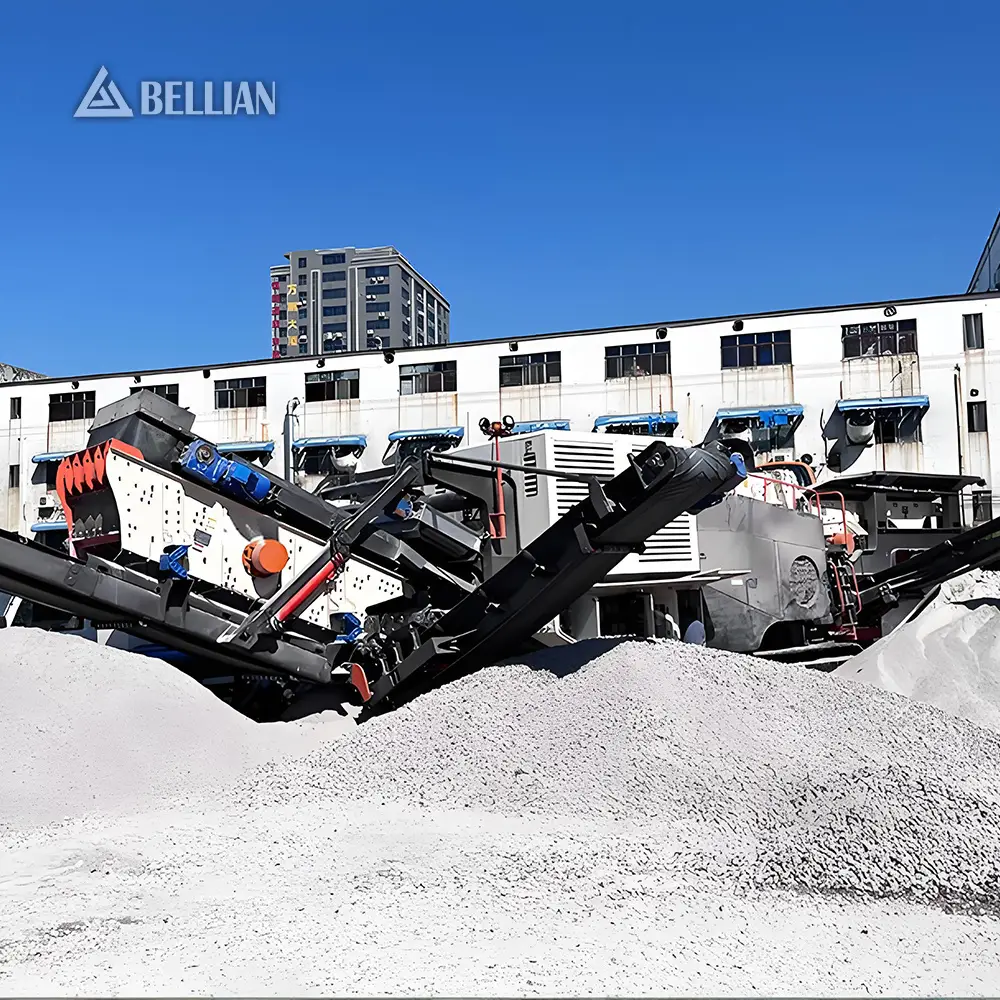

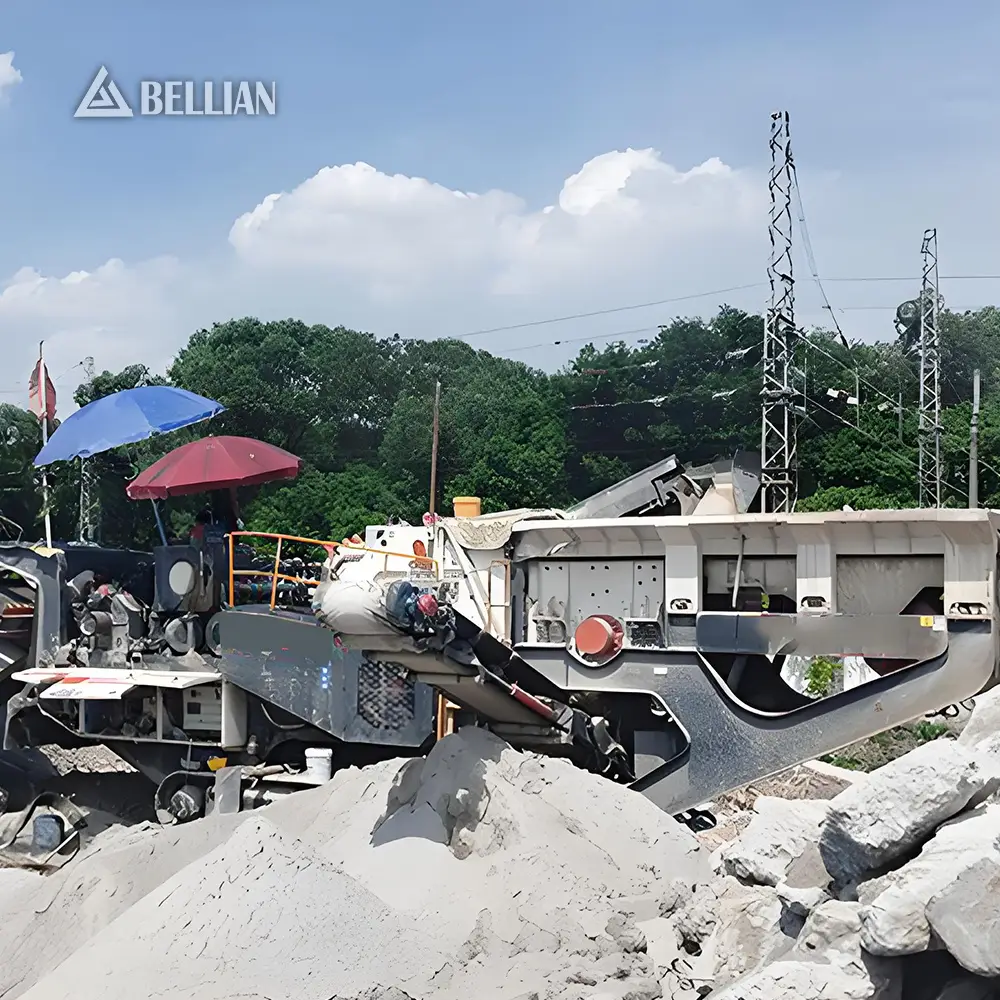

Bellian Mobile Crushing Station is a new type of mobile crushing equipment that integrates crushing, screening and conveying systems on a mobile chassis. It can be moved to the construction site directly, eliminating the need for transportation of materials, greatly reducing transportation cost and improving production efficiency. Our Mobile Crushing Station adopts advanced design and manufacturing technology, with reliable performance, easy operation and maintenance. It is widely used in aggregate production, construction waste recycling, road and bridge construction and other industries.
Working Principle

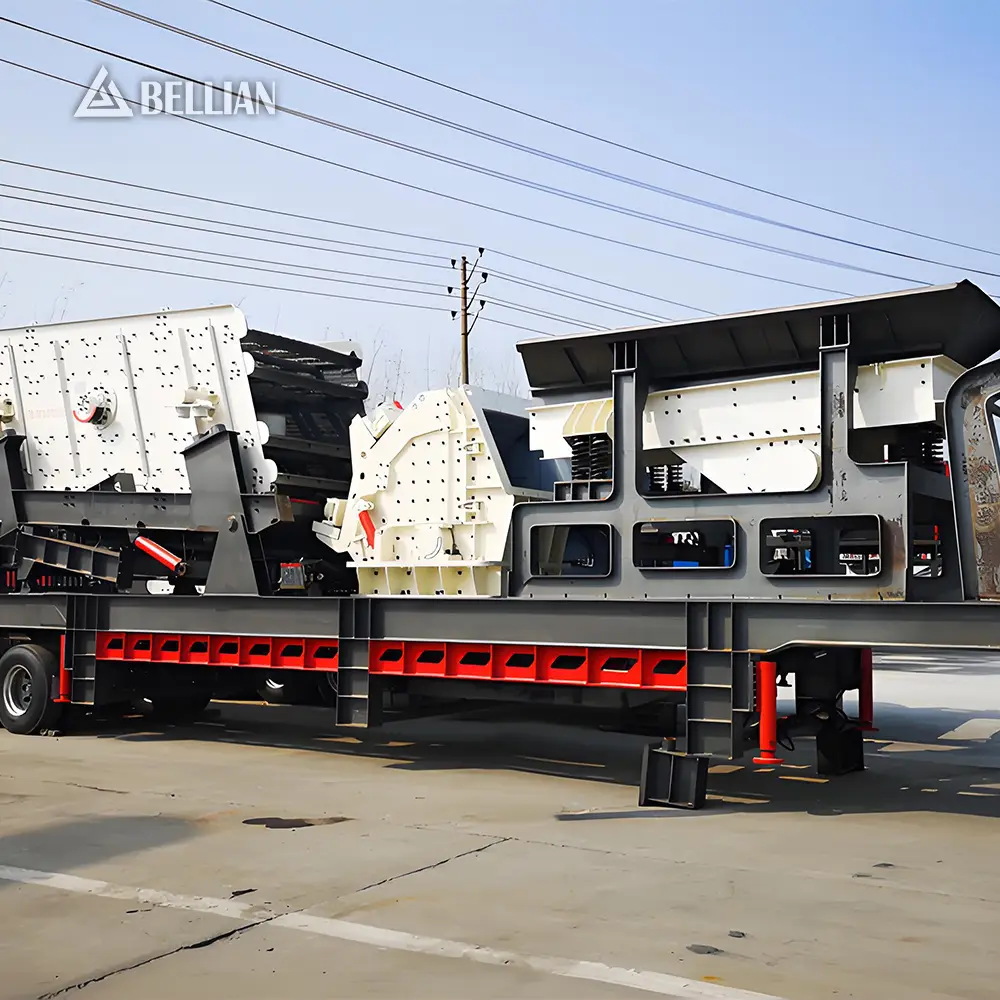

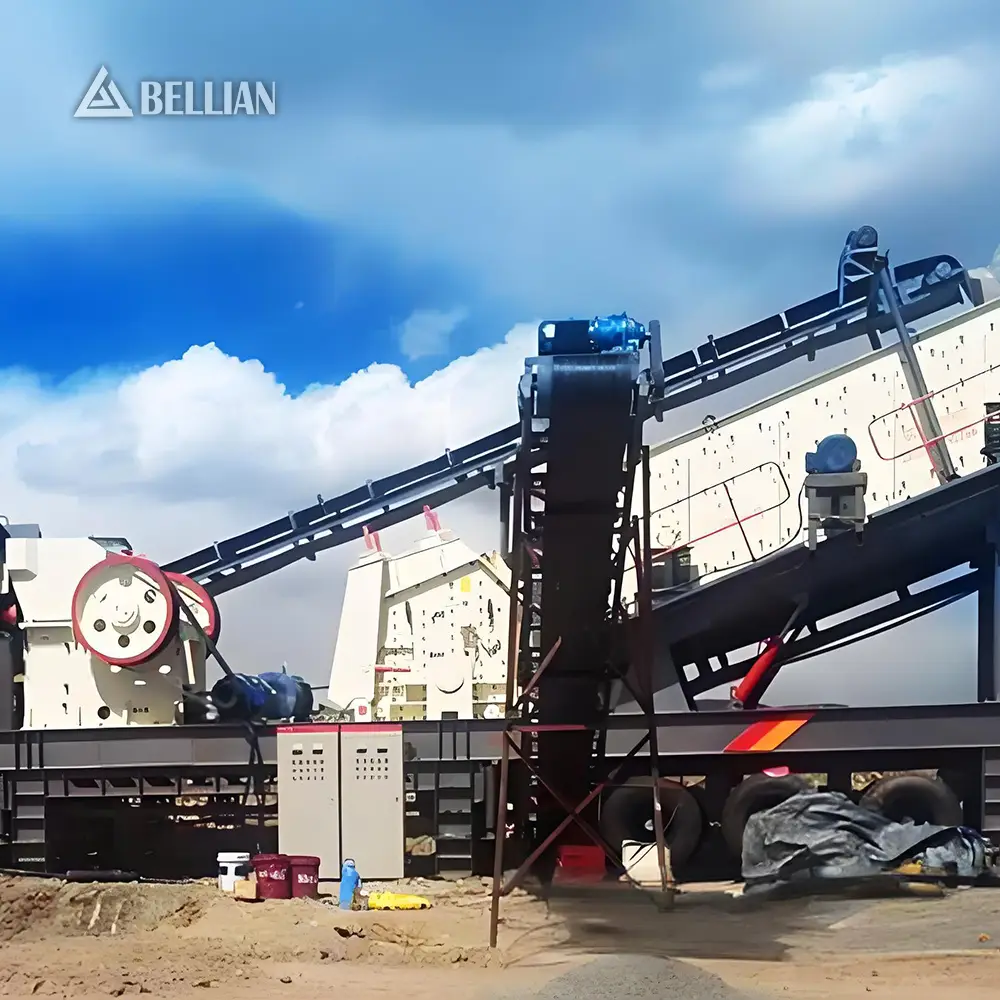

The Mobile Crushing Station mainly consists of mobile chassis, jaw crusher, impact crusher or cone crusher, vibrating screen, belt conveyor, power system and control system. When the machine works, the materials are fed into the jaw crusher for primary crushing. The crushed materials are conveyed to the impact crusher or cone crusher for secondary crushing by the belt conveyor. Then the materials are conveyed to the vibrating screen for classification. The qualified materials are discharged as finished products, while the unqualified materials are returned to the crusher for re-crushing. The whole process is fully automated.
Performance Features
Integrated design of crushing, screening and conveying systems, complete set of equipment, can work independently
High mobility, can be moved to the construction site directly, no need for foundation construction
Quick setup, can be put into production within a few hours after arriving at the site
Flexible configuration, can be equipped with jaw crusher, impact crusher or cone crusher according to different requirements
Equipped with diesel generator, can work in areas without power supply
Remote control operation, safe and convenient, reduces labor intensity
Technical Specifications
| Model | Primary Crusher | Max Feed Size (mm) | Power (kW) | Capacity (t/h) | Weight (t) |
|---|---|---|---|---|---|
| YG93E46 | PE400×600 | 340 | 110 | 10-50 | 35 |
| YG1142E71 | PE600×900 | 500 | 160 | 50-100 | 50 |
| YG1349E91 | PE750×1060 | 630 | 220 | 100-180 | 70 |
| YG1660E110 | PE900×1200 | 750 | 315 | 180-250 | 95 |
| YG2060E140 | PE1200×1500 | 1020 | 450 | 250-300 | 120 |
Application Scenarios
Widely used in aggregate production, construction waste recycling, road and bridge construction, urban infrastructure construction and other industries. Suitable for crushing various materials such as granite, limestone, basalt, river pebble, concrete, construction waste, etc. It is especially suitable for projects with short construction period and frequent site changes.
Buying Guide
When choosing a Mobile Crushing Station, you should consider: 1. The required production capacity; 2. The type and hardness of the materials; 3. The required particle size of the finished products; 4. The site conditions and transportation requirements. We can provide customized solutions according to your specific needs.
FAQ
What is the difference between tire type and crawler type Mobile Crushing Station?
Tire type Mobile Crushing Station is driven by a tractor, has fast moving speed and low cost, suitable for flat sites and short distance movement. Crawler type Mobile Crushing Station is self-propelled, has strong climbing ability and good adaptability to complex terrain, suitable for mountainous areas and construction sites with poor road conditions.
Do I need to build a foundation for the Mobile Crushing Station?
No, the Mobile Crushing Station does not need foundation construction. It can be placed on a flat and solid ground directly. This greatly saves construction time and cost, and makes it easy to change the working site.
Can the Mobile Crushing Station work in areas without power supply?
Yes, our Mobile Crushing Station is equipped with a diesel generator set, which can provide power for the whole equipment. It can work normally in areas without power supply, which is very suitable for remote construction sites.
Do you provide installation and commissioning services?
Yes, we can send professional engineers to your site to guide installation and commissioning, and train your operators. We also provide 12 months warranty and lifetime technical support to ensure your equipment runs smoothly.
