Products Description

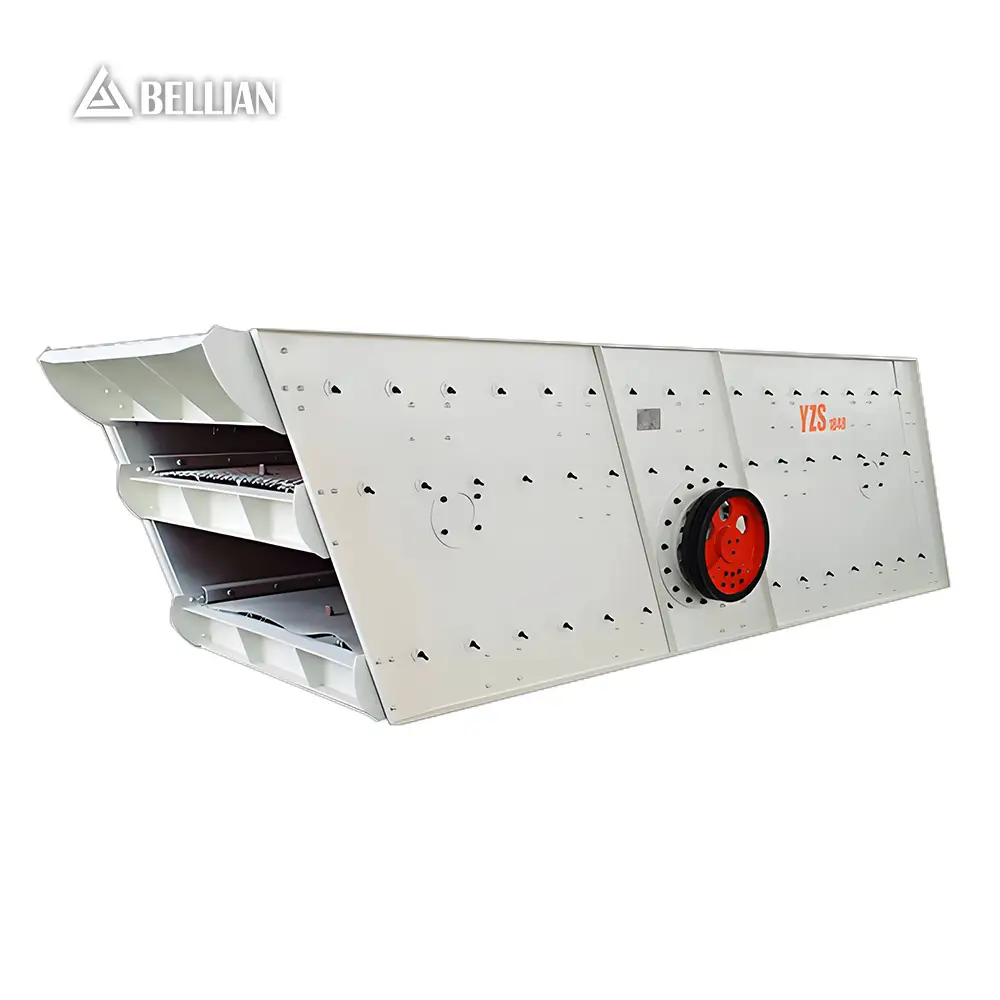

Bellian Vibrating Screen is a high-efficiency screening equipment that uses circular motion to classify materials into different sizes. It is widely used in mining, quarry, aggregate production, coal and other industries. Our Vibrating Screen adopts advanced eccentric shaft vibration exciter and high-quality rubber springs, which has stable vibration, low noise and long service life. It can be equipped with different mesh sizes of screen plates according to different requirements, and can classify materials into 2-5 different sizes at one time.
Working Principle
The Vibrating Screen mainly consists of screen box, screen plate, vibration exciter, spring support, motor and transmission system. When the machine works, the motor drives the eccentric shaft vibration exciter to rotate through the V-belt, generating centrifugal force and making the screen box produce circular motion. The materials on the screen plate are thrown up and forward under the action of vibration. The materials smaller than the screen hole size pass through the screen plate and are discharged from different outlets, while the larger materials are discharged from the end of the screen.
Performance Features
Circular motion vibration, high screening efficiency, large processing capacity
Advanced eccentric shaft vibration exciter, stable vibration, reliable performance
High-quality rubber springs, low noise, good damping effect, long service life
Modular screen plate design, easy to replace, various mesh sizes available
Thickened steel plate screen box, strong structure, can adapt to heavy load working conditions
Simple structure, easy maintenance, low operation cost
Technical Specifications
| Model | Screen Size (m) | Number of Decks | Power (kW) | Capacity (t/h) | Screen Area (m²) |
|---|---|---|---|---|---|
| YK1235 | 1.2×3.5 | 1-3 | 5.5 | 10-50 | 4.2 |
| YK1548 | 1.5×4.8 | 1-3 | 11 | 50-120 | 7.2 |
| YK1860 | 1.8×6.0 | 1-4 | 18.5 | 120-250 | 10.8 |
| YK2160 | 2.1×6.0 | 1-4 | 22 | 200-350 | 12.6 |
| YK2460 | 2.4×6.0 | 1-4 | 30 | 300-500 | 14.4 |
| YK3070 | 3.0×7.0 | 1-4 | 45 | 500-800 | 21.0 |
Application Scenarios

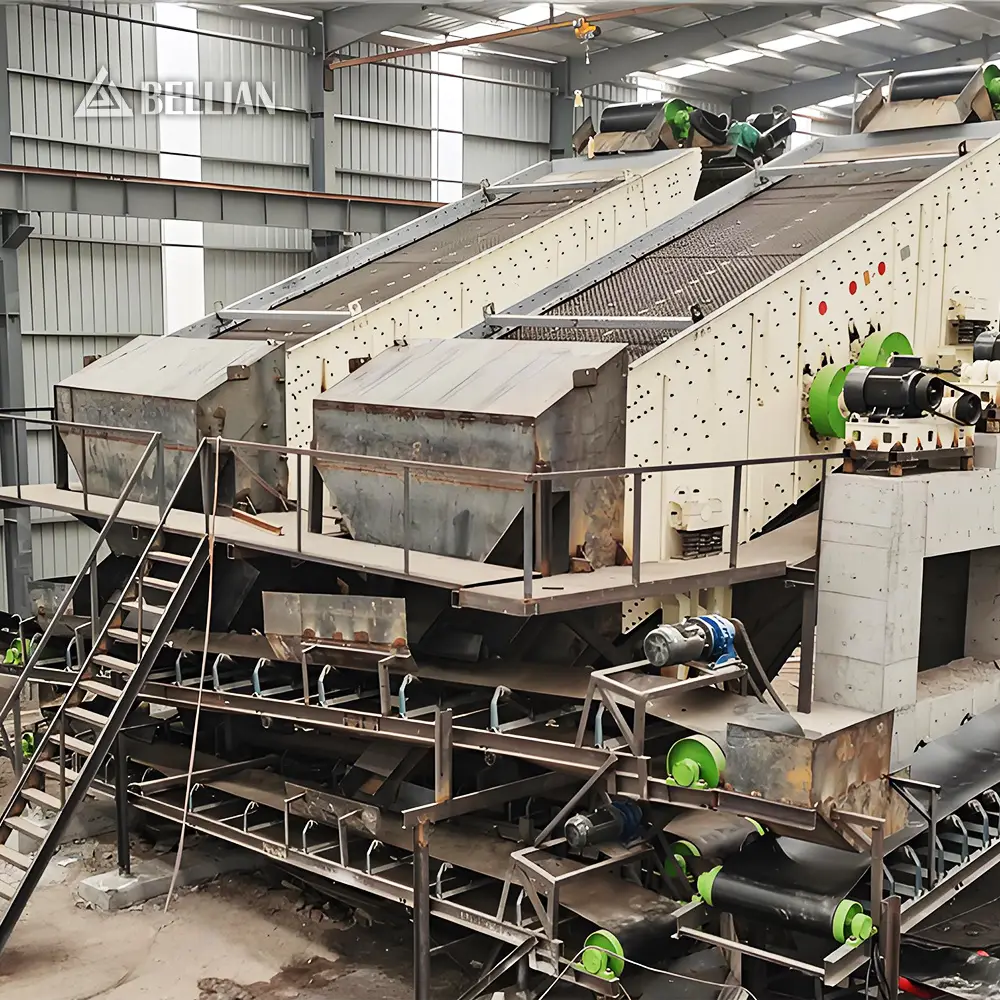

Widely used in mining, quarry, aggregate production, coal, chemical industry and other industries. Suitable for classifying various materials such as aggregate, sand, gravel, coal, ore, etc. It can classify materials into 2-5 different sizes at one time, meeting the requirements of different production processes.
Buying Guide
When choosing a Vibrating Screen, you should consider: 1. The required production capacity; 2. The number of different sizes you need to classify; 3. The particle size distribution of the feed materials; 4. The type and moisture content of the materials. We will recommend the most suitable model and screen mesh size according to your specific requirements.
FAQ
How many decks can the Vibrating Screen have?
Our Vibrating Screen can have 1-4 decks, which can classify materials into 2-5 different sizes at one time. We can customize the number of decks and screen mesh sizes according to your specific requirements.
How to replace the screen plate?
The screen plate adopts modular design, which makes the replacement fast and convenient. You only need to loosen the bolts and replace the damaged screen plate. We will provide detailed operation instructions for your operators.
What should I do if the screen is blocked?
To prevent screen blockage, you should control the feeding speed and ensure that the moisture content of the materials is within the allowable range. If blockage occurs, you should stop the machine immediately and clean the screen. We can also provide anti-blocking screen plates according to your requirements.
What is the service life of the screen plate?
The service life of the screen plate depends on the hardness and abrasiveness of the materials. For soft materials like sand, the service life is about 3-6 months; for hard materials like granite, the service life is about 1-3 months. We provide various types of screen plates with different materials and mesh sizes.
