Products Description
Bellian Machinery provides three types of VSI series vertical shaft impact sand making machines, including basic VSI model, upgraded VSI5X model, and high-end upgraded VSI6X model. All series equipment adopts advanced impact crushing technology, which is suitable for crushing and shaping various hard and medium-hard ores. The machines are widely used in aggregate production, mine crushing, cement industry, highway construction and other fields.
Each model has different configuration specifications, feeding particle sizes, processing capacities and motor power. Customers can select the appropriate equipment according to production scale, material hardness and production requirements. Below are the detailed technical parameter tables of the three series.
1. VSI5X Series Upgraded Sand Making Machine Parameters
VSI5X series is the upgraded version of the basic VSI sand maker. It optimizes the spindle rotation system and crushing cavity structure, featuring higher production efficiency, more stable operation and lower failure rate. It is the cost-effective choice for medium and large sand making production lines.
| Model | Soft Material | Hard Material | Cascade & Center Feeding | Full Center Feeding | Spindle Speed (r/min) | Power (kw) |
| Max. Feeding Size (mm) | Capacity (t/h) | |||||
| VSI5X7615 | 35 | 30 | 150-280 | 70-140 | 1700-1900 | 75×2 |
| VSI5X8522 | 40 | 35 | 240-380 | 120-190 | 1500-1700 | 110×2 |
| VSI5X9532 | 45 | 40 | 350-540 | 180-280 | 1300-1510 | 160×2 |

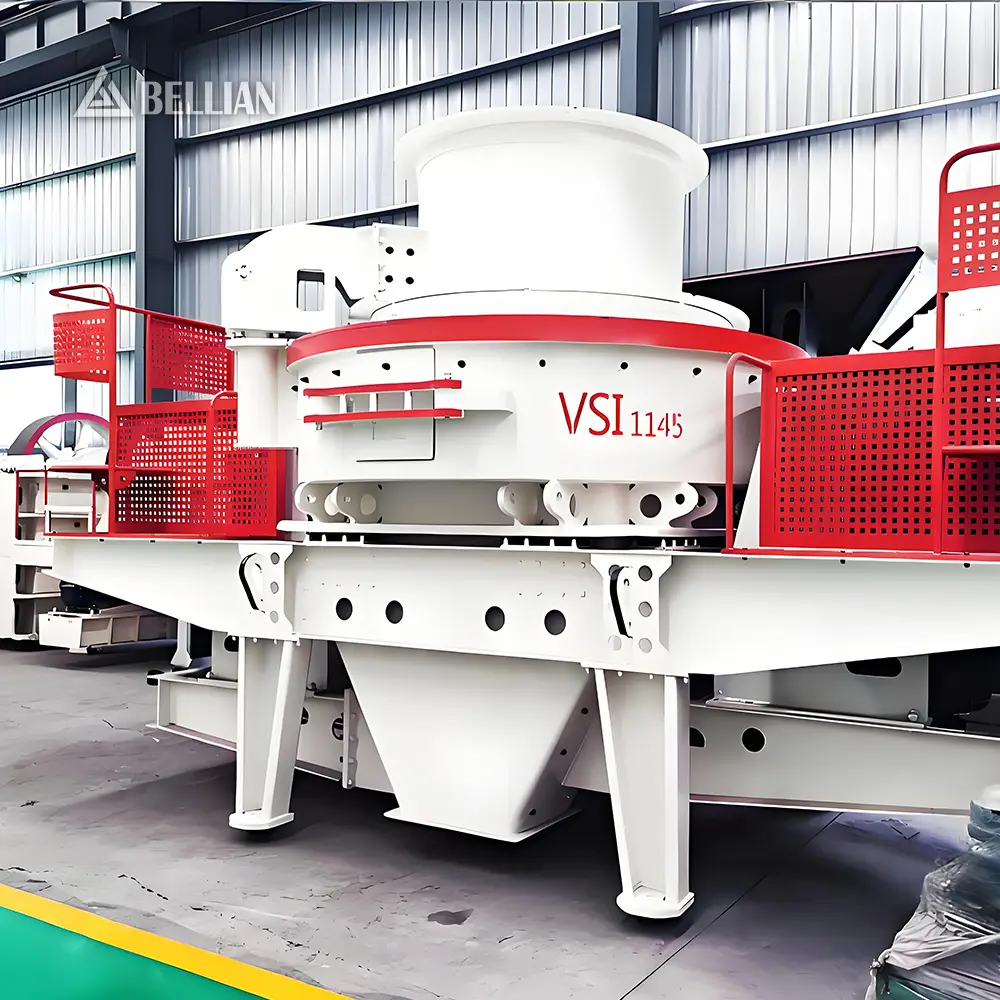

| VSI5X1145 | 50 | 45 | 500-640 | 250-360 | 1100-1310 | 220×2 |
2. VSI Basic Series Sand Making Machine Parameters
The VSI basic model is the original standard vertical shaft impact crusher. It has a simple structure, easy operation and low manufacturing cost. It is suitable for small and medium-sized production lines with conventional crushing requirements, and ideal for beginners in the sand and gravel industry.
| Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | |
| Capacity (t/h) | Central & Cascade Feeding | 120‑180 | 200‑260 | 300‑380 | 450‑520 |
| Full Central Feeding | 60‑90 | 100‑130 | 150‑190 | 225‑260 | |
| Max Feed Size (mm) | Soft Material | ≤35 | ≤40 | ≤45 | ≤50 |
| Hard Material | ≤30 | ≤35 | ≤40 | ≤45 | |
| Rotating Speed (r/min) | 1700‑1890 | 1520‑1690 | 1360‑1510 | 1180‑1310 | |
| Dual Motor Power (kW) | 110‑150 | 180‑220 | 264‑320 | 400‑440 | |
| Overall Dimension (L×W×H, mm) | 3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | |
| Weight (t) | 7.8 | 10.3 | 16 | 25.6 | |
| Power Supply | 380V, 50Hz | ||||
3. VSI6X Series High-end Upgraded Sand Making Machine Parameters
VSI6X series is the latest upgraded high-performance sand making machine. It adopts optimized impeller design, upgraded wear-resistant parts and intelligent noise reduction system. This model has larger processing capacity, longer service life of wearing parts, lower energy consumption, and is the preferred equipment for large-scale, high-standard sand and gravel production lines.
| Model | Sanding making | Reshaping | Sanding making | Reshaping | Speed (r/min) | Power (kW) | Overall dimension (mm) |
| Maximum feeding size (mm) | Throughput (t/h) | ||||||
| VSI6X8015 | ≤35 | ≤45 | 109-117 | 131-214 | 1300-1700 | 75×2 | 4100×2300×2750 |
| VSI6X9026 | ≤40 | ≤50 | 167-179 | 200-313 | 1200-1500 | 132×2 | 4200×2400×3150 |
| VSI6X1040 | ≤45 | ≤55 | 264-283 | 317-495 | 1100-1400 | 200×2 | 4880×2560×3725 |
| VSI6X1150 | ≤50 | ≤60 | 344-368 | 413-644 | 1000-1300 | 250×2 | 5500×2750×3950 |
| VSI6X1263 | ≤50 | ≤60 | 454-486 | 545-849 | 900-1200 | 315×2 | 5700×2980×4190 |
| VSI6X1380 | ≤50 | ≤60 | 601-643 | 721-1125 | 800-1100 | 400×2 | 7900×3260×4183 |
| VSI6X13100 | ≤50 | ≤60 | 738-839 | 940-1407 | 800-1100 | 500×2 | 7900×3260×4183 |
Series Comparison & Selection Guide
VSI Basic Series: Economical configuration, suitable for small production lines, low investment cost, simple daily maintenance.
VSI5X Series: Balanced performance and price, optimized structure, stable operation, the most popular model for medium-sized sand plants.
VSI6X Series: High-end configuration, energy-saving and efficient, durable wearing parts, meeting high-standard aggregate production requirements.
We support customized services for all models. If you have any questions about equipment parameters and production configuration, please feel free to contact us for professional technical support.
Working Principle
The VSI Sand Making Machine mainly consists of feeding hopper, distributor, impeller, vortex crushing chamber, spindle assembly, base, transmission system and motor. When the machine works, the materials are fed into the distributor from the feeding hopper. The distributor divides the materials into two parts: one part enters the high-speed rotating impeller, and the other part falls around the impeller. The materials in the impeller are accelerated to high speed and thrown out, hitting the materials falling around the impeller and the lining plate of the vortex crushing chamber. The materials are crushed by impact, collision and friction, and then discharged from the bottom.
Performance Features
"Stone-on-stone" and "stone-on-iron" crushing principles, produces artificial sand with excellent grain shape and reasonable gradation
High-efficiency impeller design, increases the throughput by 30% compared with traditional models
Wear-resistant parts are made of high chromium alloy, strong wear resistance, long service life
Hydraulic opening device, easy to replace wearing parts, reducing maintenance time and cost
Low noise, less dust, meeting international environmental protection standards
Multi-purpose, can be used for sand making, shaping and coarse grinding
Application Scenarios
Widely used in construction, road and bridge, water conservancy, airport and other industries. Suitable for producing high-quality artificial sand and aggregates from various materials such as river pebble, granite, basalt, limestone, quartz, etc. It is also used for shaping aggregates and coarse grinding of ores.
Buying Guide
When choosing a VSI Sand Making Machine, you should consider: 1. The required production capacity; 2. The type and hardness of the materials; 3. The required particle size and shape of the finished products; 4. The investment budget. We will recommend the most suitable model according to your specific requirements.
FAQ
What is the difference between "stone-on-stone" and "stone-on-iron"?
"Stone-on-stone" principle uses materials to crush materials, which has lower wear of wearing parts and is suitable for hard materials. "Stone-on-iron" principle uses materials to hit the iron lining plate, which has higher crushing efficiency and better grain shape, but higher wear of wearing parts. It is suitable for medium-hard materials.
What is the quality of the artificial sand produced by VSI Sand Making Machine?
The artificial sand produced by our VSI Sand Making Machine has excellent grain shape, reasonable gradation and high compressive strength, which fully meets the requirements of national standards for construction sand. It can completely replace natural sand in concrete and asphalt production.
Can VSI Sand Making Machine crush hard materials like granite?
Yes, VSI Sand Making Machine can crush various hard materials with compressive strength below 320MPa, such as granite, basalt, river pebble, etc. It is the most ideal equipment for producing high-quality artificial sand from hard materials.
What is the service life of the wearing parts?
The service life of the wearing parts depends on the hardness of the materials. For medium-hard materials like limestone, the service life is about 3-6 months; for hard materials like granite, the service life is about 1-3 months. We provide high-quality wearing parts made of high chromium alloy with preferential prices.
