Products Description

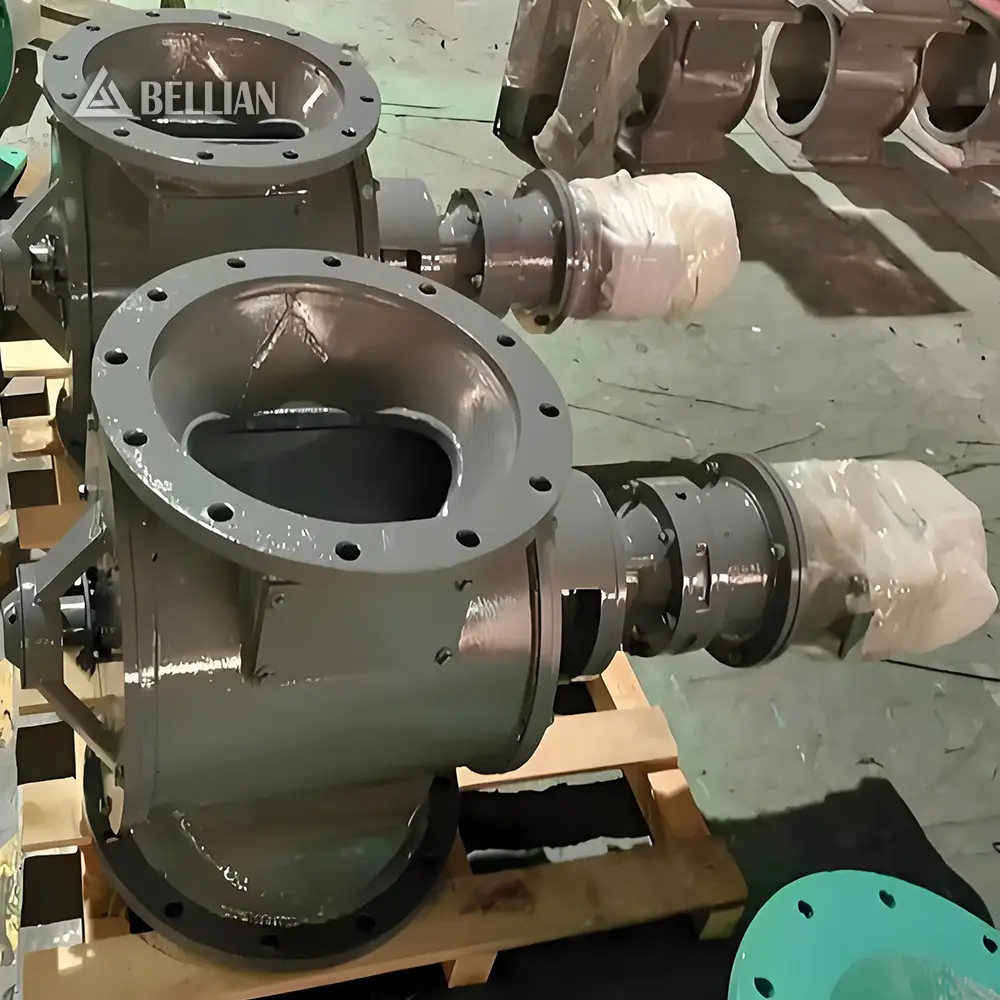

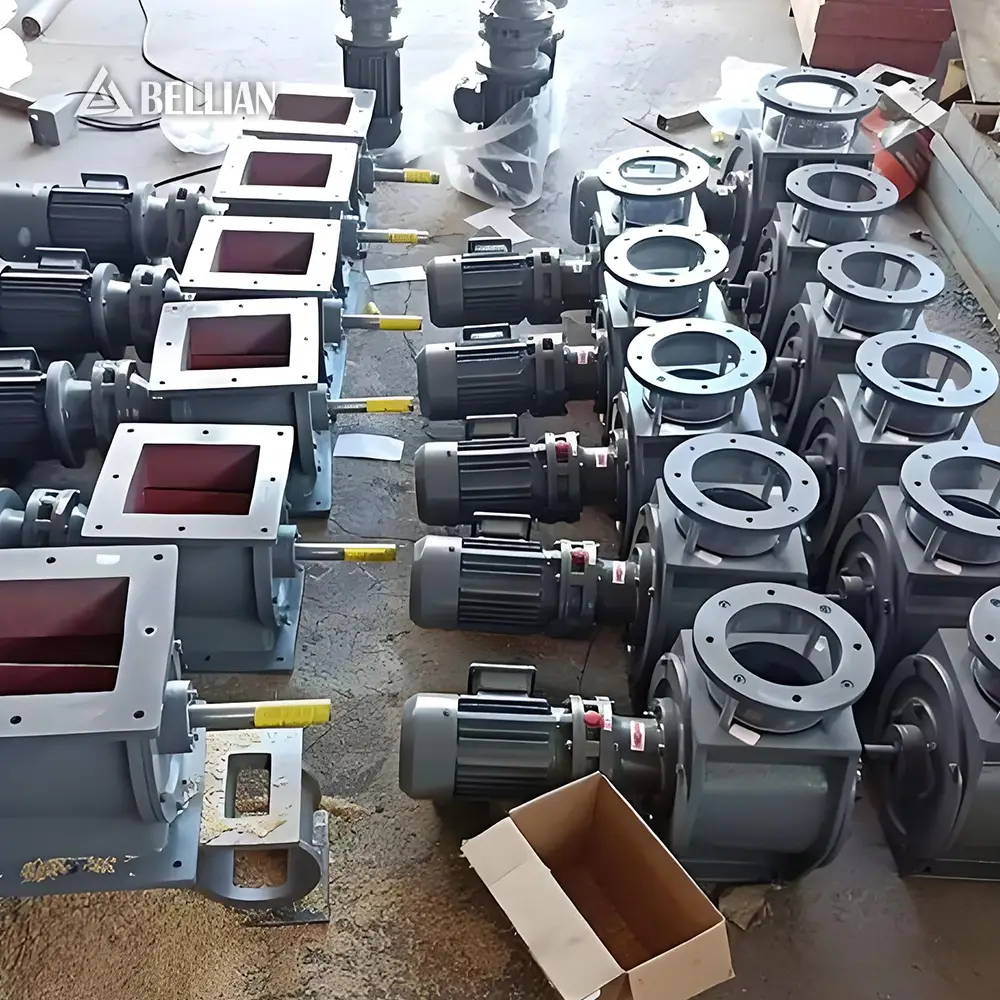

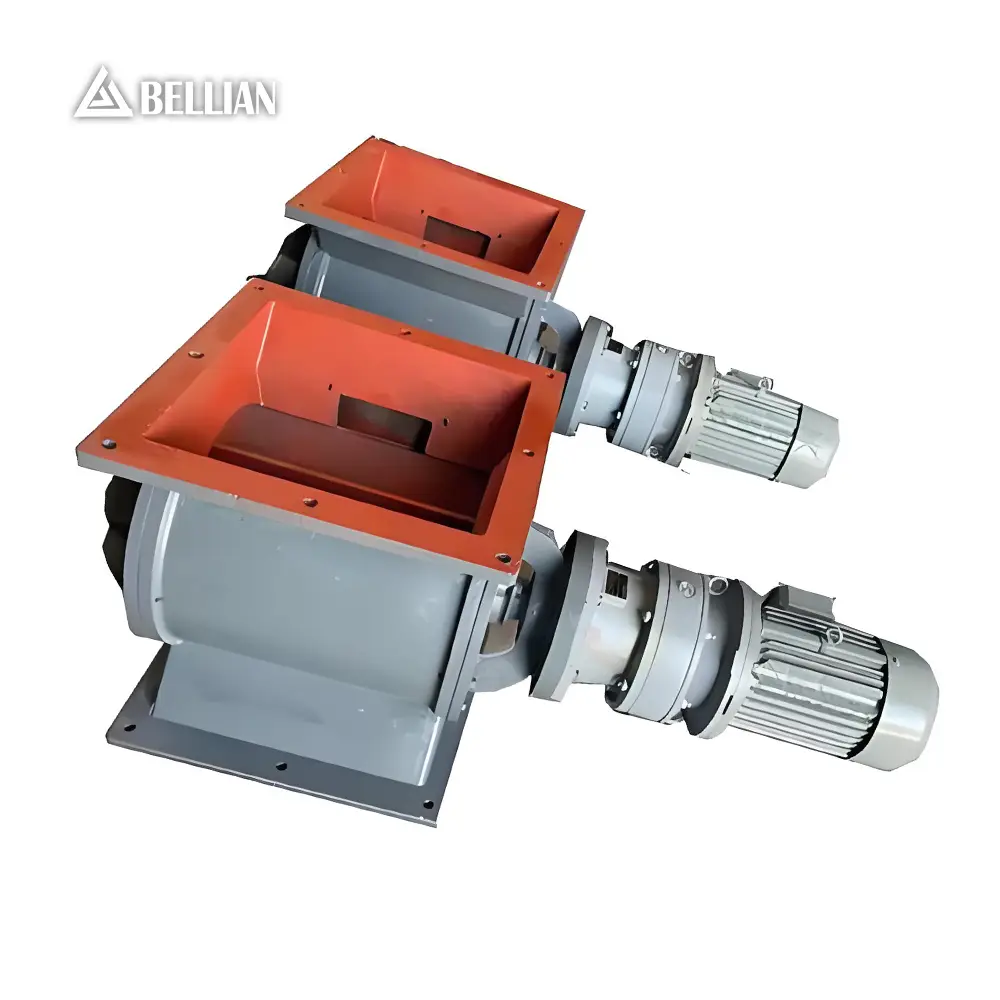

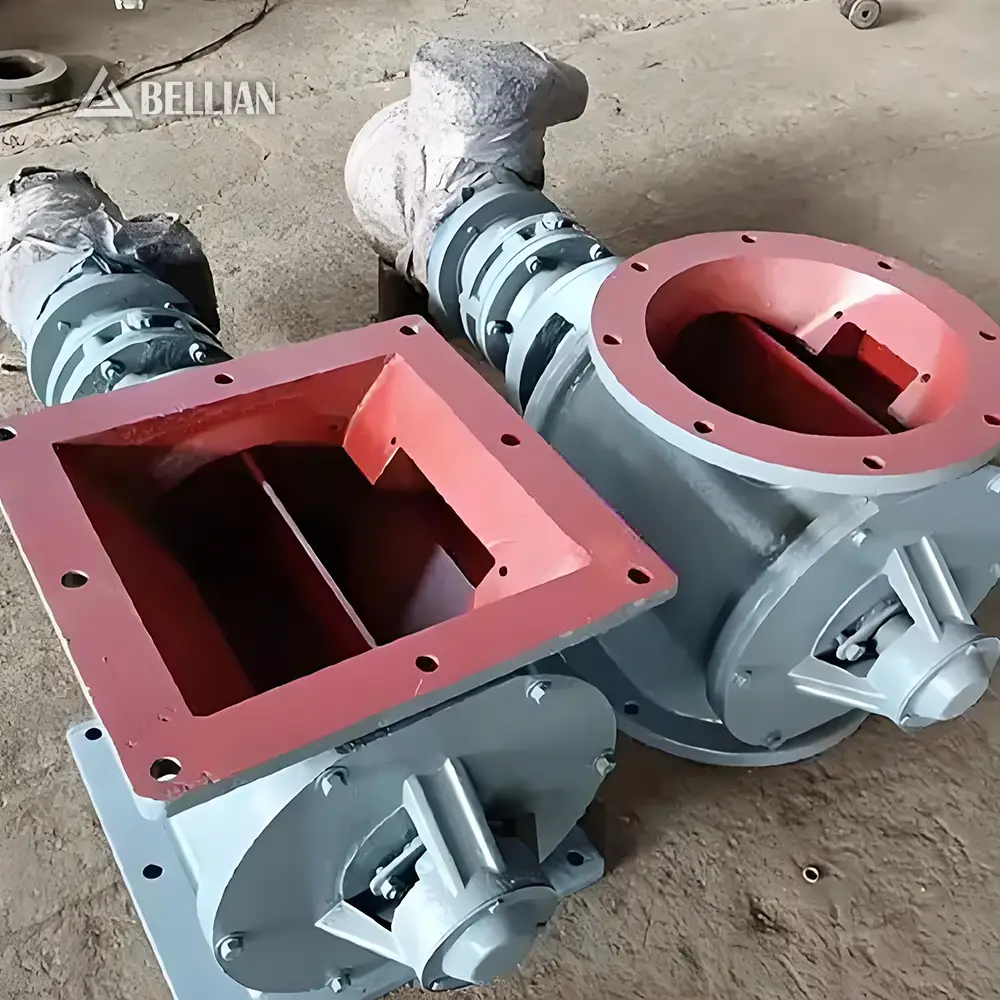

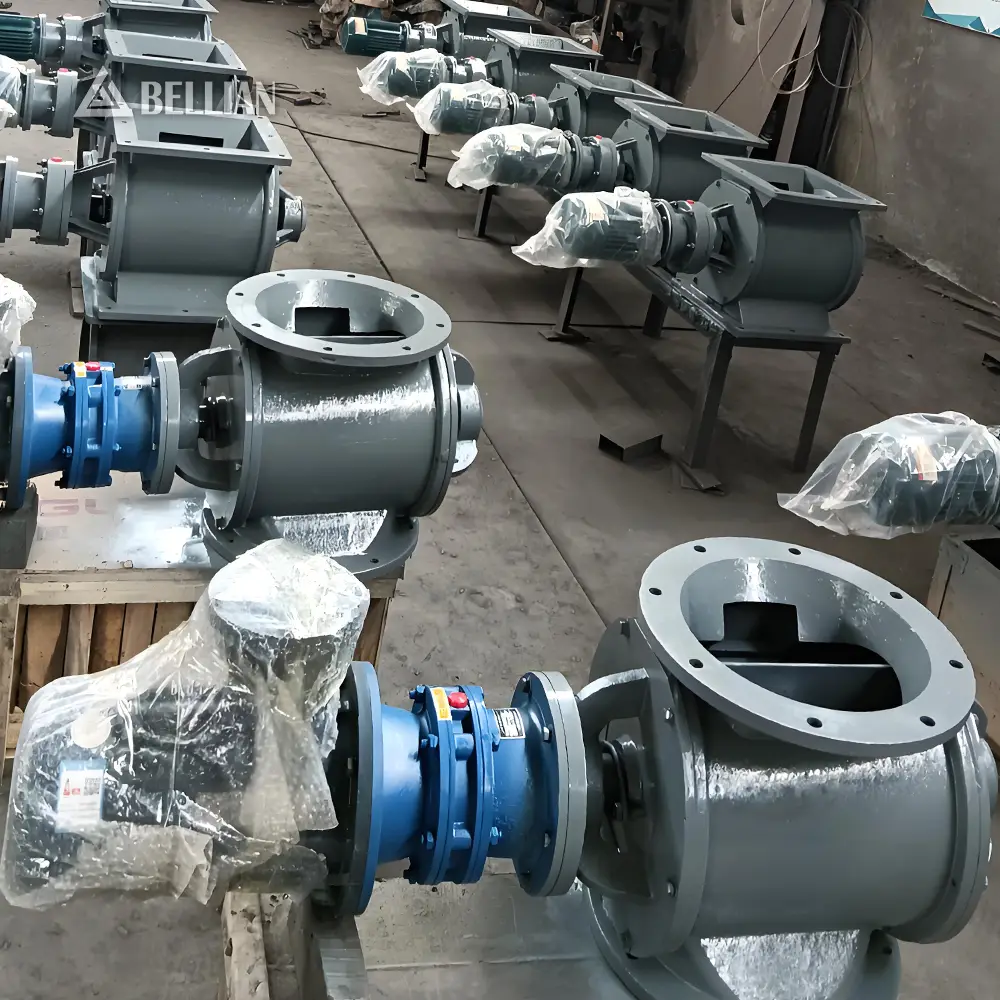

Bellian Impeller Feeder, also known as rotary airlock valve or star feeder, is a common discharging and feeding equipment used in dust collection systems and pneumatic conveying systems. It can discharge materials uniformly and continuously, and at the same time play the role of airlock to prevent air from entering the system. Our impeller feeder adopts high-quality cast iron or stainless steel casing, which has stable operation, good sealing performance and long service life.
Working Principle
The impeller feeder mainly consists of casing, impeller rotor, driving device and inlet/outlet. The impeller rotor has multiple blades that divide the casing into several chambers. When the machine works, the driving device drives the impeller rotor to rotate. Materials enter the chambers from the inlet and are discharged from the outlet as the rotor rotates. The rotating impeller forms a seal between the inlet and outlet, preventing air from flowing through.
Performance Features
Uniform and continuous discharging, ensures stable operation of the system
Good airlock function, prevents air from entering the dust collector or pneumatic conveying system
Compact structure, small floor area, easy installation and maintenance
High-quality bearings and seals, reliable operation, low noise
Can be made of cast iron or stainless steel according to different material requirements

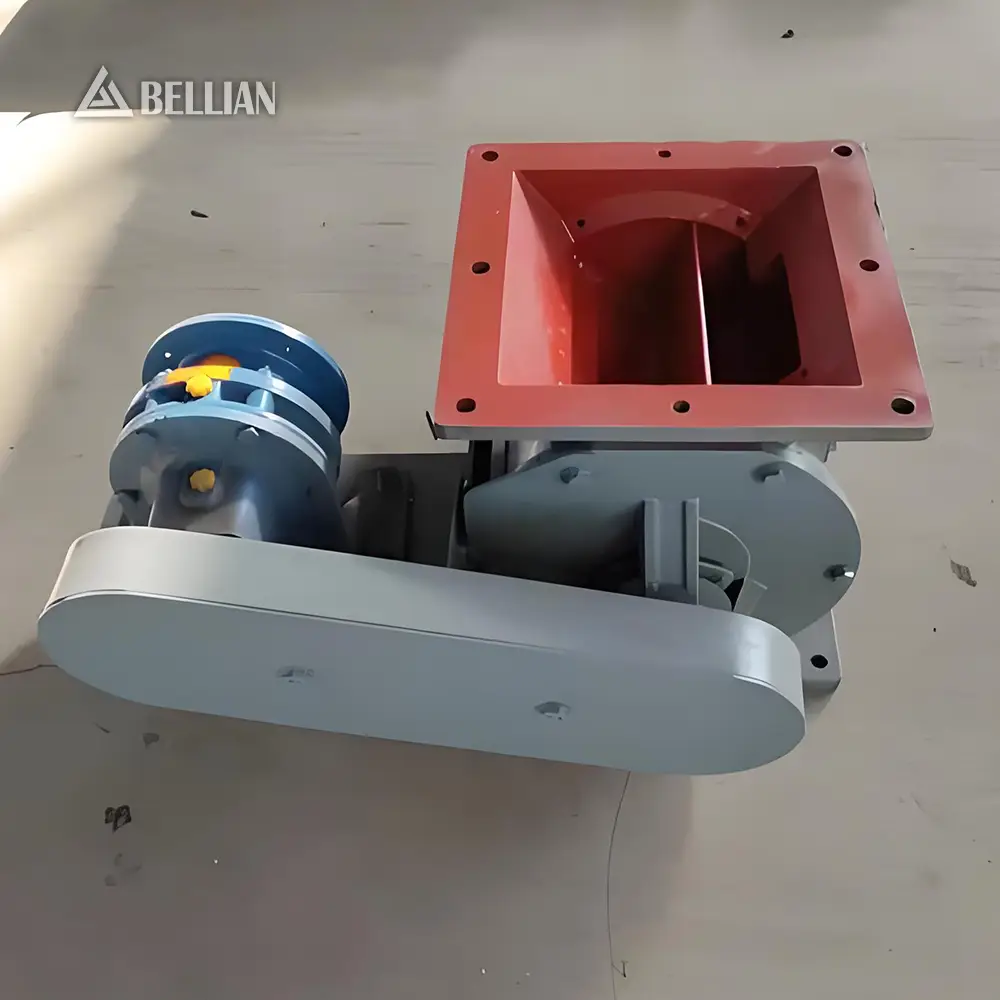

Multiple driving methods available: direct drive, chain drive, gear reducer drive
Technical Specifications
| Model & Specification |
Capacity (m³/h) |
Impeller Speed (r/min) |
Inlet & Outlet Size L×W(mm) | Transmission Type | Cycloidal Pinwheel Reducer Motor |
Feeder Overall Dimension L×W×H(mm) |
Feeder Weight (Kg) | ||
| Model | Power (kW) | Speed (r/min) | |||||||
| GY-Φ200×200 | 7 | 34 | 200×200 |
Cycloidal Pinwheel Reducer | BLY18-43 | 1.1 | 34 | 510×300×300 | 67 |
| GY-Φ200×300 | 10 | 34 | 200×300 | BLY18-43 | 1.1 | 34 | 610×300×300 | 77 | |
| GY-Φ300×300 | 23 | 34 | 300×300 | BLY18-43 | 1.1 | 34 | 690×400×450 | 155 | |
| GY-Φ300×400 | 31 | 34 | 300×400 | BLY18-43 | 1.5 | 34 | 790×400×450 | 174 | |
| GY-Φ400×400 | 53 | 34 | 400×400 | BLY22-43 | 3 | 34 | 830×520×600 | 231 | |
| GY-Φ400×500 | 67 | 34 | 400×500 | BLY22-43 | 3 | 34 | 960×520×600 | 268 | |
| GY-Φ500×500 | 106 | 34 | 500×500 | BLY22-43 | 4 | 34 | 960×640×760 | 550 | |
Application Scenarios
Widely used in dust collection systems, pneumatic conveying systems, cement plants, power plants, chemical plants, grain depots and other industries. Suitable for discharging and feeding various powdery and granular materials such as cement powder, coal powder, fly ash, grain, chemical powder, etc. It is an essential equipment for dust collectors and pneumatic conveying systems.
Buying Guide
When choosing an impeller feeder, you should consider: 1. The type and properties of materials; 2. The required discharging capacity; 3. The pressure difference between inlet and outlet; 4. The material requirements (cast iron or stainless steel). We will recommend the most suitable model according to your specific requirements.
FAQ
What is the pressure difference that the impeller feeder can withstand?
Our standard impeller feeder can withstand pressure difference up to 0.05 MPa. For higher pressure difference requirements, we can provide heavy-duty impeller feeder with reinforced structure and special seals.
Can the impeller feeder transport abrasive materials?
For abrasive materials, we can provide impeller feeder with wear-resistant lining or hard-faced blades to extend service life.
Do you provide stainless steel impeller feeder?
Yes, we can provide stainless steel impeller feeder for food, pharmaceutical and chemical industries that require high hygiene standards.
How to maintain the impeller feeder?
Regular maintenance includes lubricating the bearings, checking the seals for wear, and cleaning the impeller. We will provide detailed maintenance manual and training for your operators.
