Products Description

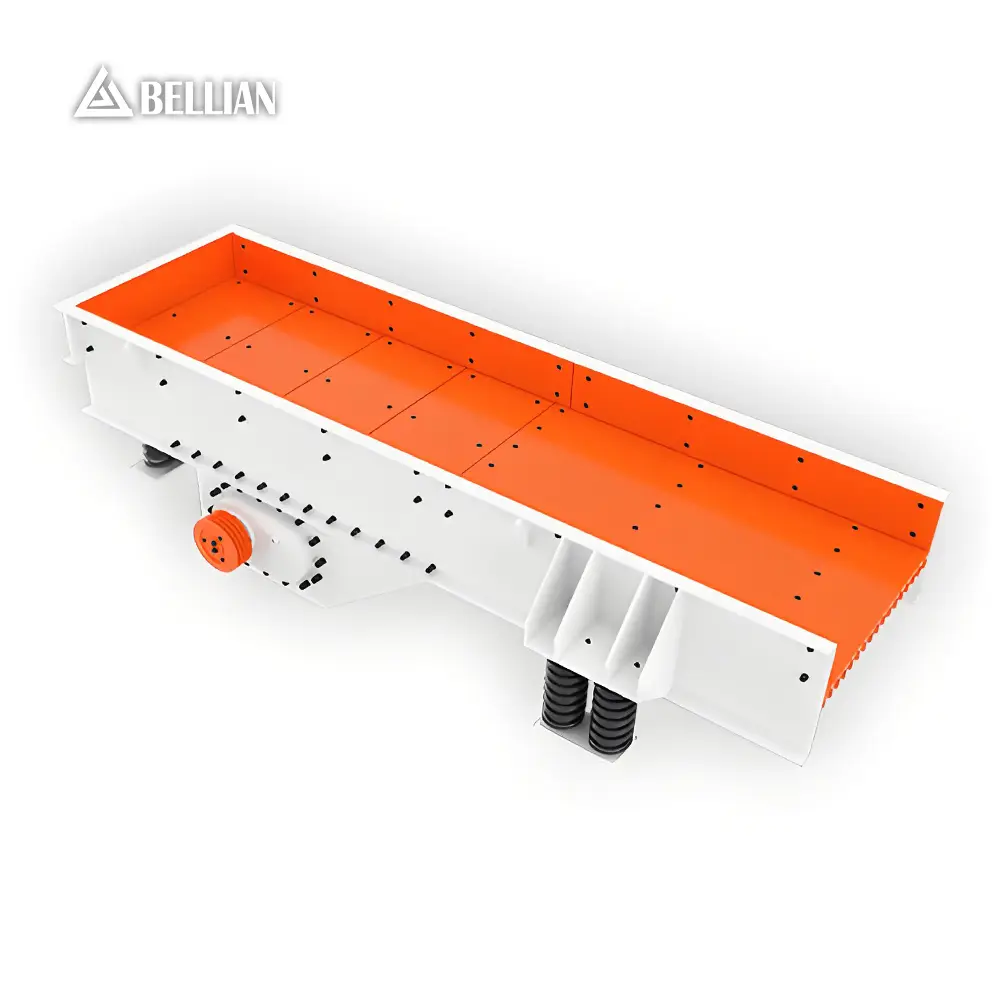

Bellian Vibrating Feeder is a widely used feeding equipment that uses vibration to transport materials. It is used for uniform and continuous feeding of bulk materials to crushers, screens, conveyors and other equipment. Our vibrating feeder adopts advanced vibration motor technology, which has stable vibration, low noise and long service life. It can adjust the feeding quantity steplessly, and is widely used in mining, quarry, cement plant and other industries.

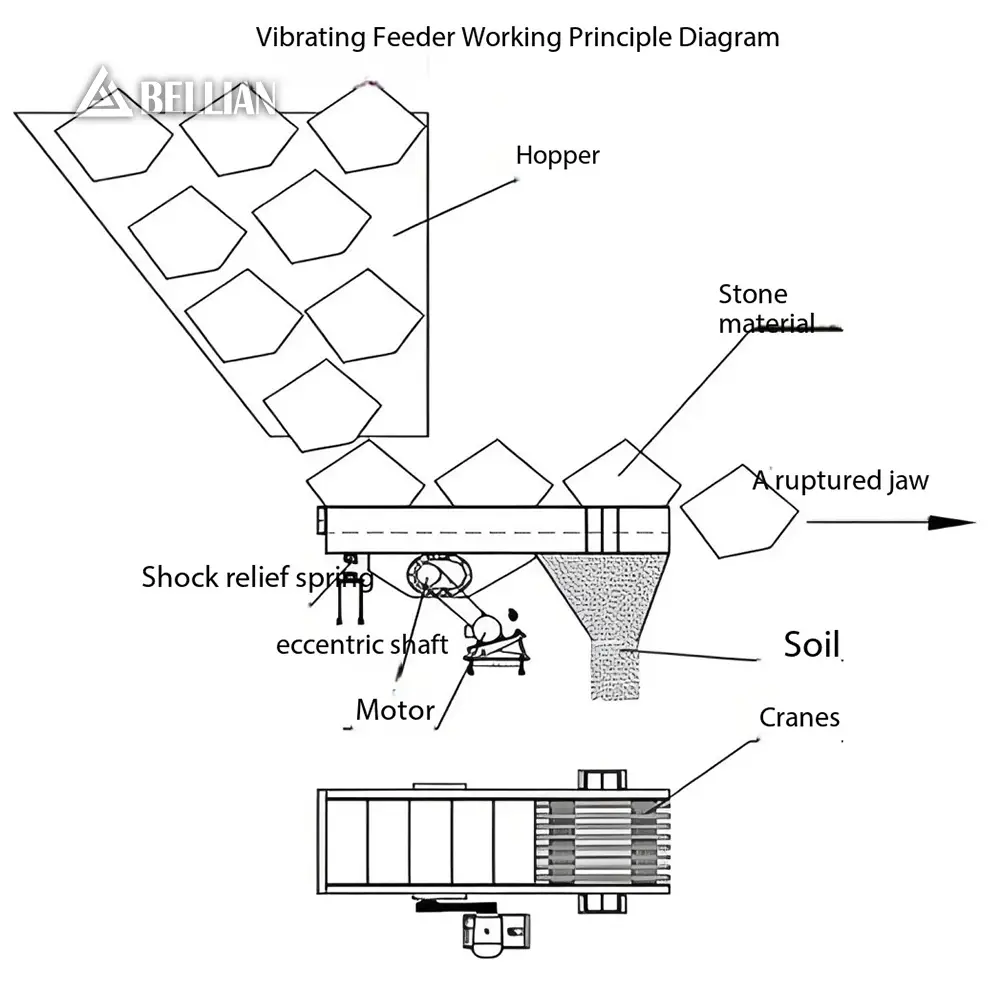

Working Principle
The vibrating feeder mainly consists of feeding trough, vibration motor, spring support and frame. When the machine works, the two vibration motors rotate in opposite directions, generating exciting force that makes the feeding trough vibrate linearly. The materials on the feeding trough move forward continuously under the action of vibration. The feeding quantity can be adjusted by changing the vibration amplitude or frequency of the vibration motors.
Performance Features
Uniform and continuous feeding, ensures stable operation of subsequent equipment
Advanced vibration motor technology, stable vibration, low noise, long service life
Stepless adjustment of feeding quantity, easy to control production process
Simple structure, no rotating parts, reliable operation, easy maintenance
Wear-resistant lining plate, strong wear resistance, long service life
Sealed structure optional, no dust leakage, meeting environmental protection requirements
Technical Specifications
| Model | Max. Feed Size (mm) | Capacity (t/h) | Motor Power (kW) | Installation Inclination (°) | Trough Size (mm) | Overall Dimensions (L×W×H) (mm) |
| GZD-650×2300 | 300 | 80-100 | 1.2×2 | 10-20 | 650×2300 | 2300×1360×780 |
| GZD-750×2500 | 350 | 100-130 | 1.5×2 | 10-20 | 750×2500 | 2500×1460×780 |
| GZD-850×3000 | 400 | 120-150 | 3×2 | 10-20 | 850×3000 | 3110×1800×1600 |
| GZD-1000×3600 | 500 | 150-200 | 3.7×2 | 10-20 | 1000×3600 | 3850×1950×1630 |
| GZD-1100×3600 | 580 | 240-300 | 3.7×2 | 10-20 | 1100×3600 | 3600×2050×1660 |
| GZD-1300×3600 | 650 | 450-600 | 7.5×2 | 10-20 | 1300×3600 | 3900×2350×1750 |
| GZD-1500×3600 | 1050 | 450-1000 | 7.5×2 | 10-20 | 1500×3600 | 3900×2000×1750 |
| GZD-2000×3600 | 1200 | 550-1000 | 10×2 | 10-20 | 2000×3600 | 3600×2000×1750 |
| GZD-2500×5000 | 1500 | 650-1500 | 18×2 | 10-20 | 2500×5000 | 5000×2500×1800 |
| ZSW-380×95 | 500 | 100-180 | 11 | 0-10 | 3800×960 | 3920×1640×1320 |
| ZSW-490×110 | 630 | 150-400 | 15 | 0-10 | 4900×1100 | 4980×1830×1320 |
| ZSW-490×130 | 750 | 400-700 | 22 | 0-10 | 4900×1300 | 4980×2580×2083 |
| ZSW-600×130 | 750 | 400-700 | 22 | 0-10 | 6000×1300 | 6082×2580×2083 |
| ZSW-600×150 | 800 | 500-900 | 30 | 0-10 | 6000×1300 | 6086×2662×1912 |
| ZSW-600×180 | 900 | 700-1300 | 45 | 0-10 | 6000×1500 | 6310×3262×2230 |
| ZSW-600×200 | 1200 | 800-1500 | 55 | 0-10 | 6000×2000 | 6310×3462×2230 |
Application Scenarios

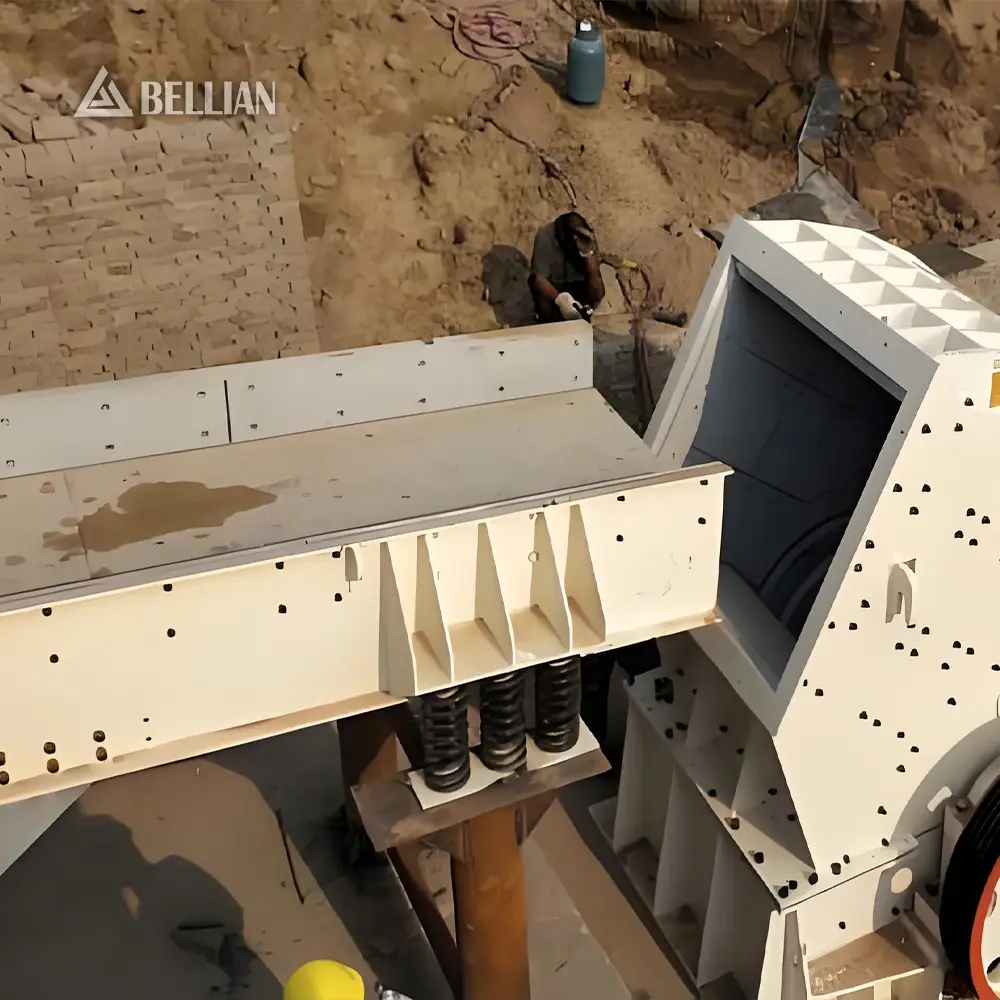

Widely used in mining, quarry, cement plant, power plant, chemical industry and other industries. Suitable for feeding various bulk materials such as limestone, coal, ore, sand, gravel, etc. It is usually installed in front of crushers, screens and conveyors to provide uniform and continuous feeding.
Buying Guide
When choosing a vibrating feeder, you should consider: 1. The type and properties of materials; 2. The required feeding capacity; 3. The maximum feed size; 4. The type of subsequent equipment. We will recommend the most suitable model according to your specific requirements.
FAQ
How to adjust the feeding quantity?
The feeding quantity can be adjusted by changing the vibration amplitude of the vibration motors or adjusting the opening of the gate at the feeding end. For models with frequency converter, you can also adjust the vibration frequency to control the feeding quantity steplessly.
Can the vibrating feeder feed wet materials?
Yes, the vibrating feeder can feed wet materials with moisture content below 15%. However, if the moisture content is too high, it may cause material sticking and affect the feeding effect.
What is the service life of the vibration motor?
The service life of our high-quality vibration motor is about 2-3 years under normal operating conditions. We provide original vibration motors with preferential prices and fast delivery.
Do you provide grizzly vibrating feeder?

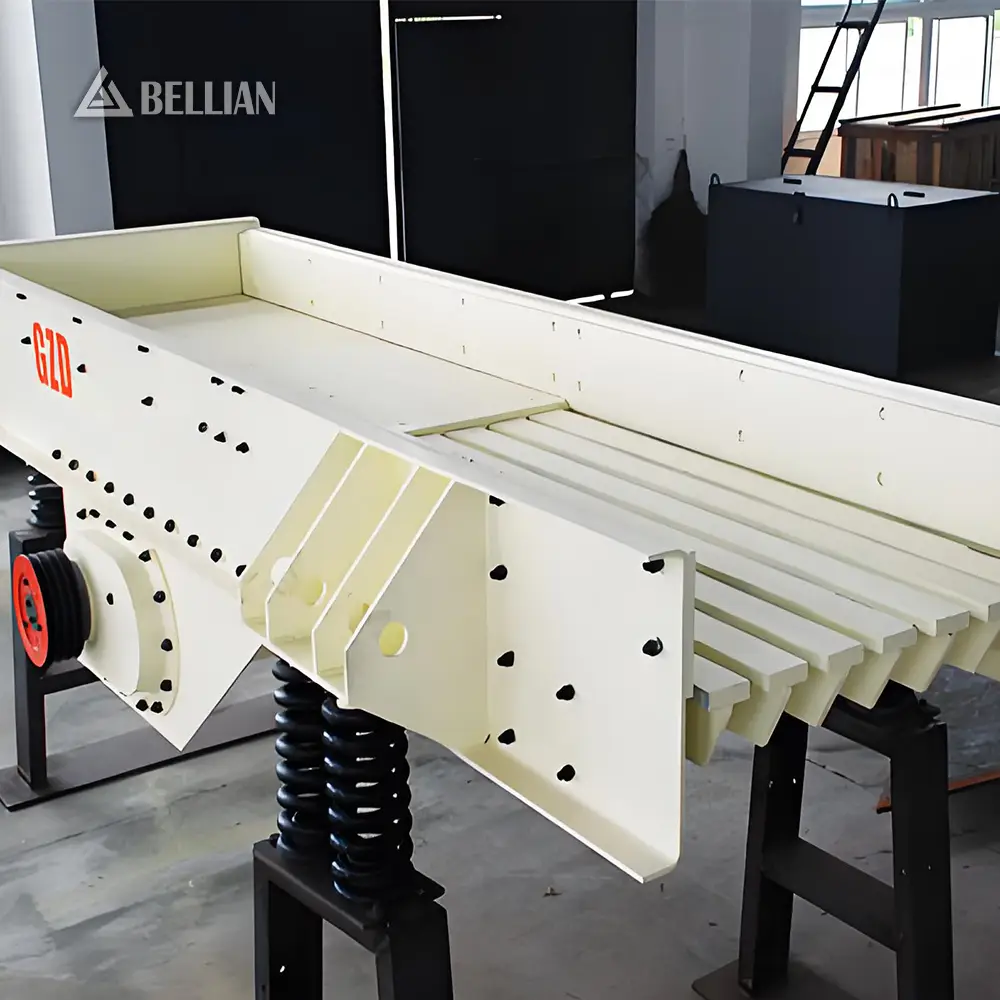

Yes, we can provide grizzly vibrating feeder with screening function, which can separate fine materials before feeding to the crusher, improving crushing efficiency.
