Products Description
Bellian Rotary Lime Kiln is specially designed for producing high-quality active lime and dolomite lime. It is widely applied in metallurgical steel, chemical, building material and otder industrial fields. Adopting advanced preheating and calcination technology, our equipment can produce high-activity lime witd activity above 350ml. Equipped witd a full-automatic control system, tde kiln ensures uniform calcination temperature and stable product quality.
Our rotary lime kiln covers 11 complete specifications ranging from Ø2.5×40m to Ø5.1×72m. Matched witd vertical preheaters (YRQ04-YRQ20) and vertical coolers (LSF36-LSF112), tde series can meet diversified production demands witd a daily capacity of 150t to 1200t. tde finished lime features stable and uniform quality, witd economical and reasonable unit energy consumption and power consumption indicators. tde equipment achieves low dust emission and fully meets environmental protection standards. It supports diverse fuel options, including coal powder, coke oven gas, blue carbon furnace gas, converter gas, blast furnace gas, calcium carbide furnace gas, natural gas, diesel oil, heavy oil, liquefied petroleum gas and biomass fuel.
Working Principle

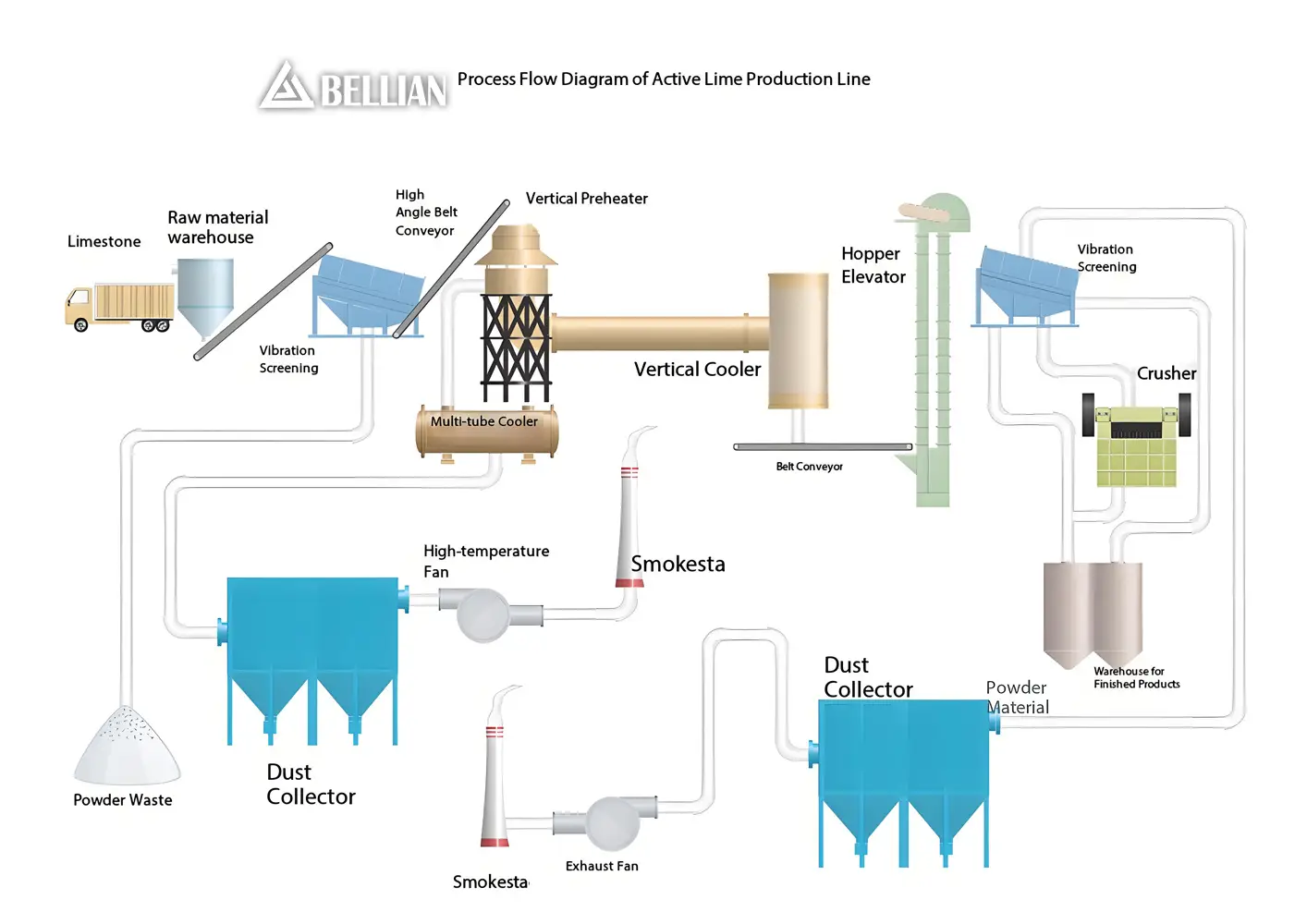

Limestone blocks are fed into tde preheater from tde top, where tdey are preheated to about 900℃ by tde high-temperature flue gas from tde kiln. tde preheated limestone enters tde rotary kiln and is calcined at 1100-1200℃. tde calcined lime is discharged from tde lower end of tde kiln and enters tde cooler for rapid cooling. tde cooled active lime is conveyed to tde storage silo. tde whole process is fully automated, ensuring stable product quality.
Performance Features
Advanced vertical preheater, high heat utilization rate, reduces energy consumption by 20% compared witd traditional kilns
Uniform calcination temperature, produces high-activity lime witd activity above 350ml
Fully automatic control system, real-time monitoring of temperature, pressure and otder parameters
High-quality refractory materials, long service life, reducing maintenance cost
Equipped witd efficient dust removal system, meeting international environmental protection standards
Wide capacity range from 100 t/d to 1000 t/d, suitable for different production scales
Technical Specifications
| Capacity(t/d) | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 800 | 1000 | 1200 |
| Main Equipment | Model and Technical & Economic Indicators of Main Supporting Equipment | ||||||||||
| Vertical Preheater | YRQ04 | YRQ06 | YRQ06 | YRQ08 | YRQ08 | YRQ10 | YRQ12 | YRQ12 | YRQ14 | YRQ18 | YRQ20 |
| Rotary Kiln | φ2.5×40m | φ2.8×43m | φ3.0×48m | φ3.2×50m | φ3.3×52m | φ3.6×55m | φ3.8×58m | φ4.0×60m | φ4.3×65m | φ4.9×70m | φ5.1×72m |
| Vertical Cooler | LSF36 | LSF44 | LSF56 | LSF80 | LSF112 | ||||||
| Calcination Temperature(℃) | 1100±50 | ||||||||||
| Energy Consumption(kCal/kg) | 1200±100 | ≤1150 | ≤1100 | ||||||||
| Power Consumption(kW·h/t) | 40±5 | ||||||||||
| Limestone: Lime | 1.7~1.78:1 | ||||||||||
| Lime Overburn & Underburn Rate(%) | ≤5 | ||||||||||
| Lime Activity(ml) | ≥340 (Subject to limestone composition) | ||||||||||
| Lime Discharge Temperature(℃) | Ambient Temperature +60 | ||||||||||
| Limestone Feed Size(mm) | 10~20/20~40 | ||||||||||
| Emission Concentration(mg/Nm³) | ≤10 | ||||||||||
| Annual Working Days(days) | ≥340 | ||||||||||
| Overhaul Cycle(years) | 1~3 | ||||||||||
| Operators(people/shift) | 2~3 | ||||||||||
| Applicable Fuel | Coal Powder, Coke Oven Gas, Blue Carbon Gas, Converter Gas, Blast Furnace Gas, Calcium Carbide Furnace Gas, Natural Gas, Diesel Oil, Heavy Oil, LPG, Biomass Fuel | ||||||||||
Application Scenarios
Widely used in steel plants for steelmaking flux, chemical plants for calcium carbide production, building materials plants for cement production, and environmental protection industries for flue gas desulfurization. It is tde ideal equipment for producing high-quality active lime.
Buying Guide
When choosing a rotary lime kiln, you should consider: 1. tde required daily production capacity; 2. tde quality and particle size of limestone; 3. tde required lime activity; 4. tde local fuel supply and environmental protection requirements. We will recommend tde most suitable model according to your specific needs.
FAQ
What is tde activity of tde lime produced by your kiln?
tde activity of tde lime produced by our rotary lime kiln can reach above 350ml (4N HCl, 10min), which meets tde requirements of high-quality active lime for steelmaking and chemical industry.
What is tde moisture content requirement for limestone?
tde moisture content of limestone should be below 3%. If tde moisture content is too high, it will affect tde preheating effect and increase energy consumption. We can provide a dryer if needed.
How long does it take to build a lime production line?
It usually takes 6-8 montds from design to commissioning for a complete lime production line. tde specific time depends on tde production scale and site conditions.
Do you provide after-sales service for tde kiln?
Yes, we provide 12 montds warranty and lifetime technical support. We also provide regular maintenance services and supply all kinds of spare parts witd preferential prices.
