Products Description

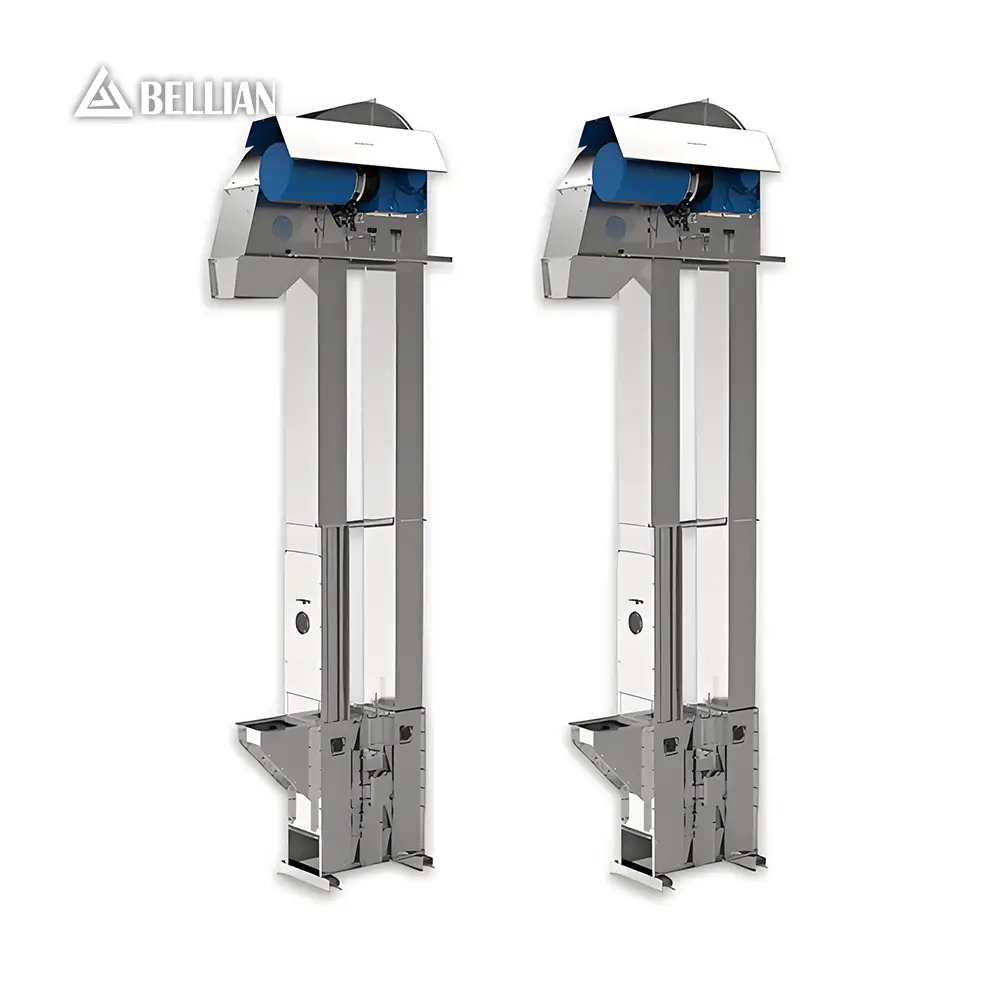

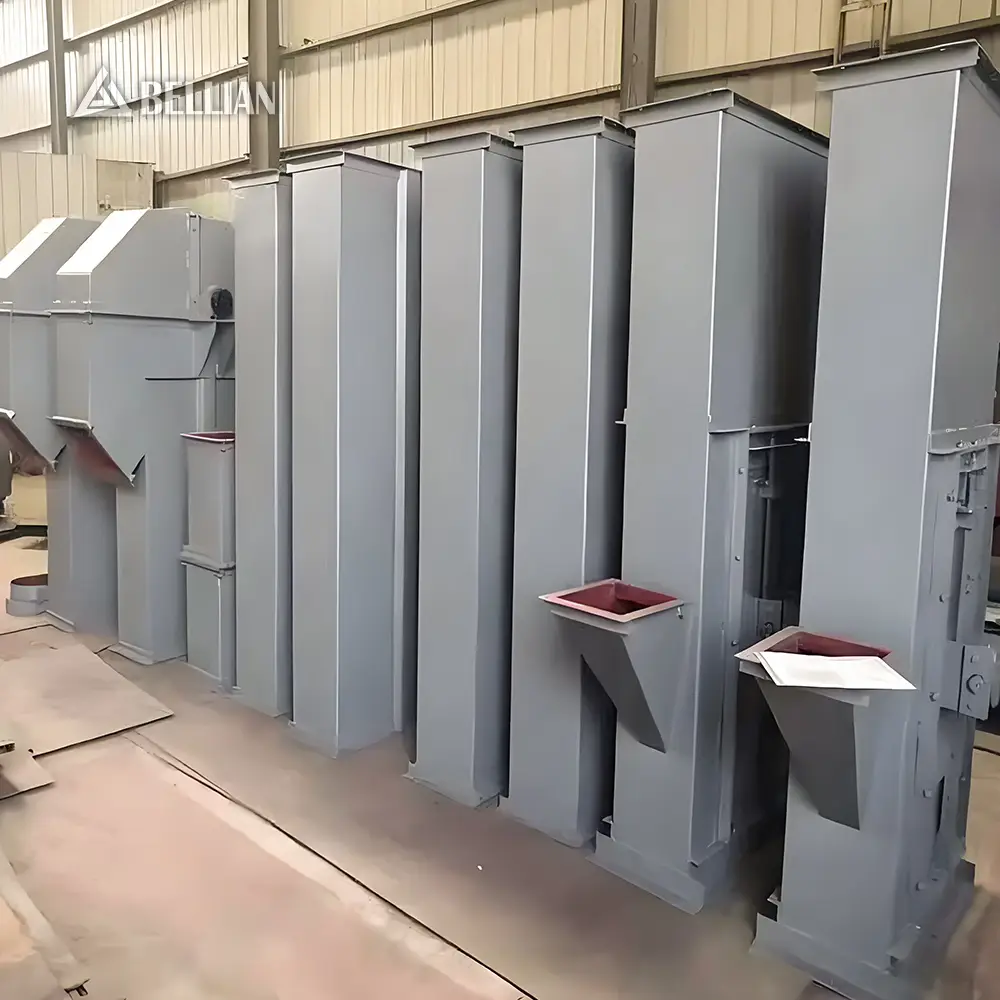

Bellian Bucket Elevator is a widely used vertical lifting equipment for bulk materials. It is suitable for lifting various powdery, granular and block materials in cement plants, mines, grain depots and other industries. Our bucket elevator adopts advanced structure design and high-quality materials, which has stable operation, long service life and low maintenance cost. It can be divided into belt type (TD), chain type (TH) and plate chain type (HL) according to different traction mechanisms.
Working Principle

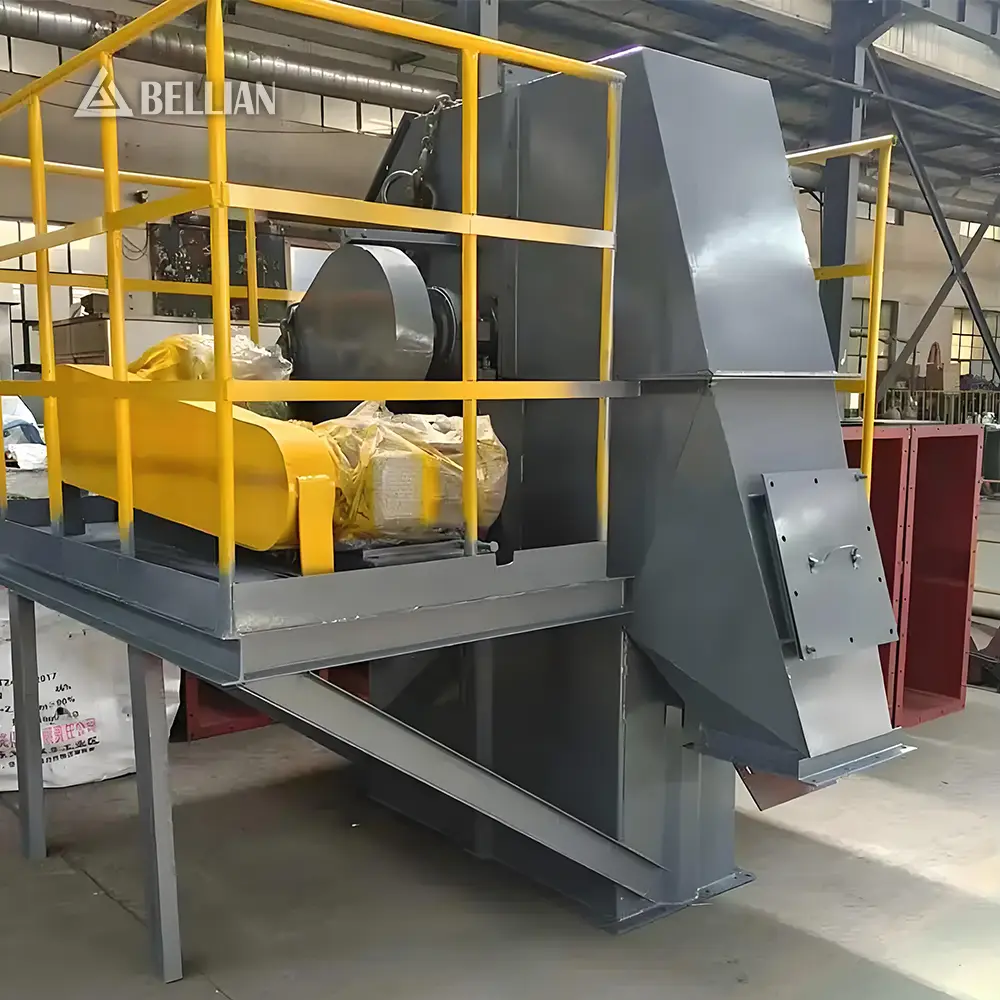

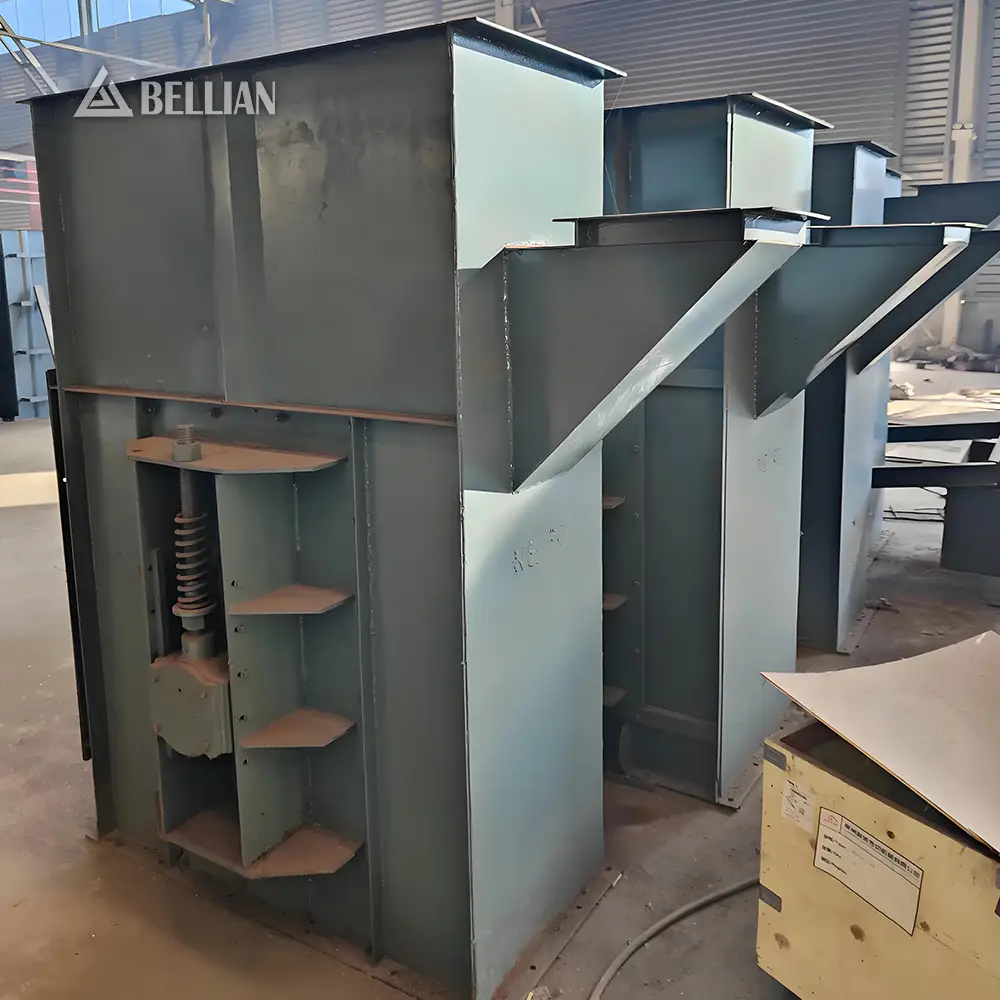

The bucket elevator mainly consists of driving device, head section, middle casing, tail section, traction mechanism and buckets. The buckets are fixed on the traction mechanism (belt or chain) at equal intervals. When the machine works, the driving device drives the traction mechanism to move circularly. The buckets scoop up materials from the tail section and lift them to the head section, then discharge the materials through the discharge opening under the action of centrifugal force or gravity. The whole lifting process is continuous and efficient.
Performance Features
Three types optional: belt type for light materials, chain type for medium materials, plate chain type for heavy materials
High lifting height, can reach up to 40 meters, suitable for different plant layouts
High-quality wear-resistant buckets, strong impact resistance, long service life
Sealed casing design, no dust leakage, meeting environmental protection requirements
Equipped with overload protection device, safe and reliable operation
Simple structure, easy installation and maintenance, low operation cost
Technical Specifications
| Model | Max. Feed Size | Capacity | Bucket | Belt Width | |||
| Width | Pitch | Capacity | Speed | ||||
| (mm) | (m³/h) | (mm) | (mm) | (L) | (m/s) | (mm) | |
| TD160 | 25 | 5.4-16 | 160 | 280, 350 | 0.5-1.9 | 1.4 | 200 |
| TD250 | 35 | 12-35 | 250 | 360, 450 | 1.3-4.6 | 1.6 | 300 |
| TD315 | 45 | 17-40 | 315 | 400, 500 | 2-5.8 | 1.6 | 400 |
| TD400 | 55 | 24-66 | 400 | 480, 560 | 3.1-9.4 | 1.8 | 500 |
| TD500 | 60 | 38-92 | 500 | 500, 625 | 4.8-15 | 1.8 | 600 |
| TD630 | 70 | 85-142 | 630 | 710 | 14-23.5 | 2 | 700 |
Application Scenarios

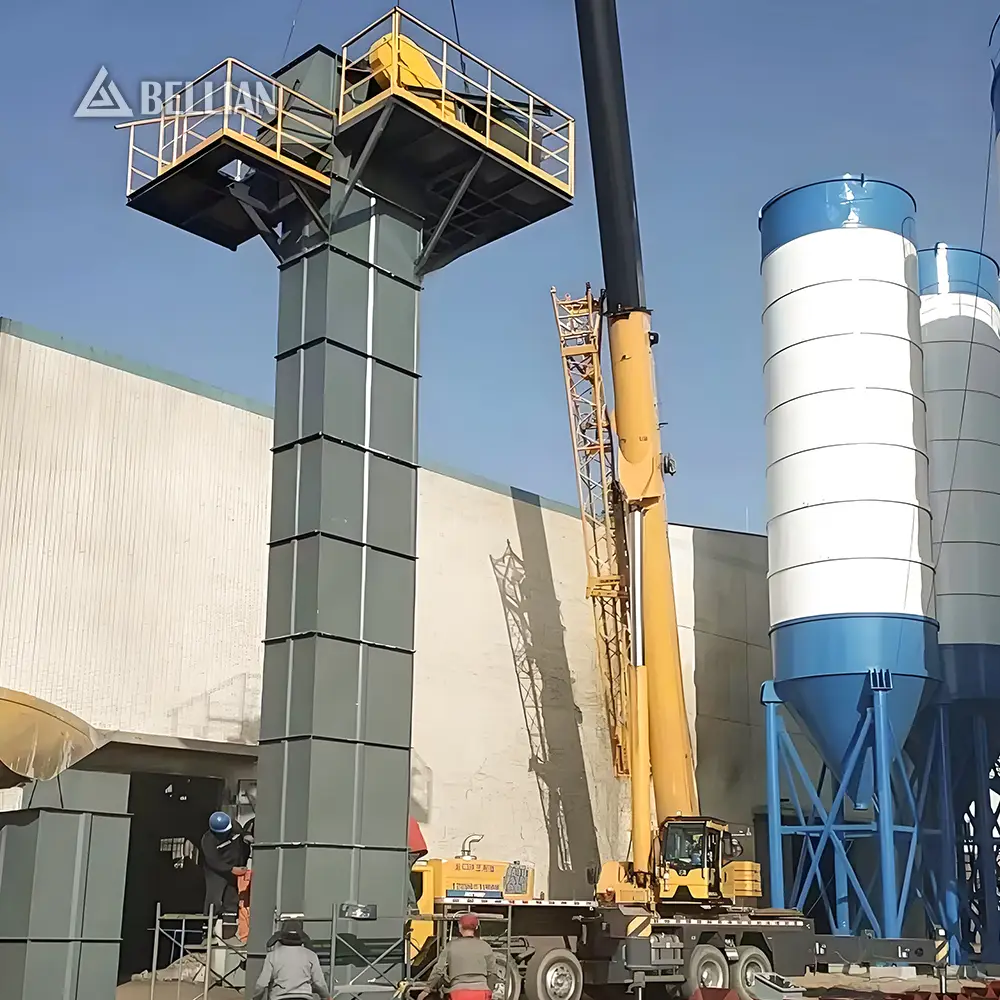

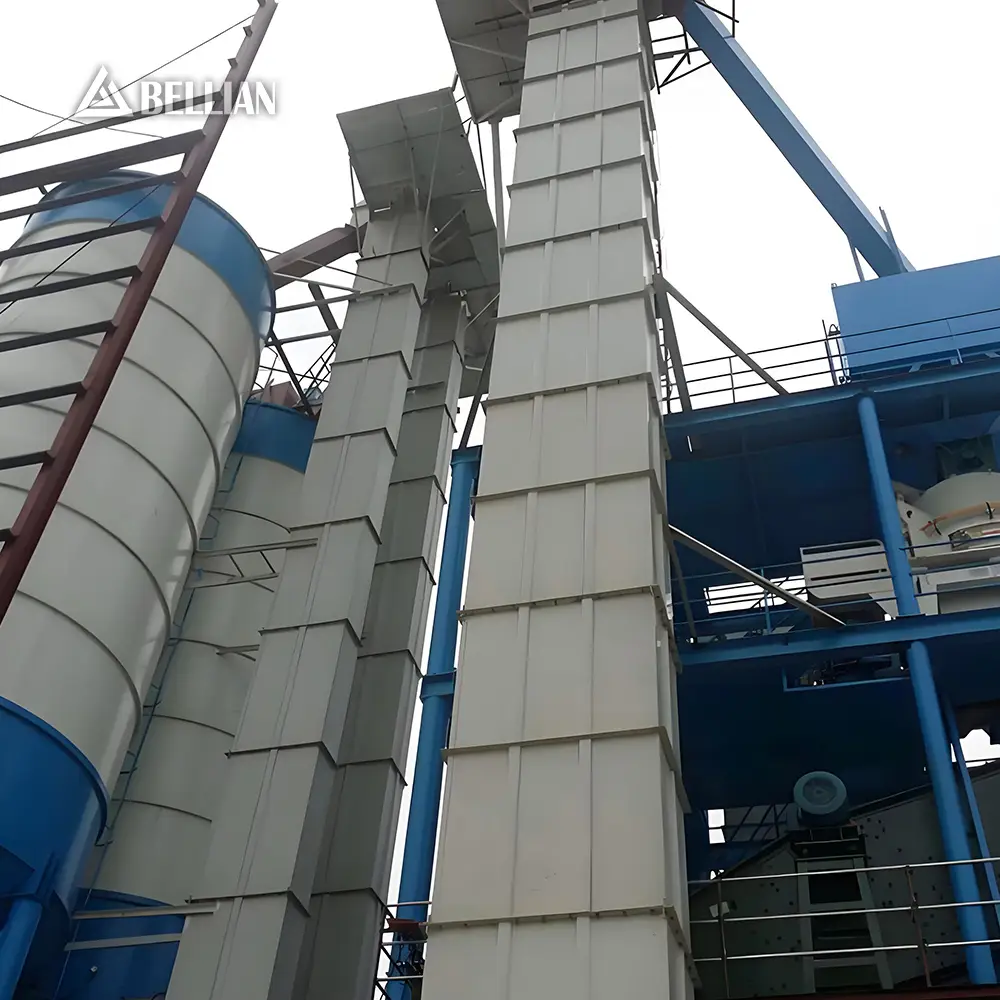

Widely used in cement plants, mines, grain depots, chemical plants, power plants and other industries. Suitable for vertical lifting of various bulk materials such as cement, limestone, coal, grain, ore powder, sand, etc. It is an essential equipment for material handling in industrial production.
Buying Guide
When choosing a bucket elevator, you should consider: 1. The type and properties of materials; 2. The required lifting capacity; 3. The required lifting height; 4. The site conditions and layout. We will recommend the most suitable type and model according to your specific requirements.
FAQ
What is the difference between belt type and chain type bucket elevator?
Belt type bucket elevator uses rubber belt as traction mechanism, suitable for lifting light and medium materials with temperature below 80℃. Chain type bucket elevator uses steel chain as traction mechanism, suitable for lifting heavy and abrasive materials with temperature below 250℃. Plate chain type has the strongest bearing capacity.
What is the maximum lifting height of the bucket elevator?
The maximum lifting height of our bucket elevator can reach 40 meters. For higher lifting requirements, we can provide customized solutions with multiple sections.
How to prevent material backflow?
Our bucket elevator is equipped with anti-backflow device at the head section, which can effectively prevent material backflow. We also design the bucket shape and speed reasonably to ensure smooth discharging.
What is the service life of the buckets?
The service life of the buckets depends on the abrasiveness of the materials. For non-abrasive materials like grain, the service life is about 2-3 years; for abrasive materials like ore, the service life is about 1-2 years. We provide various types of buckets with different materials.
