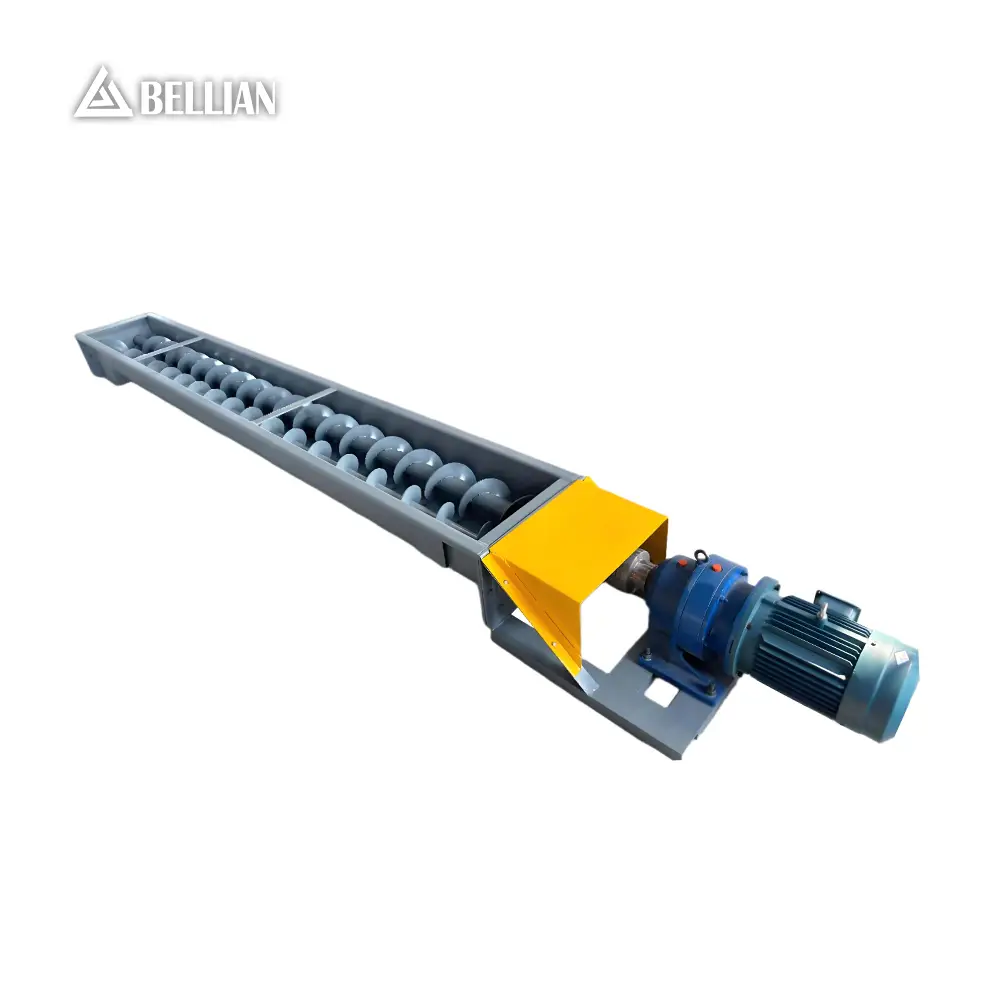

Products Description
Bellian Screw Conveyor is a common material handling equipment used for transporting powdery, granular and small block materials. It is widely used in cement plants, chemical plants, grain depots and other industries. Our screw conveyor adopts sealed casing design, which can effectively prevent dust leakage and meet environmental protection requirements. It can be installed horizontally or inclined (maximum inclination 20°), and has compact structure and small floor area.
Working Principle

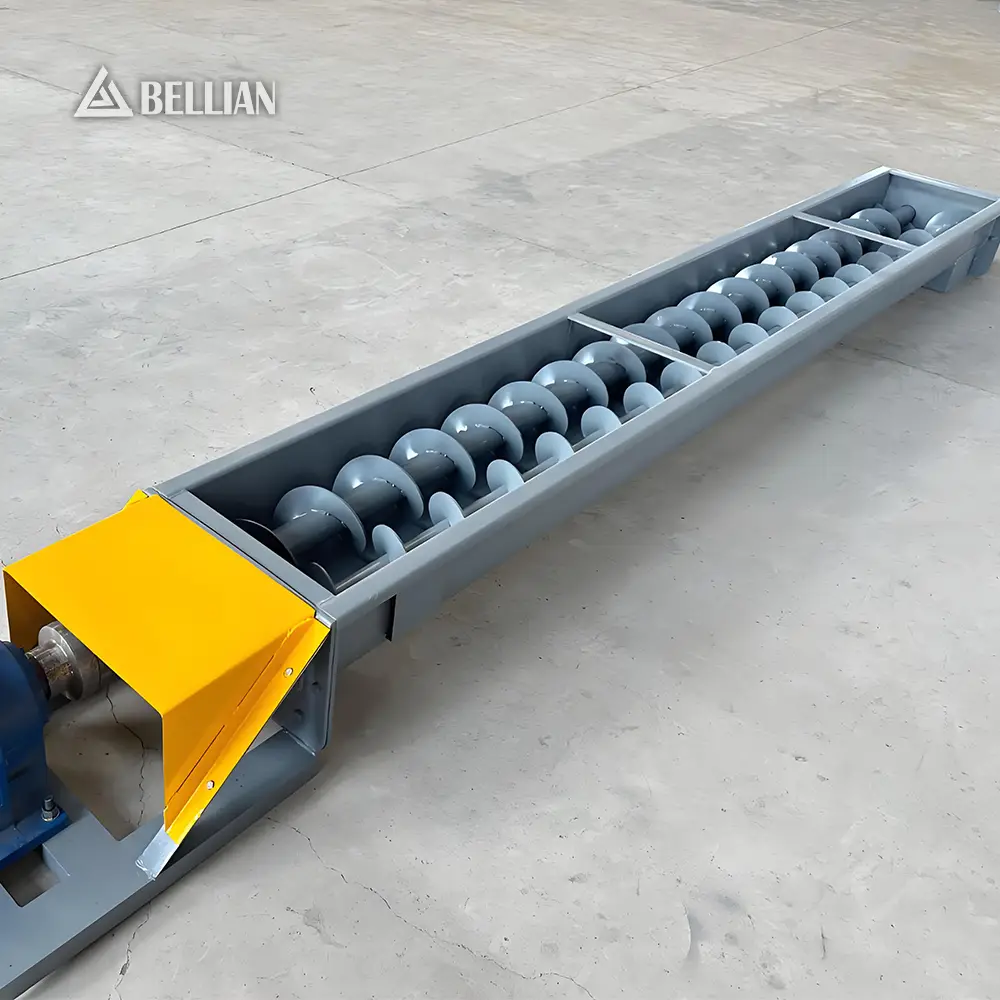

The screw conveyor mainly consists of casing, screw shaft, bearing, driving device and inlet/outlet. The screw shaft is equipped with spiral blades. When the machine works, the driving device drives the screw shaft to rotate. The materials are pushed forward by the spiral blades along the casing. The rotation of the screw shaft makes the materials move forward under the action of friction and centrifugal force. The whole transportation process is closed, no dust leakage.
Performance Features
Sealed casing design, no dust leakage, environmental protection and clean
Compact structure, small floor area, easy to install in narrow spaces
Can be installed horizontally or inclined (maximum 20°), flexible layout
Simple structure, reliable operation, easy maintenance, low operation cost

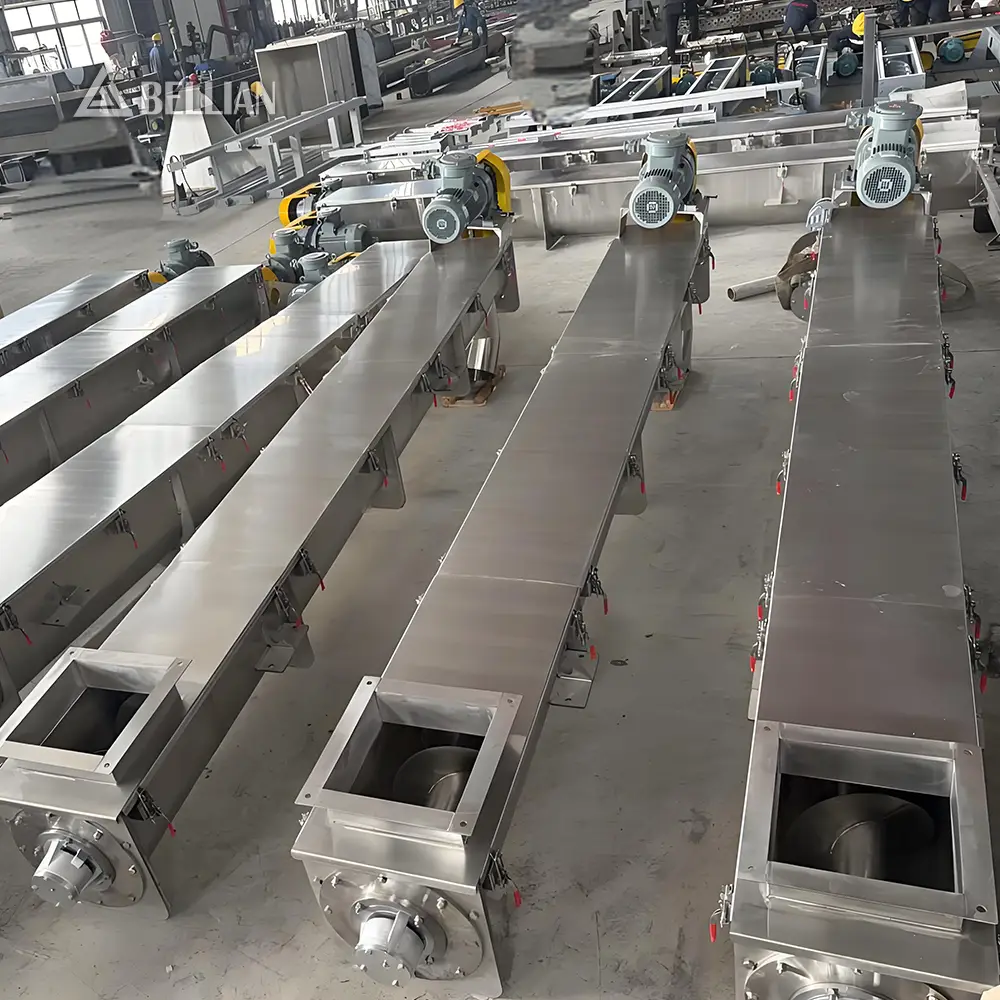

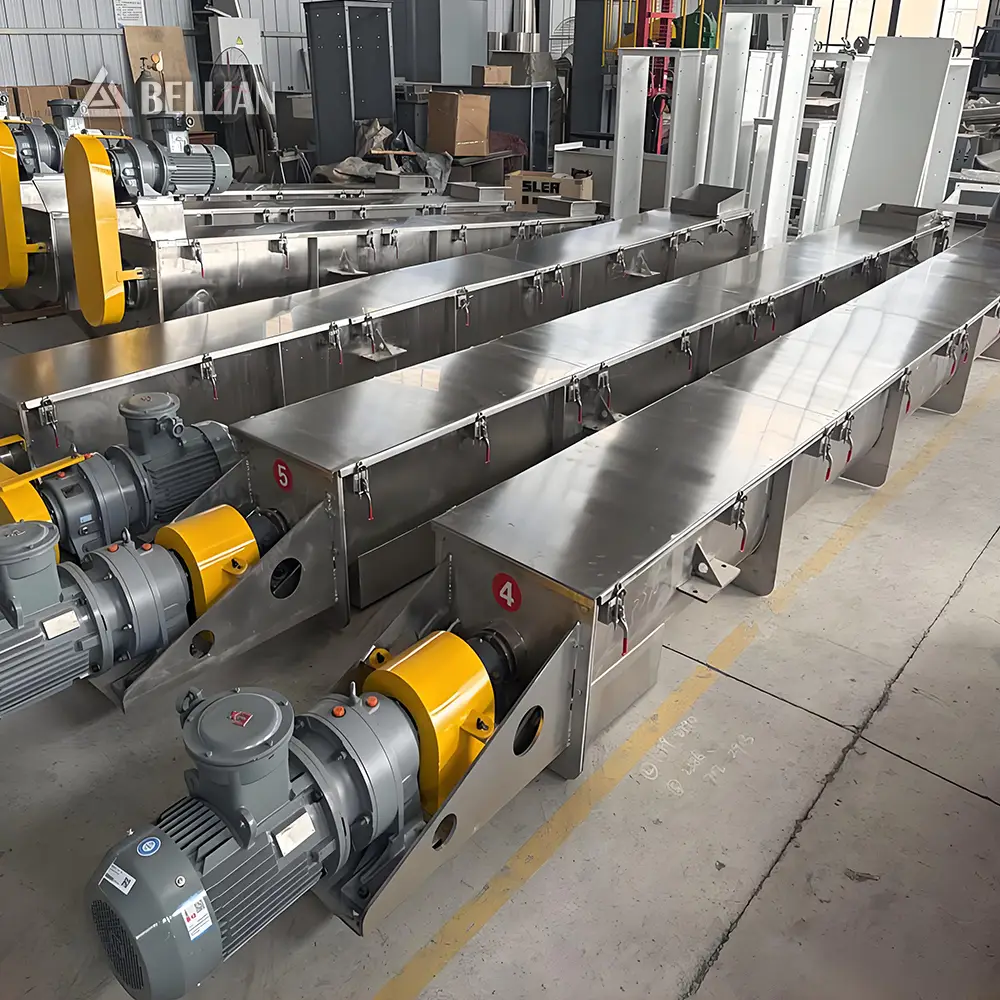

Can be made of carbon steel or stainless steel according to different material requirements
Multiple inlet and outlet ports can be set according to process requirements
Technical Specifications
| Model & Specification | Diameter (mm) | Pitch (mm) | Speed (r/min) | Capacity (m³/h) | Speed (r/min) | Capacity (m³/h) | Speed (r/min) | Capacity (m³/h) | Speed (r/min) | Capacity (m³/h) | |
| D | S | n | φ＝0.33 | n | φ＝0.33 | n | φ＝0.33 | n | φ＝0.33 | ||
| Small | LS100 | 100 | 100 | 140 | 2.2 | 112 | 1.7 | 90 | 1.4 | 71 | 1.1 |
| LS125 | 125 | 125 | 125 | 3.8 | 100 | 3 | 80 | 2.4 | 63 | 1.9 | |
| LS160 | 160 | 160 | 112 | 7.1 | 90 | 5.7 | 71 | 4.5 | 56 | 3.6 | |
| LS200 | 200 | 200 | 100 | 12.4 | 80 | 9.9 | 63 | 7.8 | 50 | 6.2 | |
| Medium | LS250 | 250 | 250 | 90 | 21.8 | 71 | 17.2 | 56 | 13.6 | 45 | 10.9 |
| LS315 | 315 | 315 | 80 | 38.8 | 63 | 30.5 | 50 | 24.2 | 40 | 13.4 | |
| LS400 | 400 | 355 | 71 | 62.5 | 56 | 49.3 | 45 | 38.6 | 36 | 31.7 | |
| Large | LS500 | 500 | 400 | 63 | 97.7 | 50 | 77.6 | 40 | 62 | 32 | 49.6 |
| LS630 | 630 | 450 | 50 | 138.5 | 40 | 110.8 | 32 | 88.6 | 25 | 69.3 | |
| LS800 | 800 | 500 | 40 | 198.5 | 40 | 110.8 | 32 | 88.6 | 25 | 69.3 | |
| Extra Large | LS1000 | 1000 | 560 | 32 | 277.9 | 25 | 217.1 | 20 | 173.7 | 16 | 139 |
| LS1250 | 1250 | 630 | 25 | 381.7 | 20 | 305.4 | 16 | 244.3 | 13 | 198.5 | |

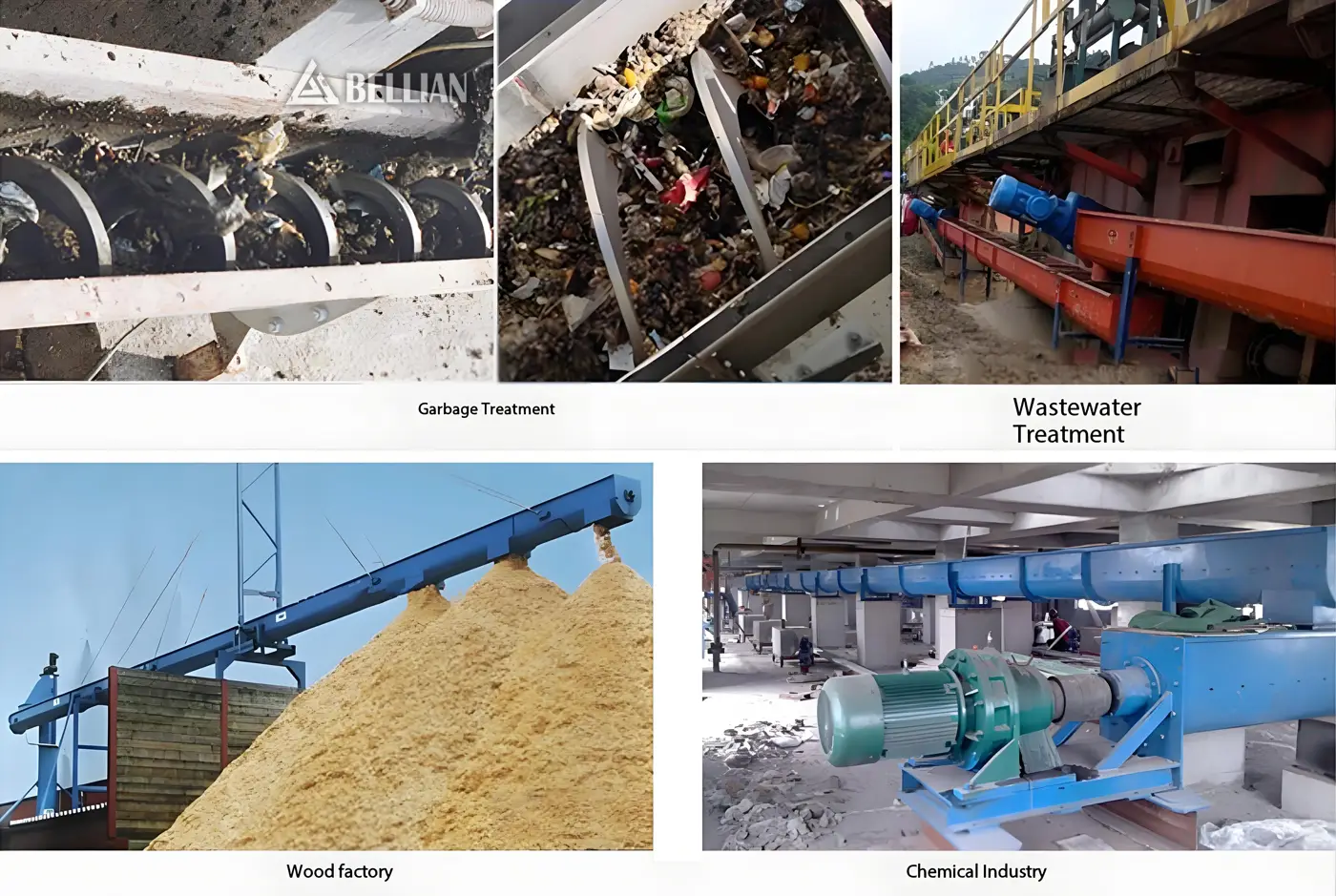

Application Scenarios
Widely used in cement plants, chemical plants, grain depots, power plants, food processing plants and other industries. Suitable for transporting various powdery, granular and small block materials such as cement powder, coal powder, grain, sand, chemical powder, etc. It is not suitable for transporting viscous, easily caking or large block materials.
Buying Guide
When choosing a screw conveyor, you should consider: 1. The type and properties of materials; 2. The required transportation capacity; 3. The transportation distance and inclination; 4. The material requirements (carbon steel or stainless steel). We will recommend the most suitable model according to your specific requirements.
FAQ
What is the maximum inclination of the screw conveyor?
The maximum inclination of the general screw conveyor is 20°. For larger inclination, we can provide special design with increased pitch and modified blades.
Can the screw conveyor transport wet materials?
Yes, the screw conveyor can transport wet materials with moisture content below 30%. However, it is not suitable for transporting highly viscous or easily caking materials, which may cause blockage.
Do you provide stainless steel screw conveyor?
Yes, we can provide stainless steel screw conveyor for food, pharmaceutical and chemical industries that require high hygiene standards.
How to prevent material blockage?
Our screw conveyor is designed with reasonable pitch and blade clearance. We also provide overload protection device to prevent motor damage caused by blockage. Regular cleaning and maintenance can also effectively prevent blockage.
